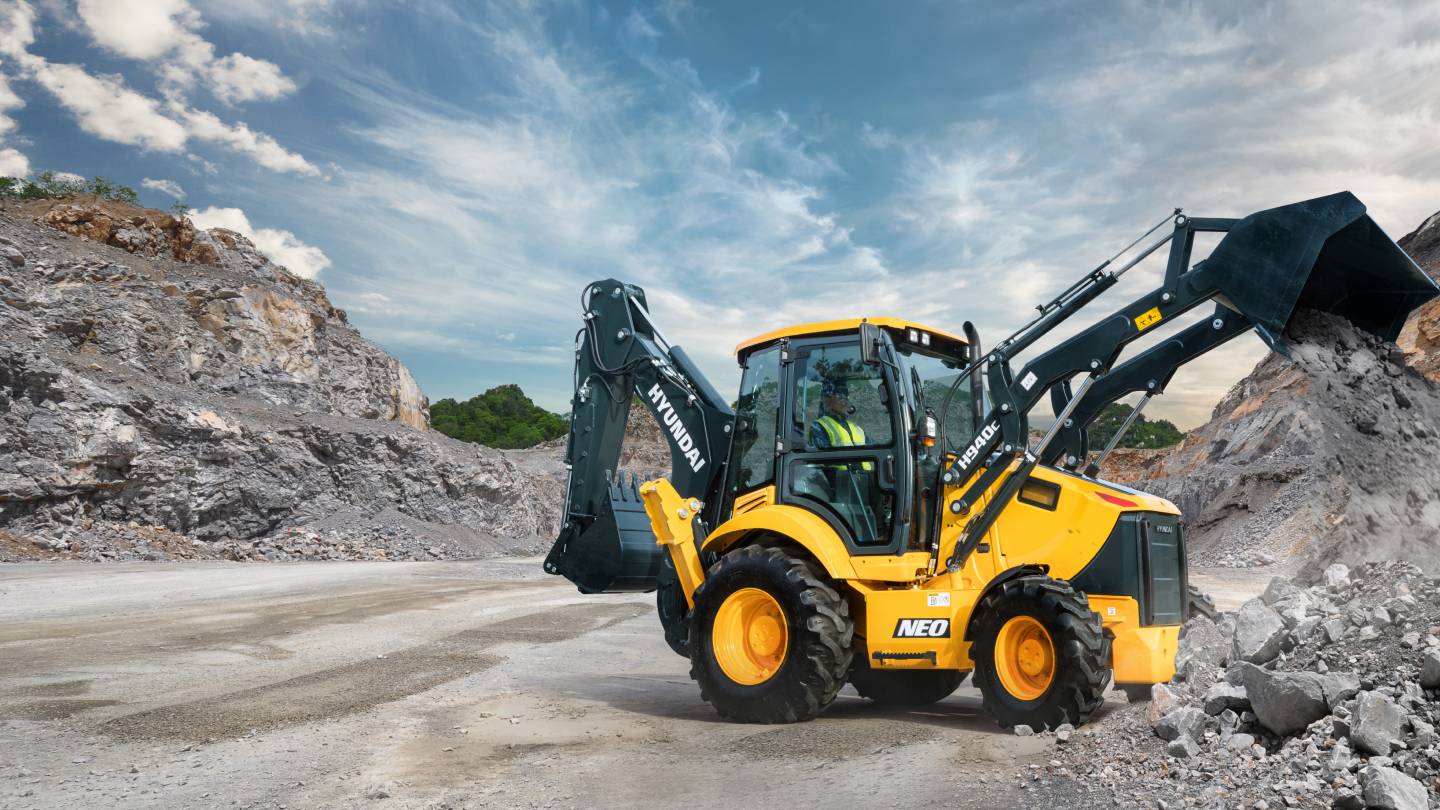

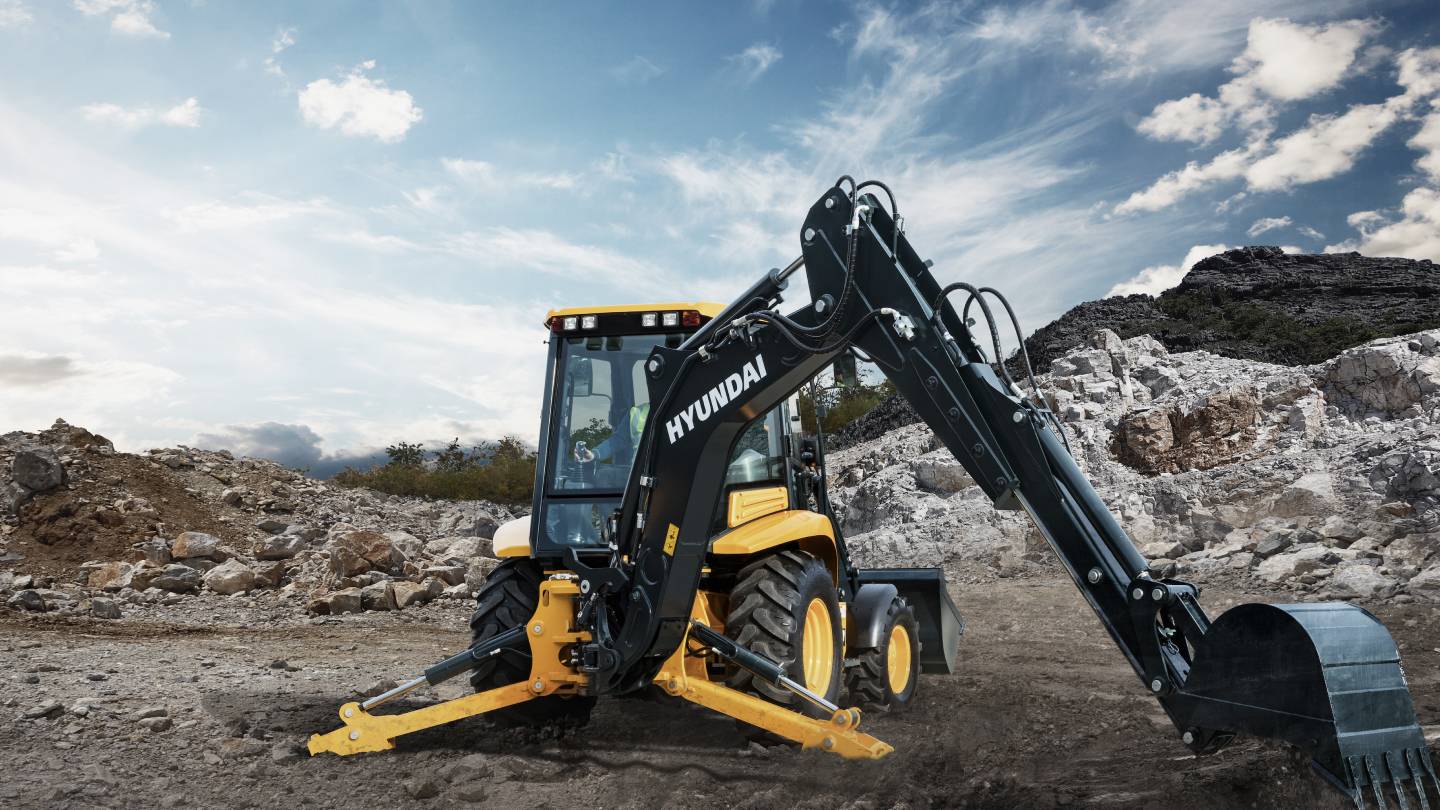

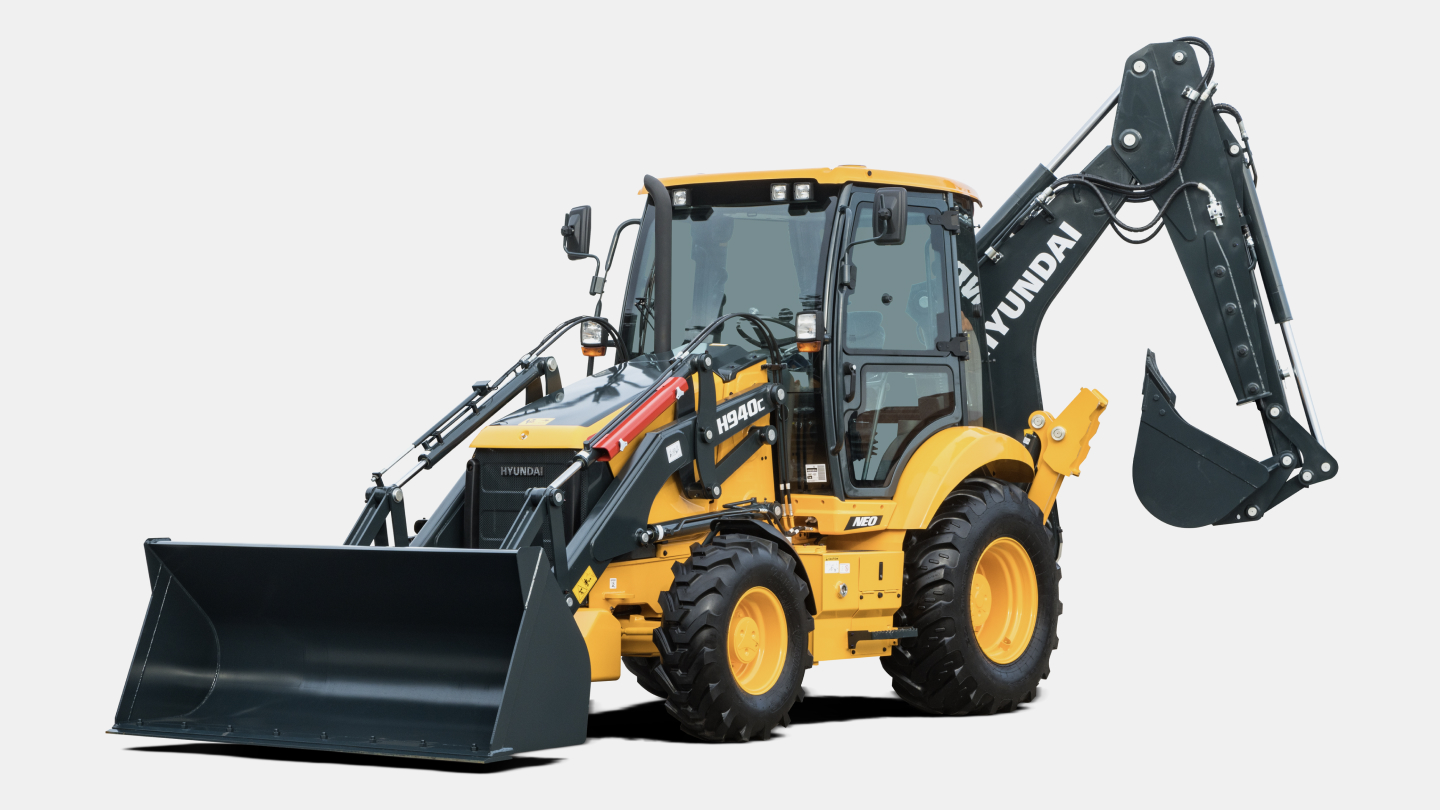

H940C
-
Stabilizer Legs
Center Pivot
-
Loader Bucket Capacity
0.8 m³
-
Emission
TIER 2
-
Rated Power
100 hp / 2,200 rpm
- Catalog
3D View
This 3D image is for illustrative purposes only and may not represent the actual product.
Specifications
-
General
Operating Weight
7.44 ton
Stabilizer Legs
Center Pivot
Backhoe Bucket Capacity
0.2 m³
Loader Bucket Capacity
0.8 m³
-
Engine
Emission
TIER 2
Engine model
Perkins 1104C-44T
Rated Power
100 hp / 2,200 rpm
Max. Torque
42 kgf·m / 1,350 rpm
-
Hydraulic System
Type
Open center
-
Tank Capacity
Fuel tank
127 ℓ
Engine Oil
8 ℓ
Hydraulic tank
50 ℓ
-
Dimensions
Overall Length
7,080 mm
Ground clearance
355 mm
Wheelbase
2,200 mm
-
Tire
Front Tires (STD)
11L-16SL,12PR (2WD)
Rear Tires (STD)
19.5-24,12PR
-
Performance
Travel speed (forward, Maximum)
34 km/h
Travel speed (Reverse, Maximum)
19 km/h
-
Operating Range
Backhoe Digging Height at Maximum
5,500 mm
Backhoe Digging Reach at Maximum
5,830 mm
Backhoe Dumping Height at Maximum
3,585 mm
Loader Hinge Pin Height at Maximum Lift
3,450 mm
Loader Dump Clearance at Maximum lift and 45˚ Discharge
2,710 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
