Excavators

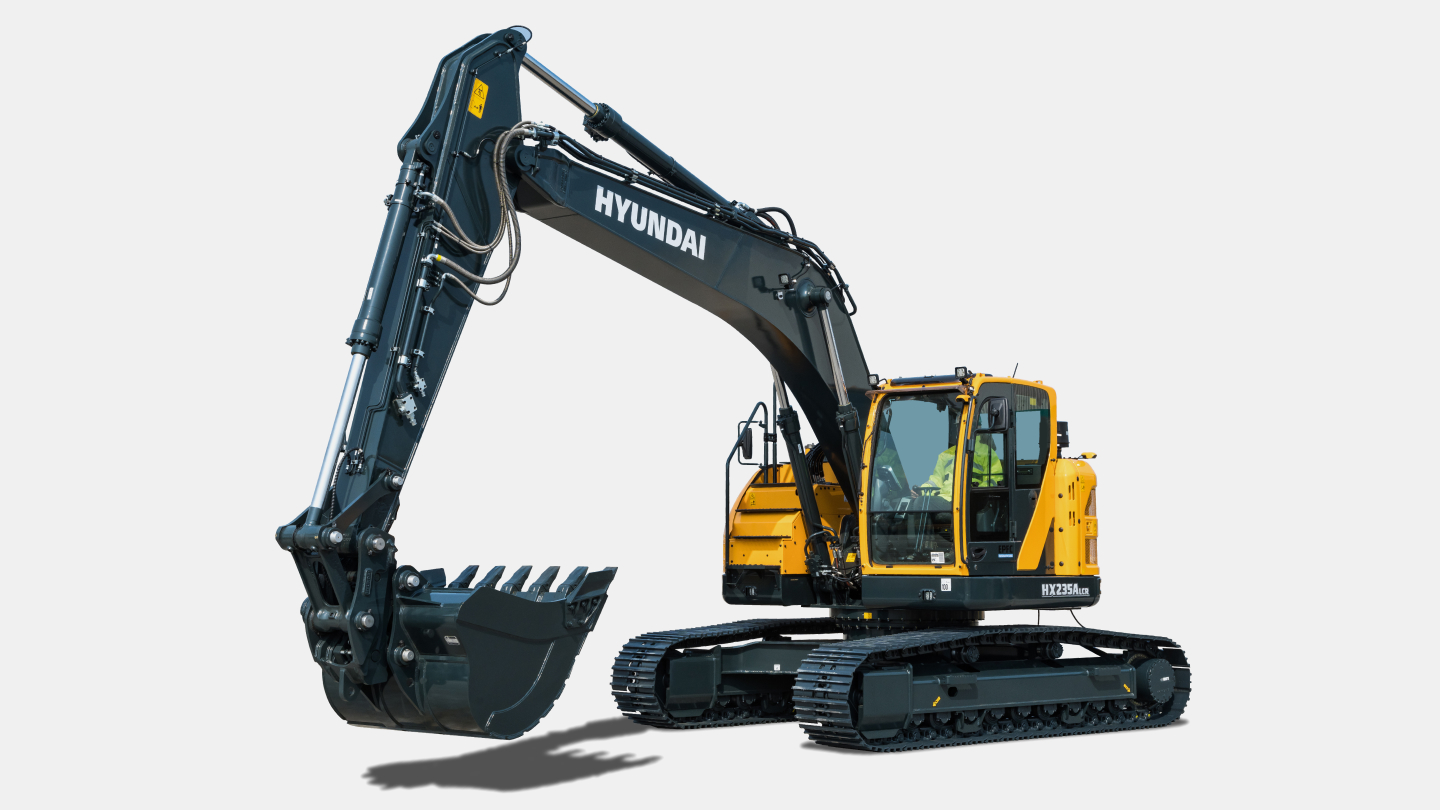

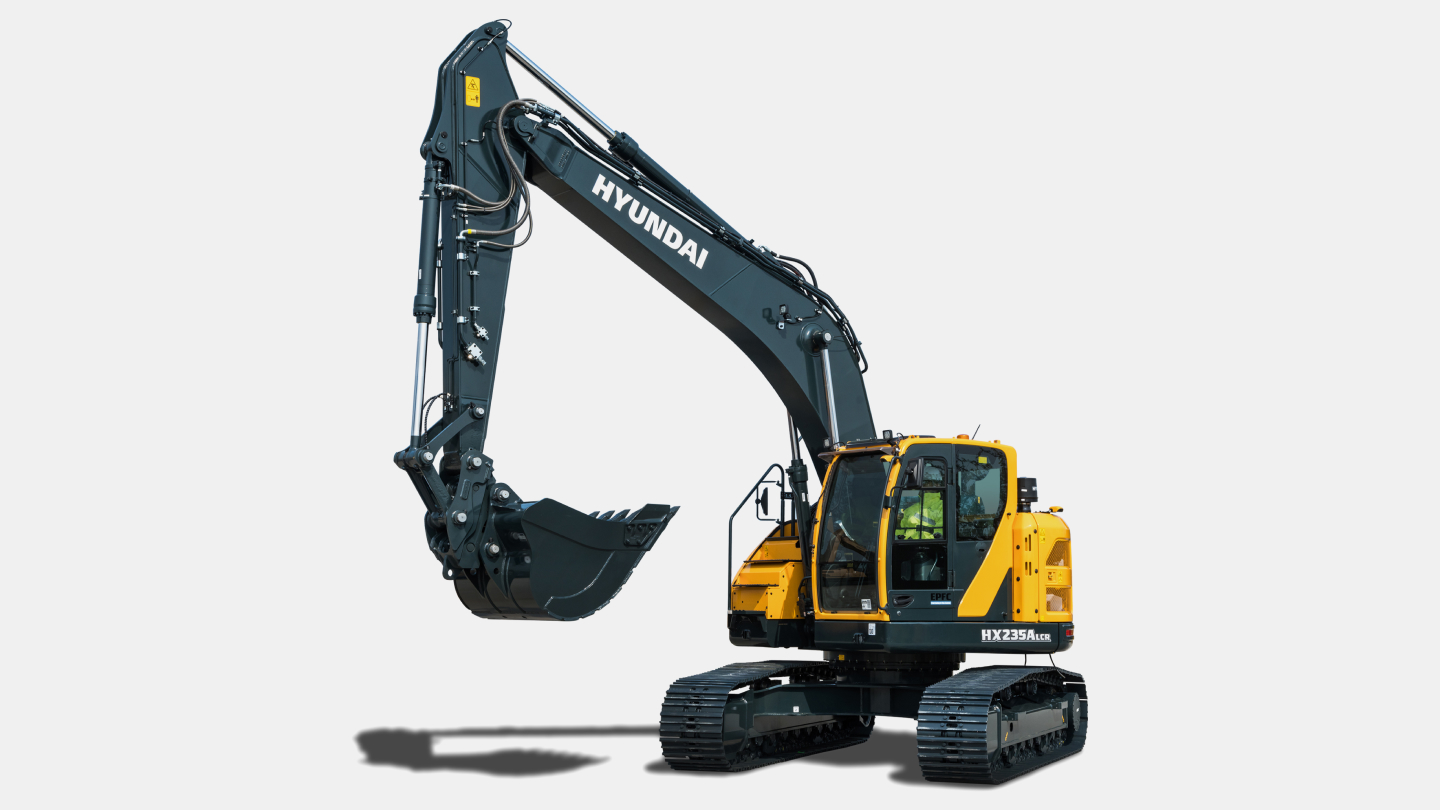

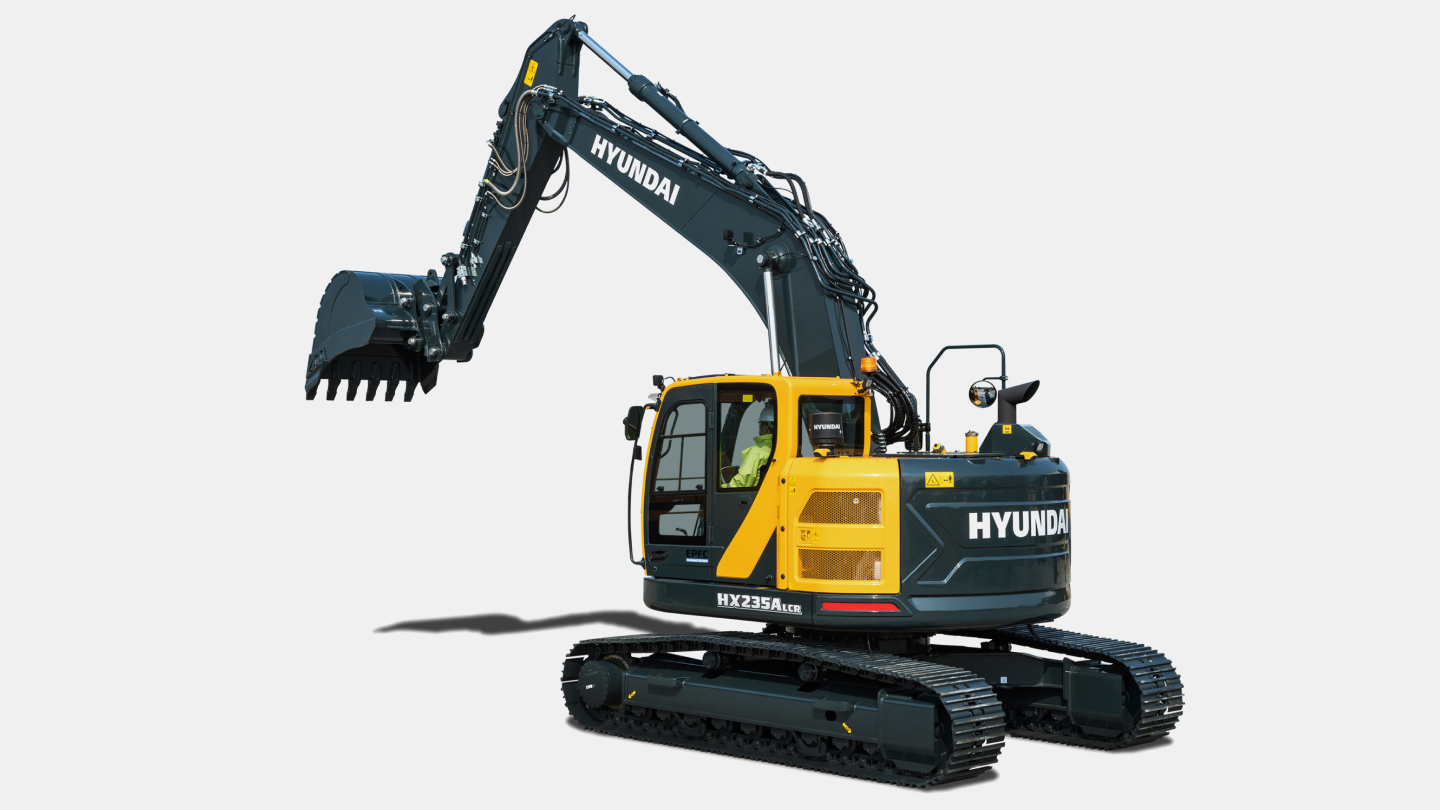

HX235A LCR
-
Type
Medium Excavators
-
Operating Weight
24 ton
-
Emission
STAGE V
-
Rated Power
173 hp / 2,200 rpm
- Catalog
Specifications
-
General
Type
Medium Excavators
Operating Weight
24 ton
Bucket Capacity
0.8 m³
-
Engine
Emission
STAGE V
Engine model
CUMMINS B6.7
Rated Power
173 hp / 2,200 rpm
Max. Torque
90 kgf·m / 1,300 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x221 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
320 ℓ
Hydraulic Tank
160 ℓ
DEF/ ADBLUE Tank
48 ℓ
-
Performance
Swing Speed
11.3 rpm
Travel Speed
5.6 km/h
Max. Traction Force
22,200 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
16,830 kgf
Arm Digging Force (ISO)
11,830 kgf
-
Dimensions
Overall Length
8,910 mm
Overall Width
3,190 mm
Overall Height
3,290 mm
Tail Swing Radius
1,780 mm
Tumbler Distance
3,650 mm
Ground Clearance
470 mm
-
Operating Range
Boom Length
5,680 mm
Arm Length
2,920 mm
Max. Digging Reach
9,910 mm
Max. Digging Depth
6,670 mm
Max. Digging Height
10,820 mm
Max. Dumping Height
7,900 mm
Min. Swing Radius
2,350 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
