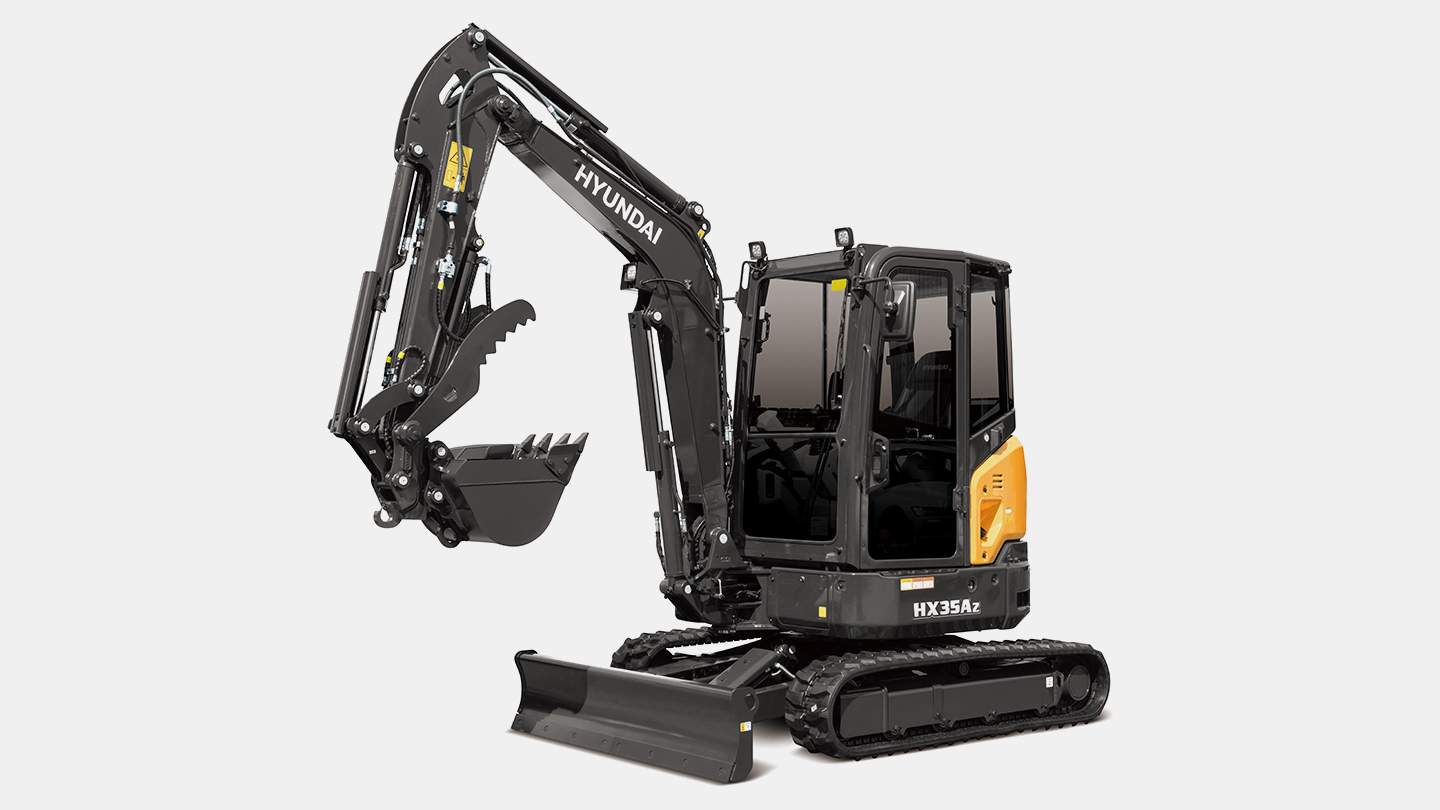

HX35AZ

  • Type

    Compact Excavators

  • Operating Weight

    3.880  ton

  • Emission

    STAGE V

  • Rated Power

    24.8  hp / 2,300 rpm

  • Catalog

3D View
This 3D image is for illustrative purposes only and may not represent the actual product.

Click on the screen to see the product in a 360° view.

Specifications

  • General

    Type

    Compact Excavators

    Operating Weight

    3.880  ton

    Bucket Capacity

    0.11  m³

  • Engine

    Emission

    STAGE V

    Engine model

    D1703

    Rated Power

    24.8  hp / 2,300 rpm

    Max. Torque

    9.9  kgf·m / - rpm

  • Hydraulic System

    Main Pumps Rated Flow

    2 x 37.4(9.7) + 23.1(6.1)  ℓ/min

    Implement Circuit

    230  kgf/cm²

  • Tank Capacity

    Fuel Tank

    46.8  ℓ

    Hydraulic Tank

    36  ℓ

  • Performance

    Swing Speed

    9.4  rpm

    Travel Speed

    2.6  km/h

    Max. Traction Force

    3,039  kgf

    Bucket Digging Force (ISO)

    3,281  kgf

    Arm Digging Force (ISO)

    2,025  kgf

  • Dimensions

    Overall Length

    4,783  mm

    Overall Width

    1,740  mm

    Overall Height

    2,505  mm

    Ground Clearance

    167  mm

  • Operating Range

    Boom Length

    2,400  mm

    Arm Length

    1,300  mm

    Max. Digging Reach

    5,290  mm

    Max. Digging Depth

    2,980  mm

    Max. Digging Height

    4,820  mm

    Max. Dumping Height

    3,415  mm

    Min. Swing Radius

    900  mm

- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
