Excavators

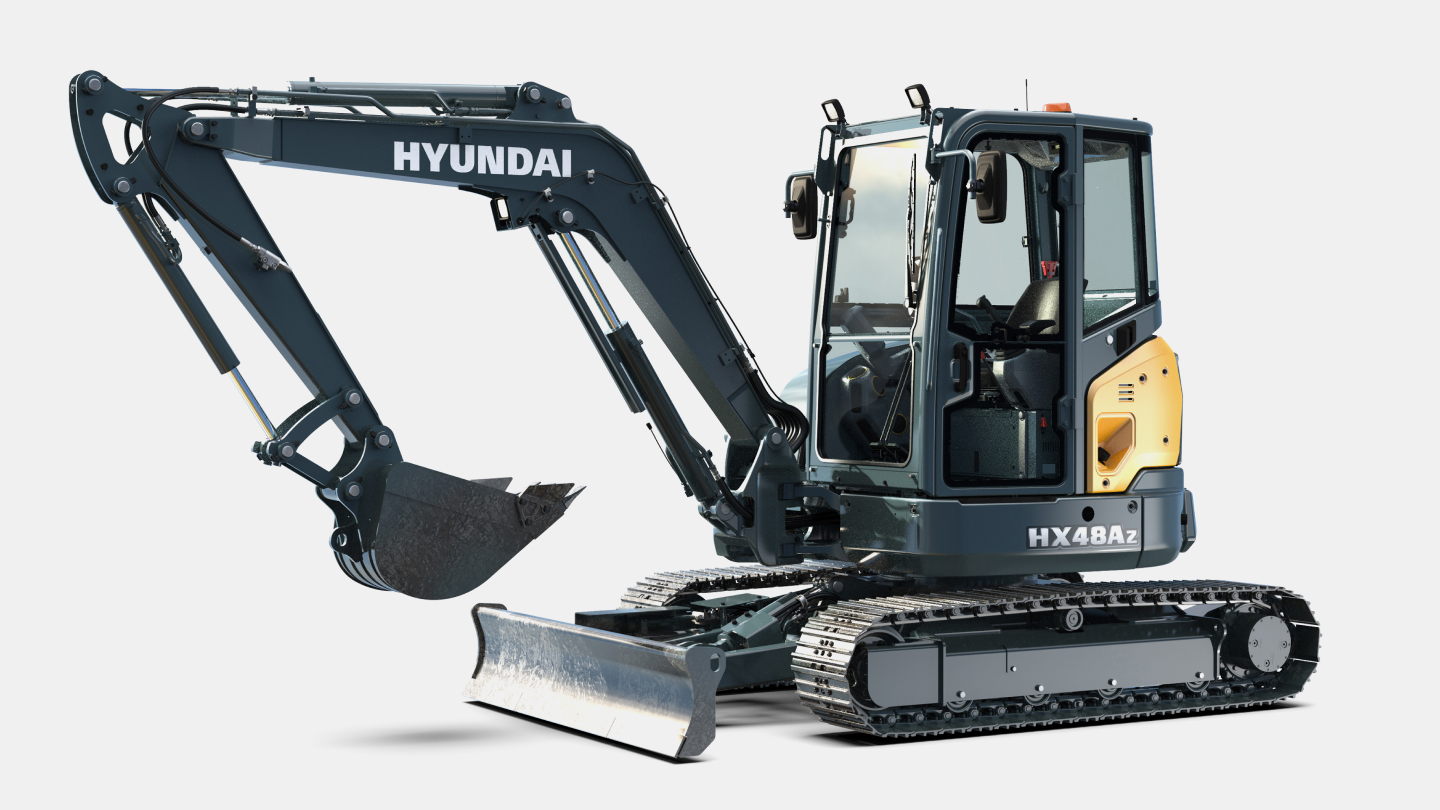

HX48AZ
-
Type
Compact Excavators
-
Operating Weight
5.030 ton
-
Emission
STAGE V
-
Rated Power
39 hp / 2,200 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
5.030 ton
Bucket Capacity
0.15 m³
-
Engine
Emission
STAGE V
Engine model
4TNV88C
Rated Power
39 hp / 2,200 rpm
Max. Torque
14.775688 kgf·m / . rpm
-
Hydraulic System
Main Pumps Rated Flow
121 ℓ/min
Implement Circuit
254 kgf/cm²
-
Tank Capacity
Fuel Tank
6,638 ℓ
Hydraulic Tank
44 ℓ
-
Performance
Swing Speed
10.1 rpm
Travel Speed
2.8 km/h
Max. Traction Force
4,650 kgf
Bucket Digging Force (ISO)
3,814 kgf
Arm Digging Force (ISO)
2,431 kgf
-
Dimensions
Overall Length
5,493 mm
Overall Width
2,000 mm
Overall Height
2,580 mm
Ground Clearance
215 mm
-
Operating Range
Boom Length
2,800 mm
Arm Length
1,400 mm
Max. Digging Reach
5,990 mm
Max. Digging Depth
3,500 mm
Max. Digging Height
5,570 mm
Max. Dumping Height
3,860 mm
Min. Swing Radius
1,000 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
