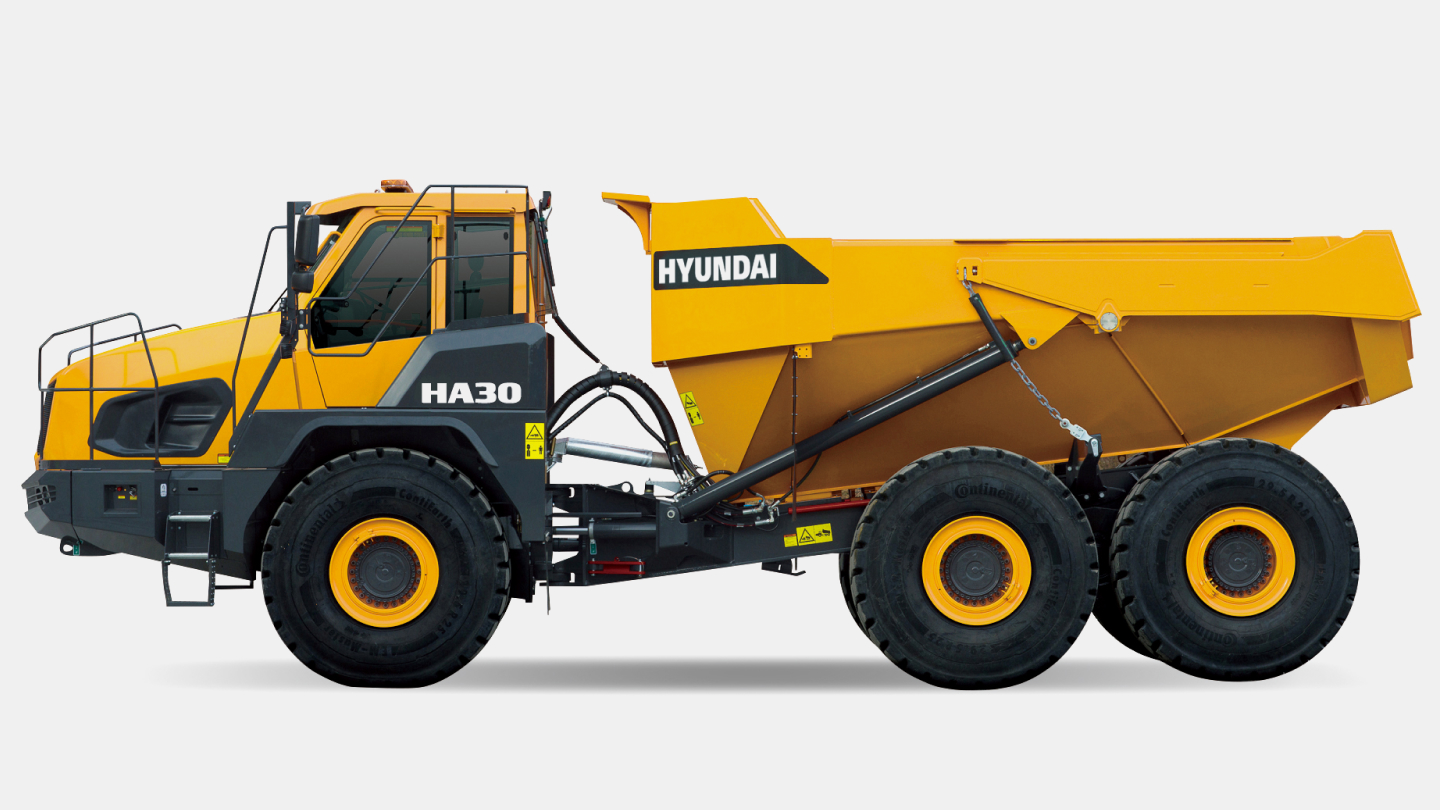

HA30
-
Operating Weight
23.4 ton
-
Rated Payload
28 ton
-
Emission
TIER 4 FINAL
-
Rated Power
375 hp / 2,100 rpm
- Catalog
Specifications
-
General
Type
Articulated Dump Trucks
Operating Weight
23.4 ton
Heaped
17.8 m³
Rated Payload
28 ton
-
Engine
Emission
TIER 4 FINAL
Engine model
Scania DC 9
Rated Power
375 hp / 2,100 rpm
Max. Torque
1,873 kgf·m / 1,300 rpm
-
Hydraulic System
Main pumps rated flow
294 ℓ/min
Implement circuit
285.3 kgf/cm²
-
Tank Capacity
Fuel tank
335 ℓ
Engine Oil
35 ℓ
Hydraulic tank
95 ℓ
-
Performance
Travel speed (forward, Maximum)
55 km/h
Travel speed (Reverse, Maximum)
16 km/h
-
Dimensions
Overall length
95,550 mm
Overall height
3,604 mm
Overall width
3,499 mm
Inner turning radius
3,995 mm
Outer turning radius
8,100 mm
Outer wheel turning radius
8,065 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color. - This product has images of similar models for reference, so there may be slight size differences compared to the actual product.
