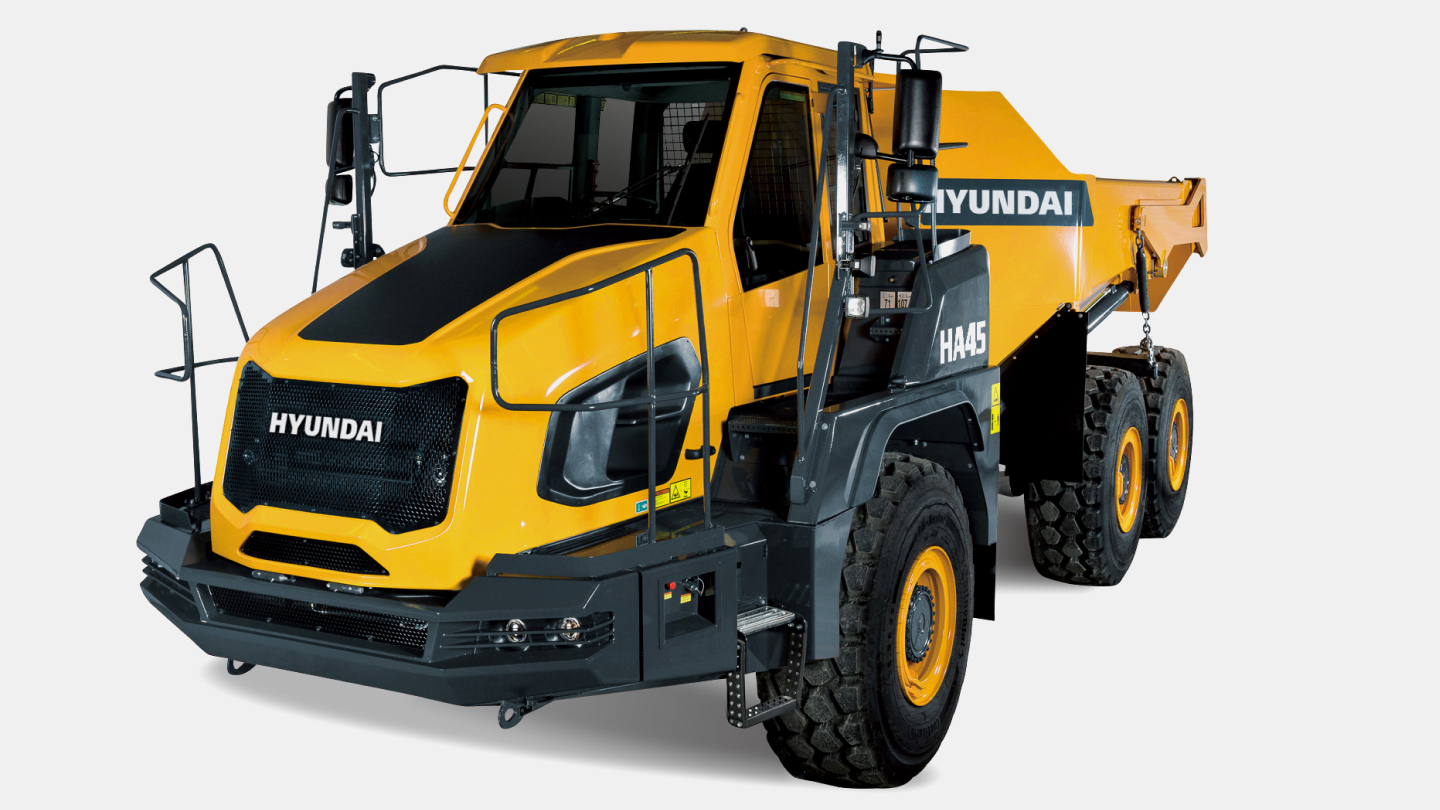

HA45

  • Operating Weight

    30.5  ton

  • Rated Payload

    41  ton

  • Emission

    TIER 4 FINAL

  • Rated Power

    500  hp / 2,100 rpm

  • Catalog

Specifications

  • General

    Type

    Wide-body Dump Trucks

    Operating Weight

    30.5  ton

    Heaped

    26  m³

    Rated Payload

    41  ton

  • Engine

    Emission

    TIER 4 FINAL

    Engine model

    Scania DC 13

    Rated Power

    500  hp / 2,100 rpm

    Max. Torque

    2,373  kgf·m / 1,300 rpm

  • Hydraulic System

    Main pumps rated flow

    294  ℓ/min

    Implement circuit

    285.3  kgf/cm²

  • Tank Capacity

    Fuel tank

    530  ℓ

    Engine Oil

    45  ℓ

    Hydraulic tank

    100  ℓ

  • Performance

    Travel speed (forward, Maximum)

    55  km/h

    Travel speed (Reverse, Maximum)

    17  km/h

  • Dimensions

    Overall length

    10,673  mm

    Overall height

    3,850  mm

    Overall width

    3,990  mm

    Inner turning radius

    4,215  mm

    Outer turning radius

    8,920  mm

    Outer wheel turning radius

    8,880  mm

- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
