Specifications

• General

  Type

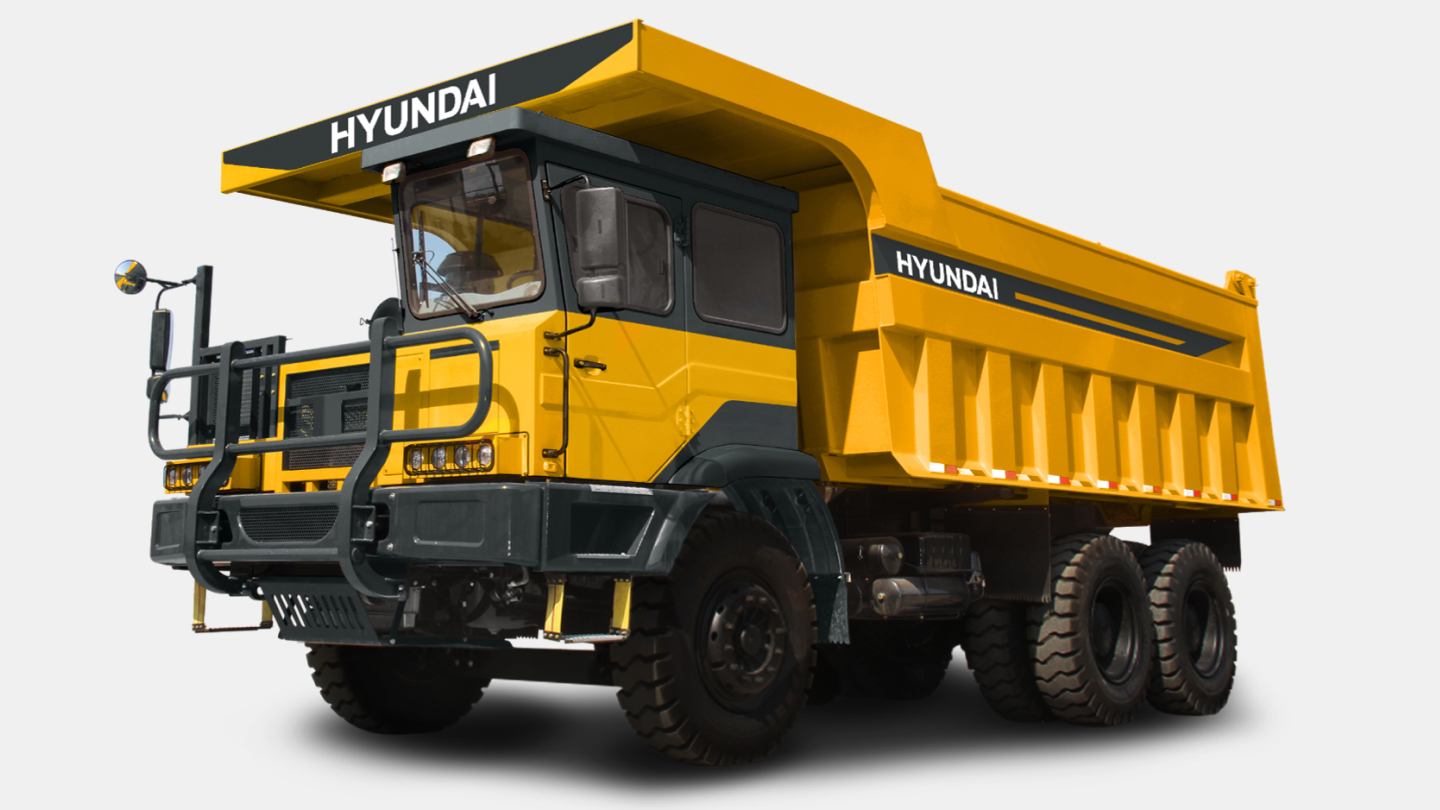

  Wide-body Dump Trucks

  Operating Weight

  30  ton

  66138.69  lb

  Heaped

  37  m³

  48.38  yd³

  Rated Payload

  60  ton

  132277.38  lb

• Engine

  Emission

  TIER 3

  Engine model

  Weichai 530 horse power

  Weichai 530 horse power

  Rated Power

  530  hp / 2,100 rpm

  394.85  kw / 2,100 rpm

  Max. Torque

  204  kgf·m / 2,300 rpm

  1475.06  lbf.ft / 2,300 rpm

• Hydraulic System

  Main pumps rated flow

  250  ℓ/min

  66.09  gal/min

  Implement circuit

  255  kgf/cm²

  3626.97  psi

• Tank Capacity

  Fuel tank

  500  ℓ

  132.19  gal

  Engine Oil

  27  ℓ

  7.14  gal

  Hydraulic tank

  200  ℓ

  52.88  gal

• Performance

  Travel speed (forward, Maximum)

  49  km/h

  30.45  mph

  Travel speed (Reverse, Maximum)

  7.5  km/h

  4.66  mph

• Dimensions

  Overall length

  9,680  mm

  31'9"  ft.in

  Overall height

  3,770  mm

  12'4"  ft.in

  Overall width

  3,750  mm

  12'4"  ft.in

  Inner turning radius

  9,500  mm

  31'2"  ft.in

  Outer turning radius

  13,500  mm

  44'3"  ft.in

  Outer wheel turning radius

  12,400  mm

  40'8"  ft.in
