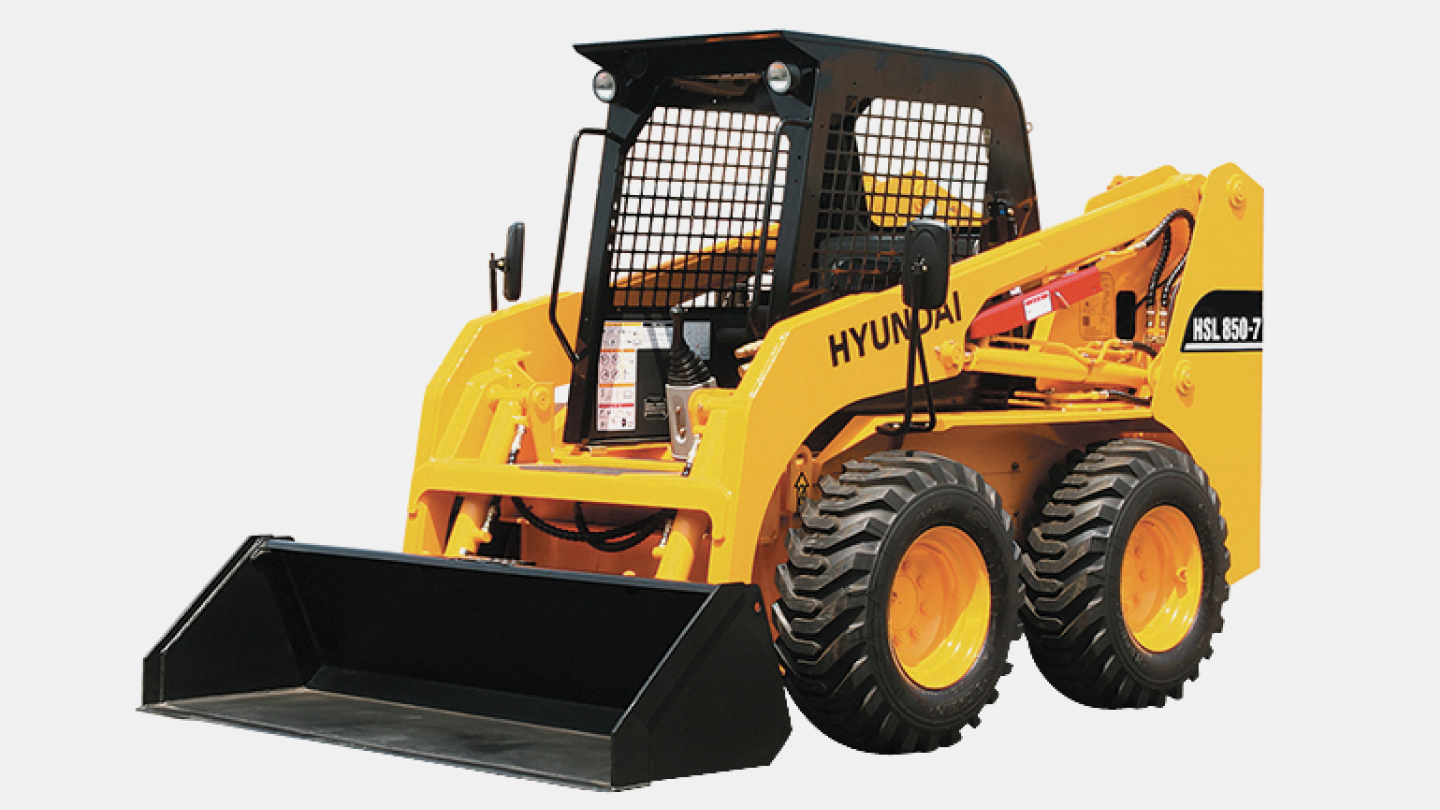

HSL850-7
-
Type
Skid Steer Loaders
-
Rated Operating Capacity
840 kg
(50% Tipping Load)
-
Emission
~TIER 2
-
Rated Power
37.2 kW / 2,400 rpm
-
Lift Arm Path
Radial Lift Path
- Catalog
Specifications
-
General
Type
Skid Steer Loaders
Operating Weight
3,290 kg
Rated Operating Capacity
840 kg (50% Tipping Load)
-
Engine
Emission
~TIER 2
Engine model
Kubota V3300DI
Rated Power
37.2 kW / 2,400 rpm
Max. Torque
24 kgf·m / 1,400 rpm
-
Hydraulic System
Hydraulic Flow Rate
67 ℓ/min
Hydraulic Pressure
178.42 kgf/cm²
-
Tank Capacity
Fuel tank
83 ℓ
Engine Oil
13.2 ℓ
Hydraulic tank
57 ℓ
-
Performance
Tipping Load
1,685 kg
Lift Arm Path
Radial Lift Path
-
Dimensions
Overall Length
3,470 mm
Overall Width
1,894 mm
Overall Height
2,000 mm
Ground clearance
205 mm
Wheelbase
1,100 mm
-
Power Train / Undercarriage
Travel speed (1-Speed)
11.6 km/h
Tires Type
12-16.5,12PR
-
Operating Range
Hinge Pin Height at Maximum Lift
3,080 mm
Reach at Maximum Lift
510 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
