Special Equipments

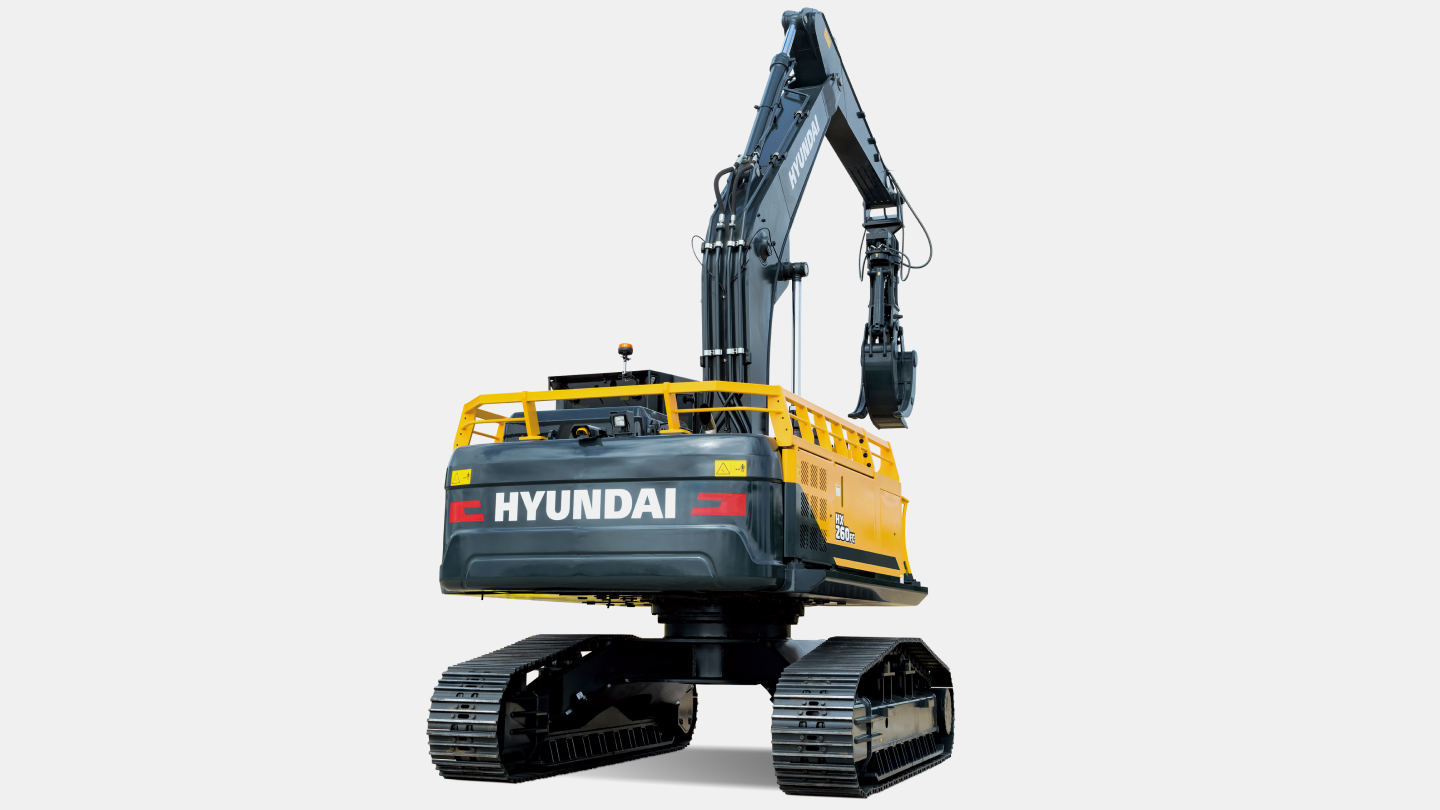

HX350FC
-
Type
Others
-
Operating Weight
37.8 ton
-
Emission
TIER 3
-
Rated Power
280 hp / 2,200 rpm
- Catalog
Specifications
-
General
Type
Others
Operating Weight
37.8 ton
-
Engine
Emission
TIER 3
Engine model
CUMMINS / QSC
Rated Power
280 hp / 2,200 rpm
Max. Torque
138.3 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x297.5 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
600 ℓ
Hydraulic Tank
210 ℓ
DEF/ ADBLUE Tank
- not applied
-
Performance
Swing Speed
10.2 rpm
Travel Speed
6.4 km/h
Max. Traction Force
27,404 kgf
Max. Gradeability
35 deg
-
Dimensions
Overall Length
11,150 mm
Overall Width
3,470 mm
Overall Height
3,440 mm
Tail Swing Radius
3,505 mm
Tumbler Distance
4,030 mm
Ground Clearance
800 mm
-
Operating Range
Boom Length
6,450 mm
Arm Length
3,200 mm
Max. Digging Reach
9,420 mm
Max. Digging Depth
3,620 mm
Max. Digging Height
11,040 mm
Max. Dumping Height
7,260 mm
Min. Swing Radius
4,360 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
