Special Equipments

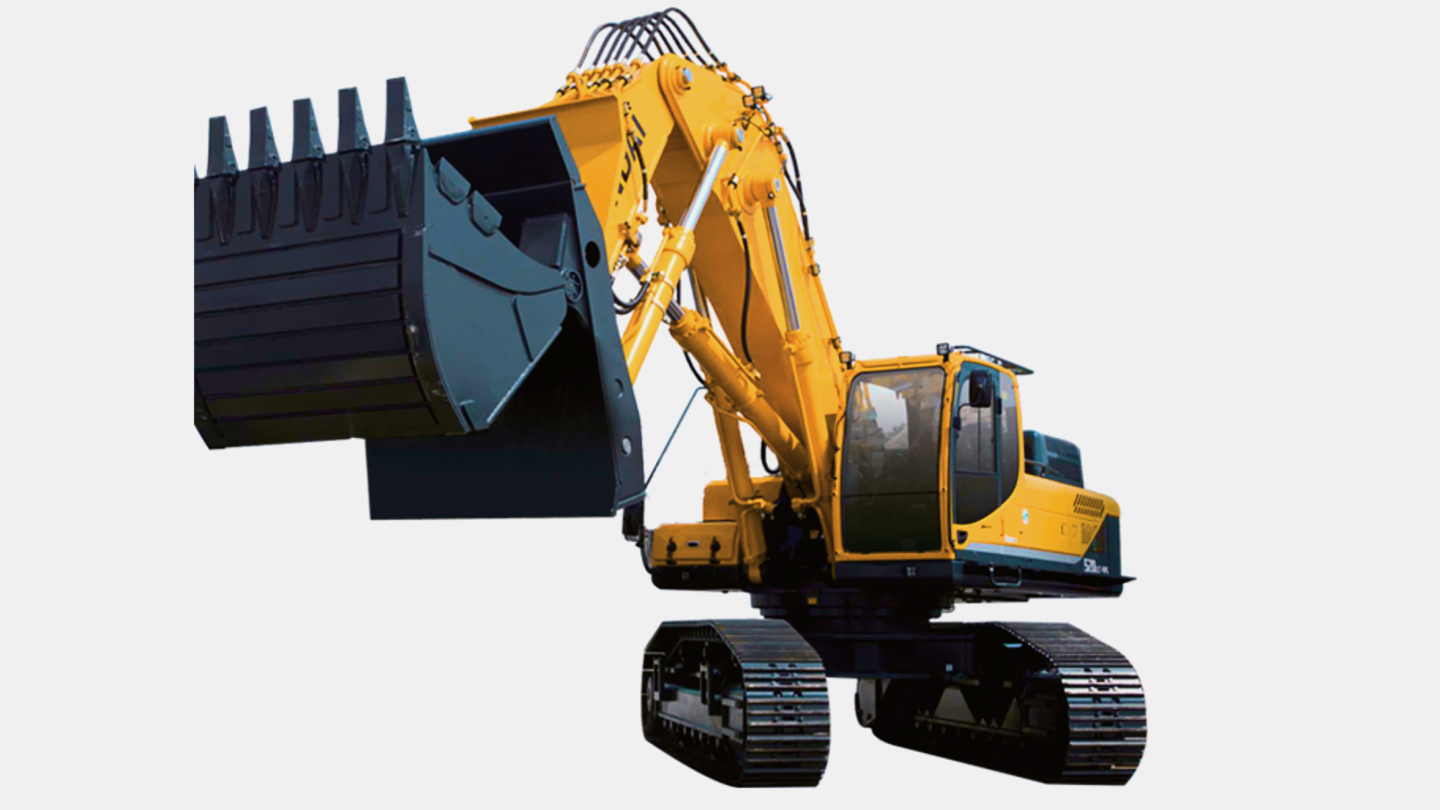

R520LC-9S FS
-
Type
Others
-
Operating Weight
55.5 ton
-
Emission
TIER 2
-
Rated Power
342 hp / 1,900 rpm
- Catalog
Specifications
-
General
Type
Others
Operating Weight
55.5 ton
-
Engine
Emission
TIER 2
Engine model
Cummins QSM11
Rated Power
342 hp / 1,900 rpm
Max. Torque
183 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x380 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
621 ℓ
Hydraulic Tank
262 ℓ
DEF/ ADBLUE Tank
- not applied
-
Performance
Swing Speed
9 rpm
Travel Speed
5 km/h
Max. Traction Force
38,500 kgf
Max. Gradeability
35 deg
-
Dimensions
Overall Length
12,070 mm
Overall Width
3,690 mm
Overall Height
3,540 mm
Tail Swing Radius
3,750 mm
Tumbler Distance
4,470 mm
Ground Clearance
770 mm
-
Operating Range
Boom Length
4,300 mm
Arm Length
2,800 mm
Max. Digging Reach
8,920 mm
Max. Digging Depth
3,990 mm
Max. Digging Height
10,120 mm
Max. Dumping Height
7,260 mm
Min. Swing Radius
4,910 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
