HD Hyundai Construction Equipment's mobile website is optimized for portrait (vertical) view.
Special Equipments

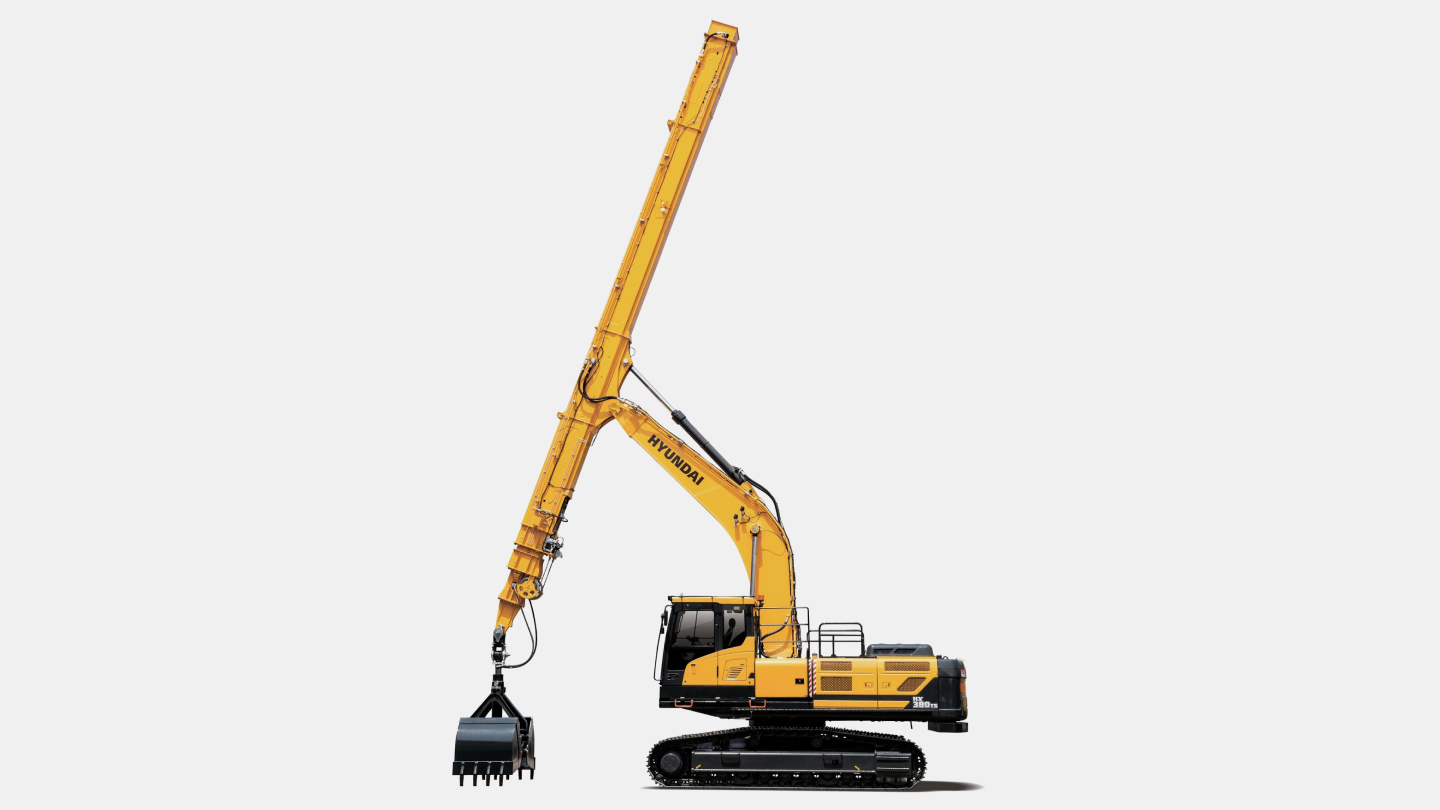

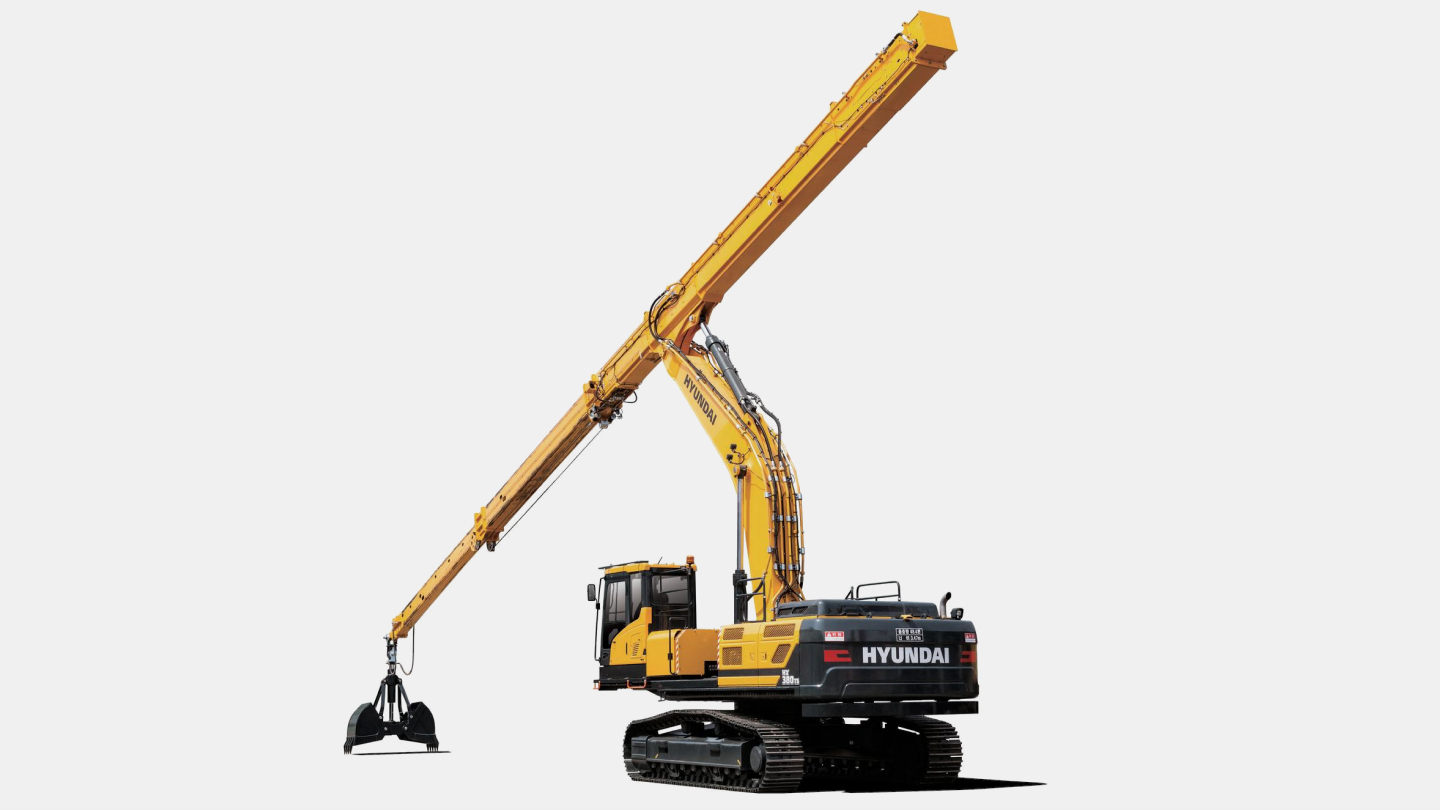

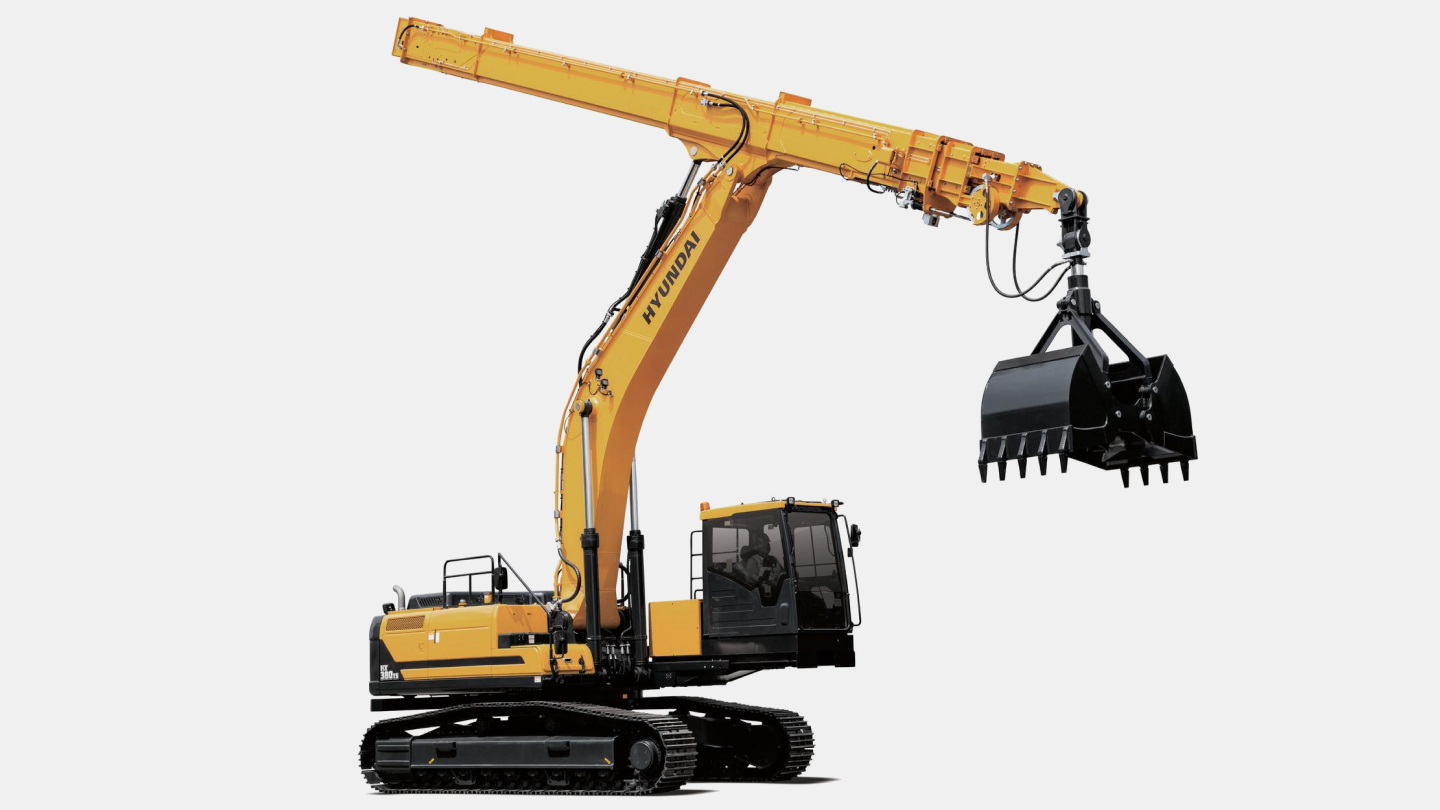

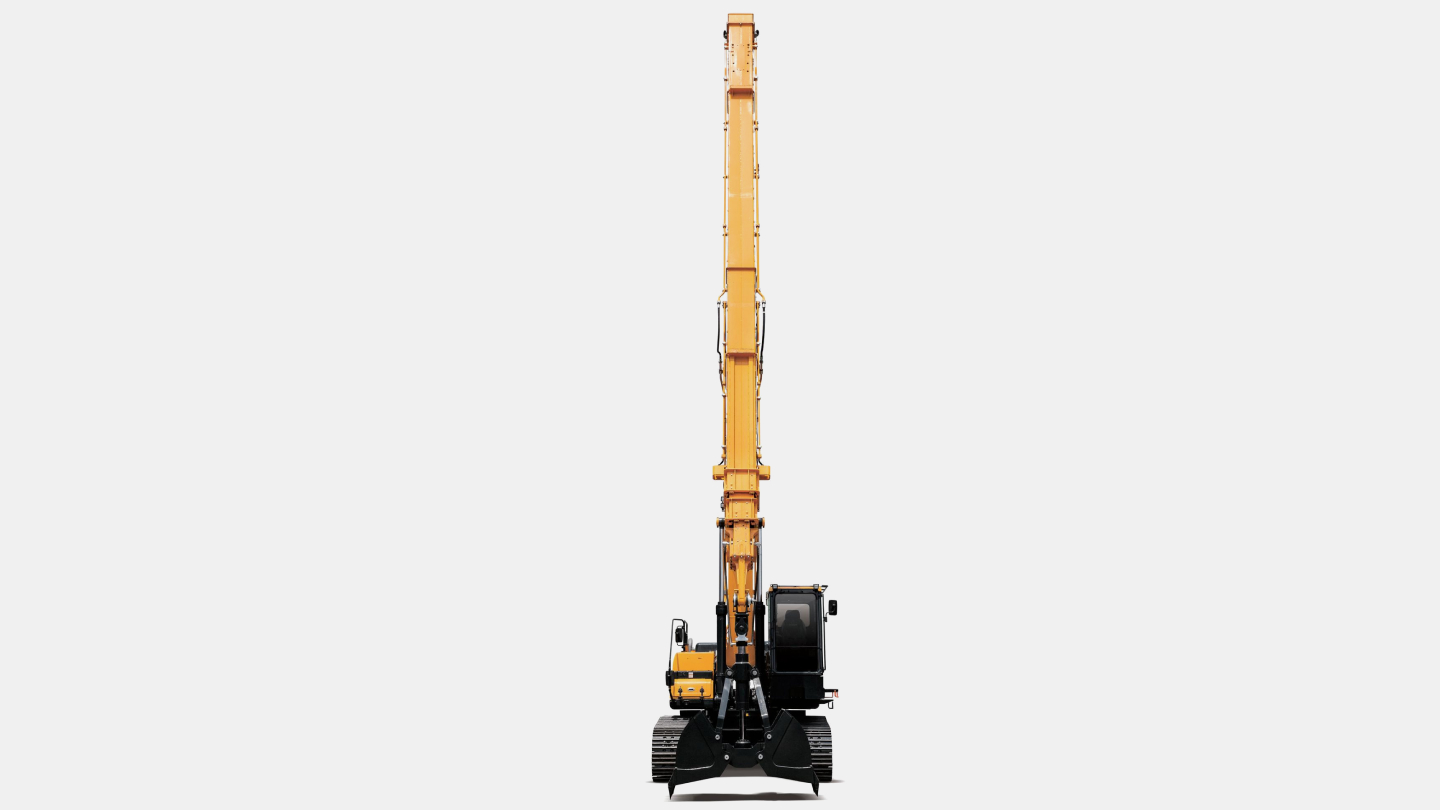

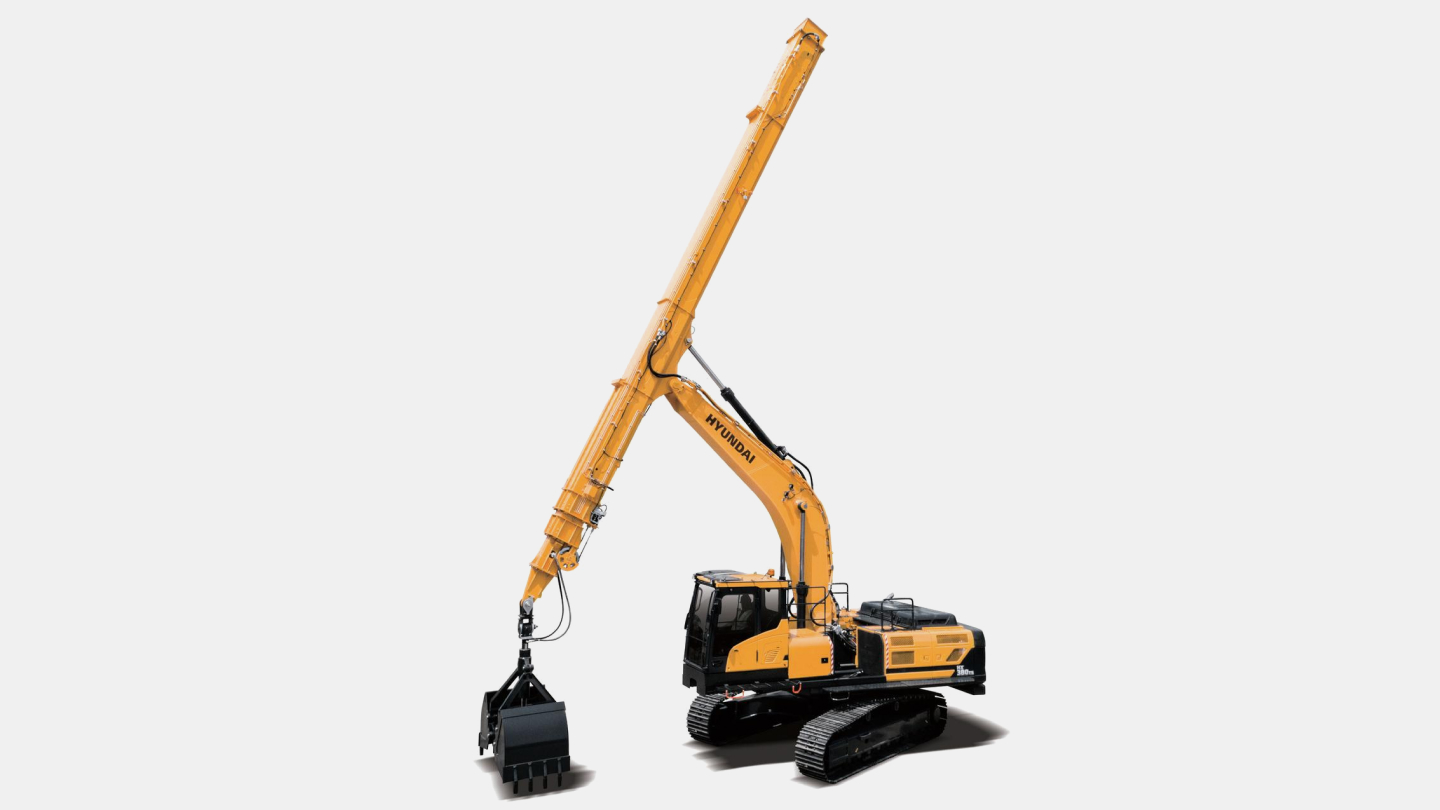

HX380TS
-
Type
Others
-
Operating Weight
48.4 ton
-
Emission
TIER 4 FINAL
-
Rated Power
360 hp / 2,100 rpm
Specifications
-
General
Type
Others
Operating Weight
48.4 ton
-
Engine
Emission
TIER 4 FINAL
Engine model
CUMMINS QSL9
Rated Power
360 hp / 2,100 rpm
Max. Torque
166 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x288.8 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
550 ℓ
Hydraulic Tank
210 ℓ
DEF/ ADBLUE Tank
43 ℓ
-
Performance
Swing Speed
10.2 rpm
Travel Speed
5 km/h
Max. Traction Force
30,500 kgf
Max. Gradeability
35 deg
-
Dimensions
Overall Length
19,800 mm
Overall Width
3,200 mm
Overall Height
3,340 mm
Tail Swing Radius
3,555 mm
Tumbler Distance
4,340 mm
Ground Clearance
550 mm
-
Operating Range
Boom Length
6,500 mm
Arm Length
- 가변
Max. Digging Reach
12,100 mm
Max. Digging Depth
30,000 mm
Max. Dumping Height
5,700 mm
Min. Swing Radius
9,500 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
