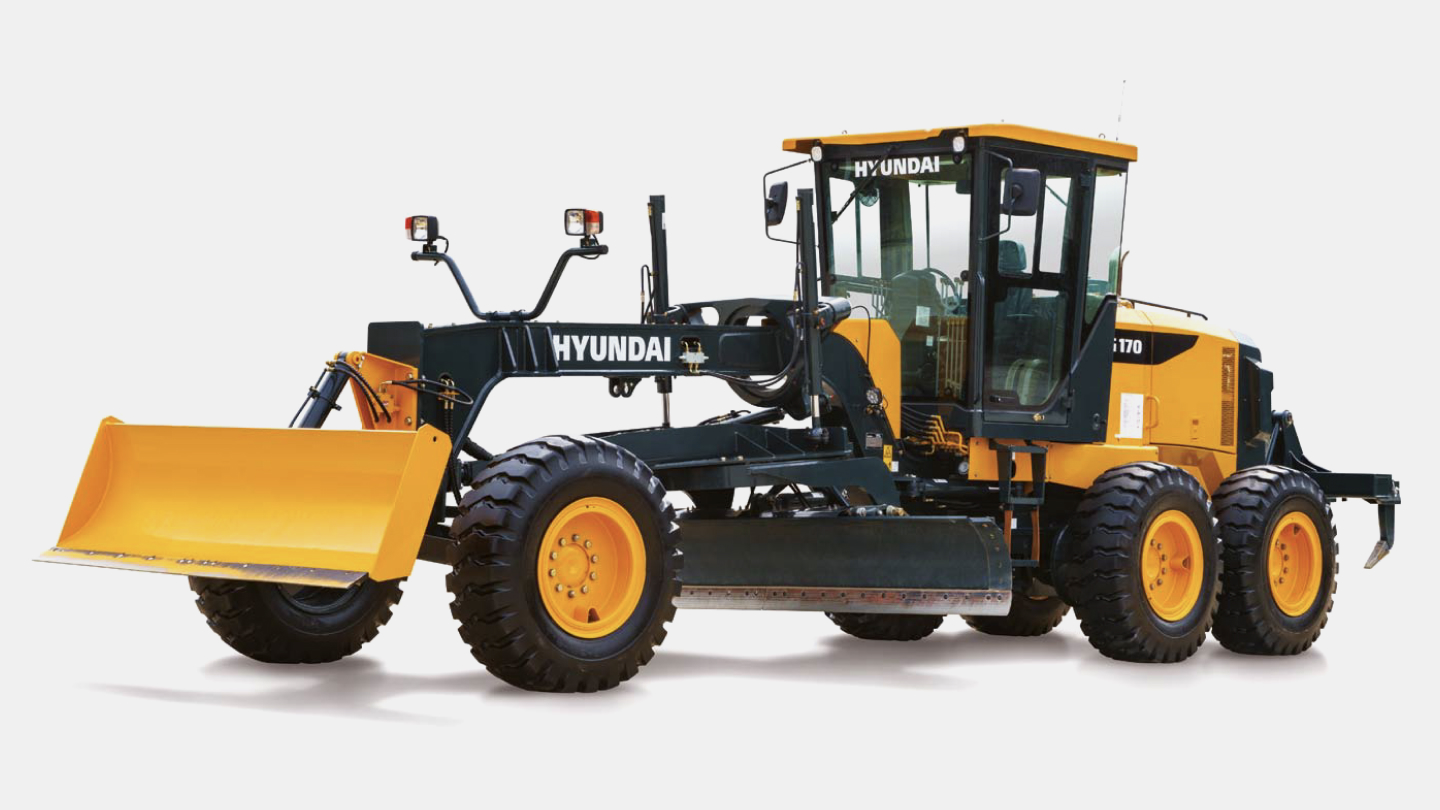

HG220-3
-
Operating Weight
17.2 ton
-
Emission
TIER 3
-
Moldboard
4,320 mm
- Catalog
Specifications
-
General
Operating Weight
17.2 ton
-
Engine
Emission
TIER 3
Engine Model
QSB6.7-C220
Rated Power
163kW / 2,200rpm
Max. Torque
950Nm/1,500rpm
-
Hydraulic System
Main Pumps Rated Flow
99 ℓ/min
Implement Circuit
178.45 kgf/cm²
-
Tank Capacity
Fuel tank
370 ℓ
Engine Oil
27 ℓ
Hydraulic tank
65 ℓ
-
Performance
Travel Speed (Forward, Maximum)
52.74 km/h
Travel Speed (Reverse, Maximum)
33.45 km/h
-
Dimensions
Overall Length
8,653 mm
Overall Width
2,600 mm
Overall Height
3,420 mm
Ground clearance
339 mm
Moldboard
4,320 mm
Length of Between Counterweight to Ripper
9,820 mm
Height to Top of ROPS Frame
3,604 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
