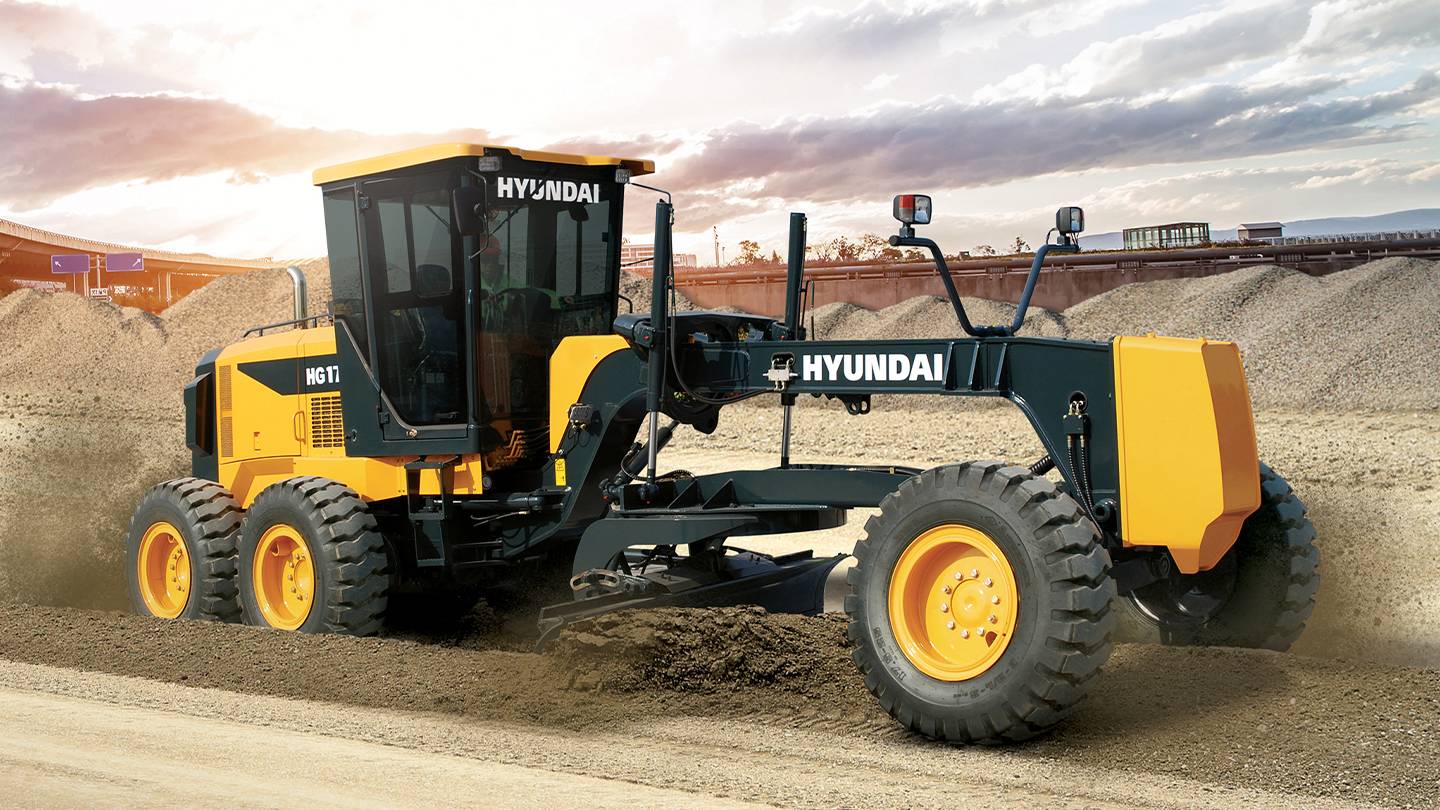

HG130
-
Operating Weight
13 ton
-
Emission
TIER 2
-
Moldboard
3,658 mm
- Catalog
Specifications
-
General
Operating Weight
13 ton
-
Engine
Emission
TIER 2
Engine Model
6BT5.9-C130
Rated Power
97kW/2,200rpm
Max. Torque
560Nm/1,500rpm
-
Hydraulic System
Main Pumps Rated Flow
140.8 ℓ/min
Implement Circuit
178.45 kgf/cm²
-
Tank Capacity
Fuel tank
370 ℓ
Engine Oil
17 ℓ
Hydraulic tank
65 ℓ
-
Performance
Travel Speed (Forward, Maximum)
53.4 km/h
Travel Speed (Reverse, Maximum)
37.8 km/h
-
Dimensions
Overall Length
8,125 mm
Overall Width
3,658 mm
Overall Height
3,465 mm
Ground clearance
339 mm
Moldboard
3,658 mm
Length of Between Counterweight to Ripper
9,440 mm
Height to Top of ROPS Frame
3,632 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
