Wheel Loaders

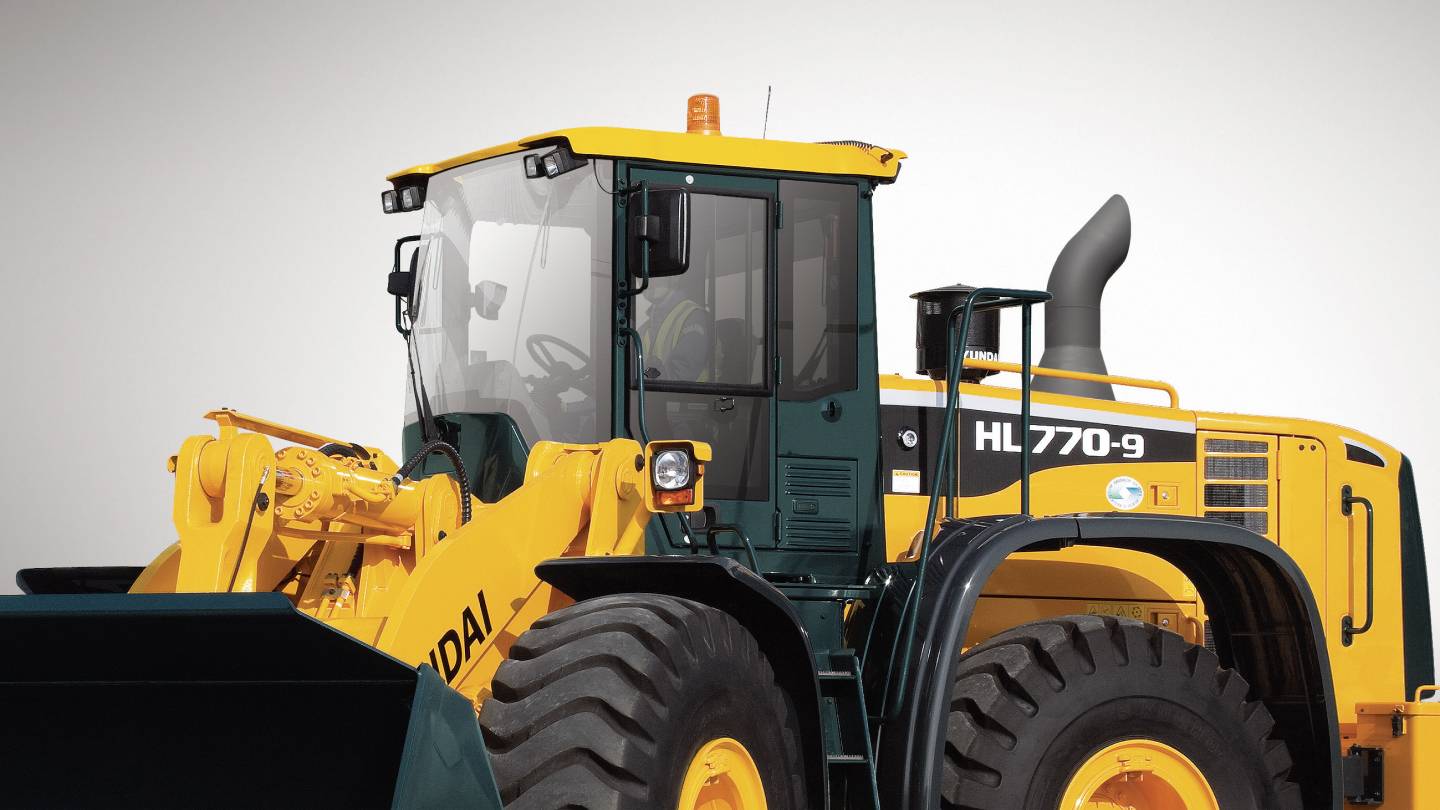

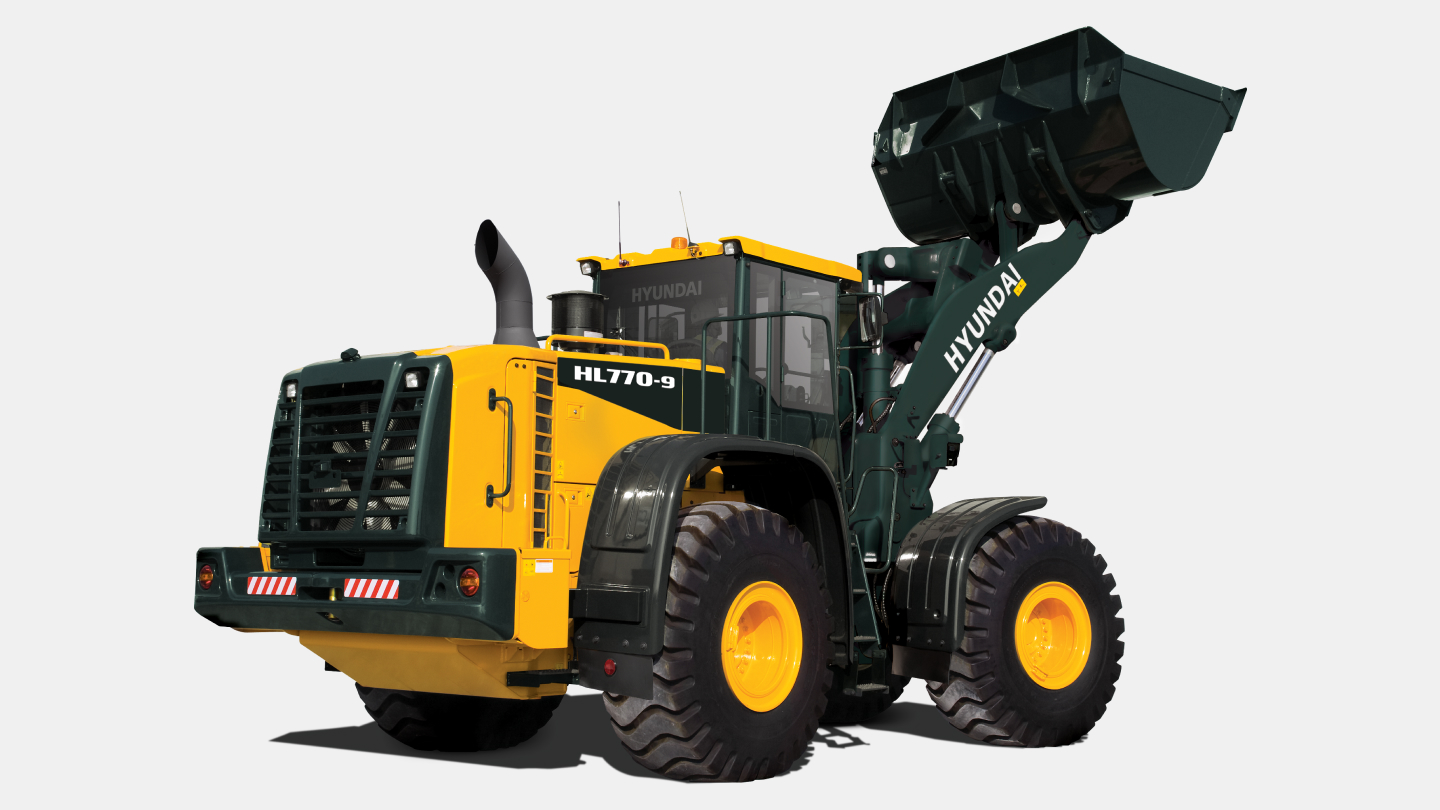

HL770-9
-
Operating Weight
23.1 ton
-
Bucket Capacity
4.2 m³
-
Emission
TIER 3
-
Rated Power
280 hp / 2,000 rpm
- Catalog
Specifications
-
General
Operating Weight
23.1 ton
Bucket Capacity
4.2 m³
-
Engine
Emission
TIER 3
Engine model
HE 8.9
Rated Power
280 hp / 2,000 rpm
Max. Torque
148 kgf·m / 1,400 rpm
-
Hydraulic System
Type
Load sensing hydraulic system
-
Tank Capacity
Fuel tank
390 ℓ
Engine Oil
23 ℓ
Hydraulic tank
200 ℓ
-
Dimensions
Overall Length
8,700 mm
Overall Width
3,100 mm
Overall Height
3,560 mm
Ground clearance
480 mm
Wheelbase
3,500 mm
-
Tire
Type
Tubeless, loader design tires
Tires (STD)
26.5-25, 20 PR, L3
Option Include
26.5 R25 XHA* / 26.5-25, 28 PR, L3 / 26.5-25, 32 PR, L3 / 23.5-25, 20 PR, L3 / 26.5-25, 20 PR, L5
-
Performance
Tipping Load (Staight)
17,620 kg
Tipping Load (Full-Turn)
15,290 kg
Cycle time (Raise from Carry Position)
5.4 sec
Cycle time (Lower, empty, foat down)
2.8 sec
Cycle time (Dump, at maximum raise)
1.3 sec
Travel speed (forward, Maximum)
41 km/h
Travel speed (Reverse, Maximum)
26.9 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
4,310 mm
Dump Clearance at Maximum lift and 45˚ Discharge
3,090 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
