Wheel Loaders

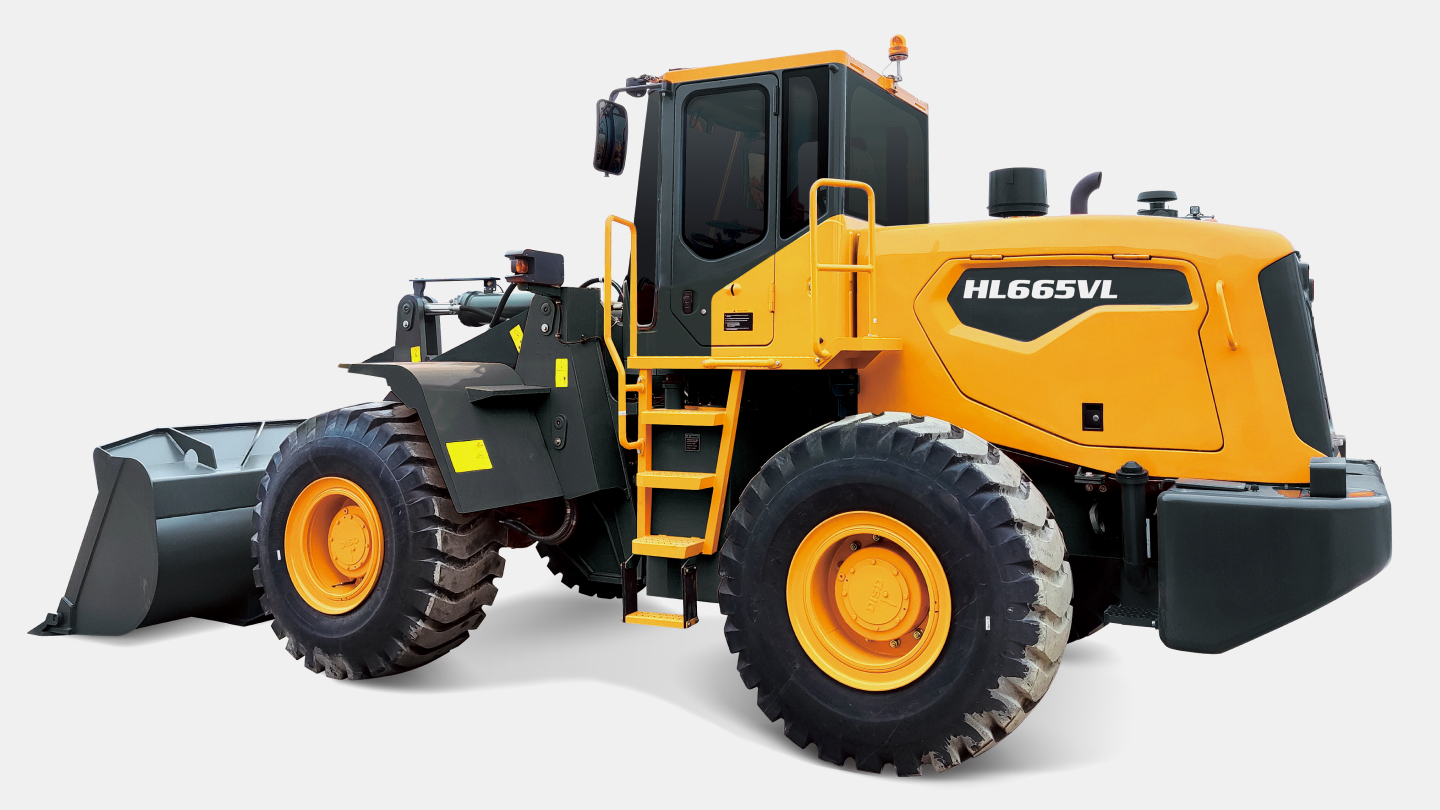

HL665V
-
Operating Weight
16.5 ton
-
Bucket Capacity
3.0 m³
-
Emission
TIER 2
-
Rated Power
217 hp / 2,000 rpm
- Catalog
Specifications
-
General
Operating Weight
16.5 ton
Bucket Capacity
3.0 m³
-
Engine
Emission
TIER 2
Engine model
WD10G220E23
Rated Power
217 hp / 2,000 rpm
Max. Torque
91.77 kgf·m / 1300-1500 rpm
-
Hydraulic System
Type
Gear pump
-
Tank Capacity
Fuel tank
260 ℓ
Engine Oil
19 ℓ
Hydraulic tank
260 ℓ
-
Dimensions
Overall Length
7,780 mm
Overall Width
2,992 mm
Overall Height
3,470 mm
Ground clearance
480 mm
Wheelbase
2,900 mm
-
Tire
Tires (STD)
23.5-25 16PR
-
Performance
Tipping Load (Full-Turn)
9,500 kg
Cycle time (Raise from Carry Position)
5.6 sec
Cycle time (Lower, empty, foat down)
3.0 sec
Cycle time (Dump, at maximum raise)
1.4 sec
Travel speed (forward, Maximum)
38 km/h
Travel speed (Reverse, Maximum)
16.5 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
4,100 mm
Dump Clearance at Maximum lift and 45˚ Discharge
3,027 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
