Wheel Loaders

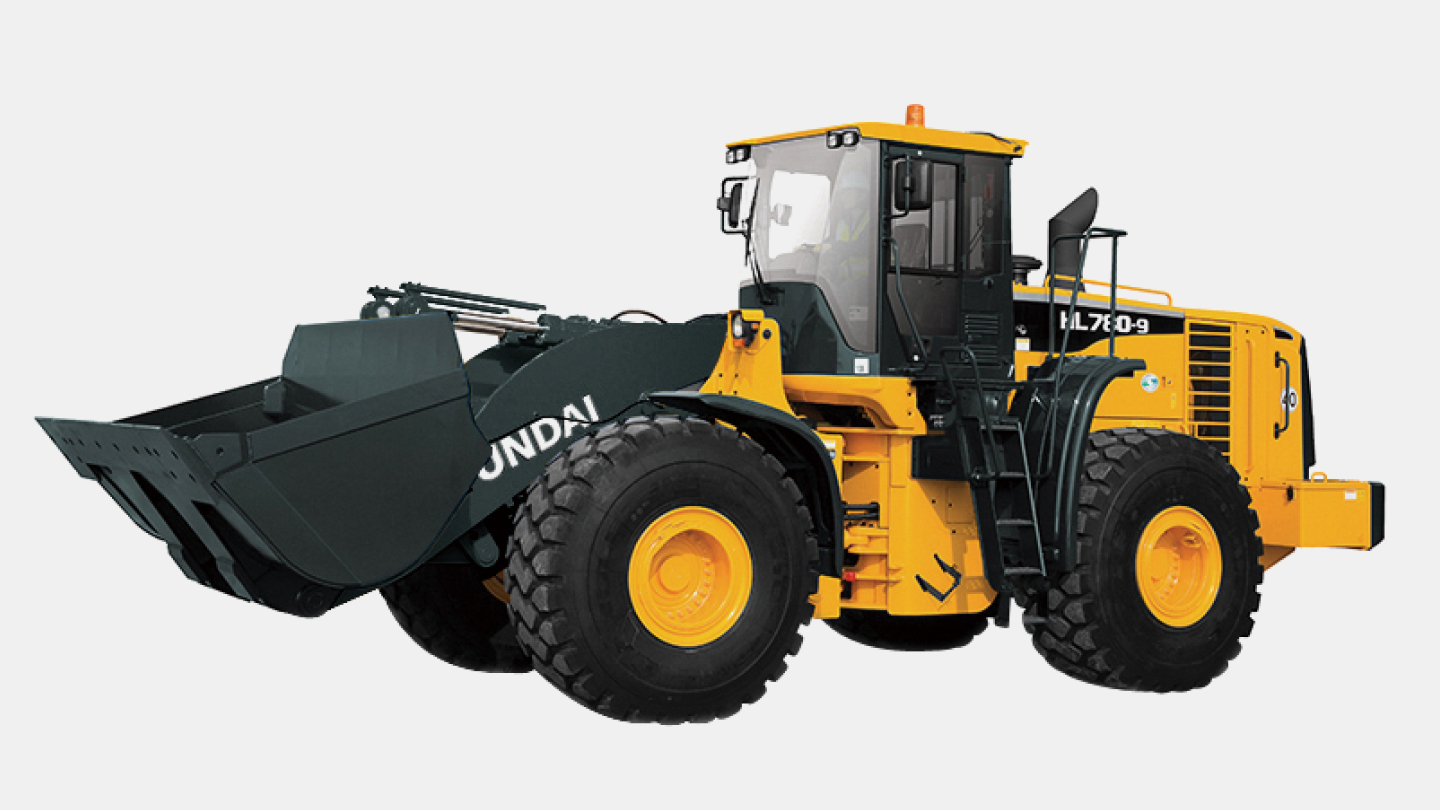

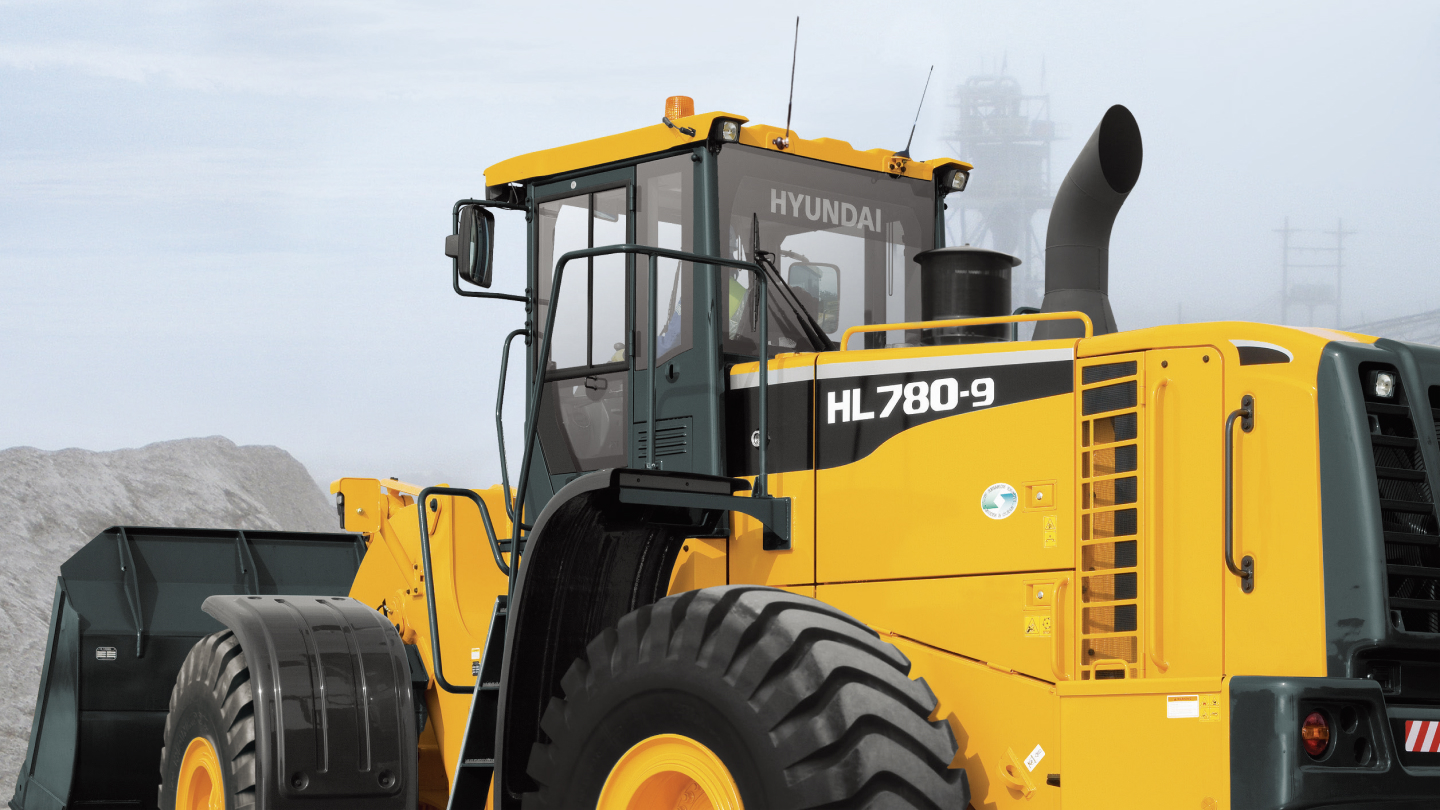

HL780-9 MARBLE
-
Operating Weight
33.4 ton
-
Bucket Capacity
4.8 m³
-
Emission
TIER 3
-
Rated Power
348 hp / 2,000 rpm
- Catalog
Specifications
-
General
Operating Weight
33.4 ton
Bucket Capacity
4.8 m³
-
Engine
Emission
TIER 3
Engine model
QSM11
Rated Power
348 hp / 2,000 rpm
-
Hydraulic System
-
Tank Capacity
-
Dimensions
Overall Length
10,010 mm
Overall Width
3,490 mm
Overall Height
3,805 mm
Ground clearance
475 mm
Wheelbase
3,700 mm
-
Tire
-
Performance
Tipping Load (Staight)
30,300 kg
Tipping Load (Full-Turn)
26,000 kg
-
Operating Range
Hinge Pin Height at Maximum Lift
4,435 mm
Dump Clearance at Maximum lift and 45˚ Discharge
2,895 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
