Wheel Loaders

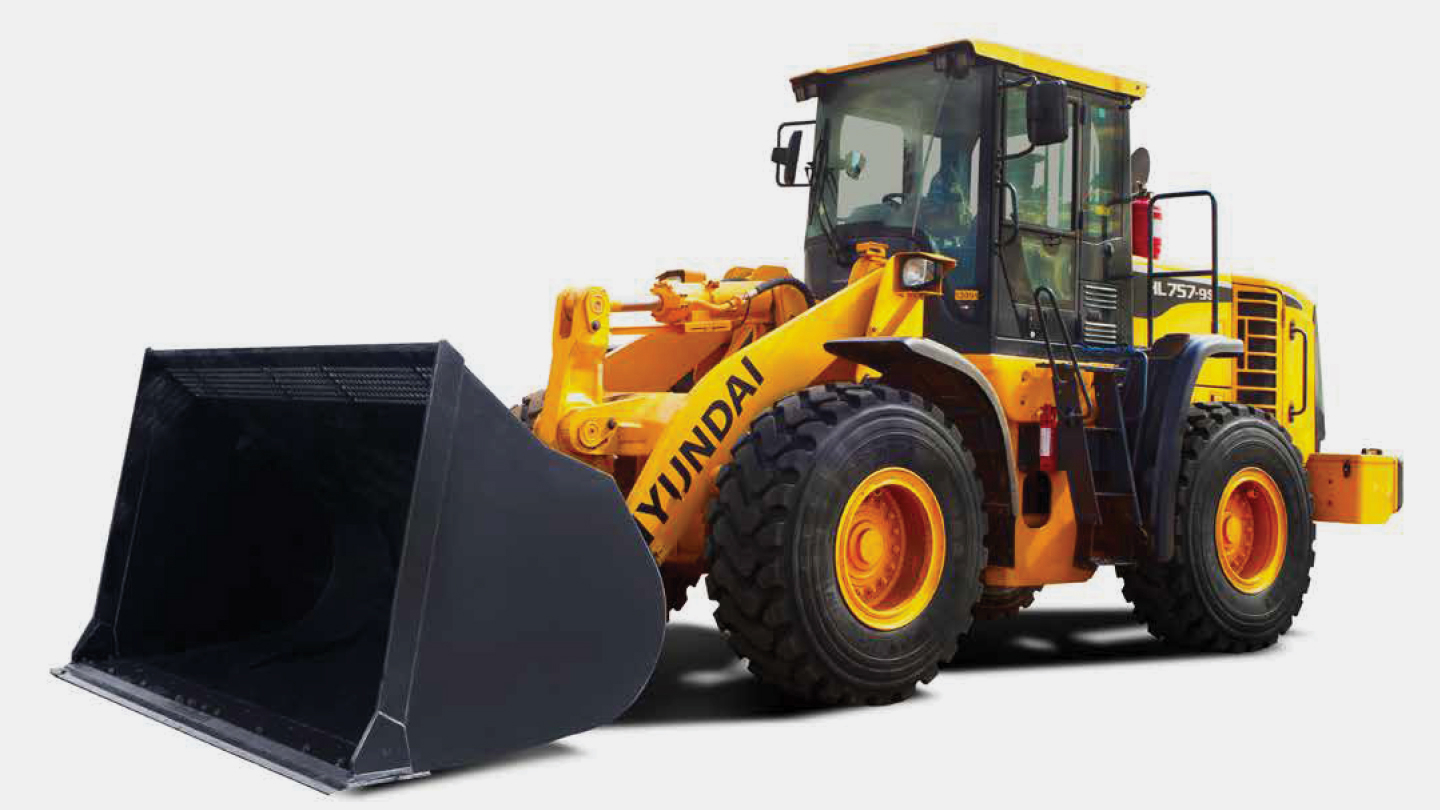

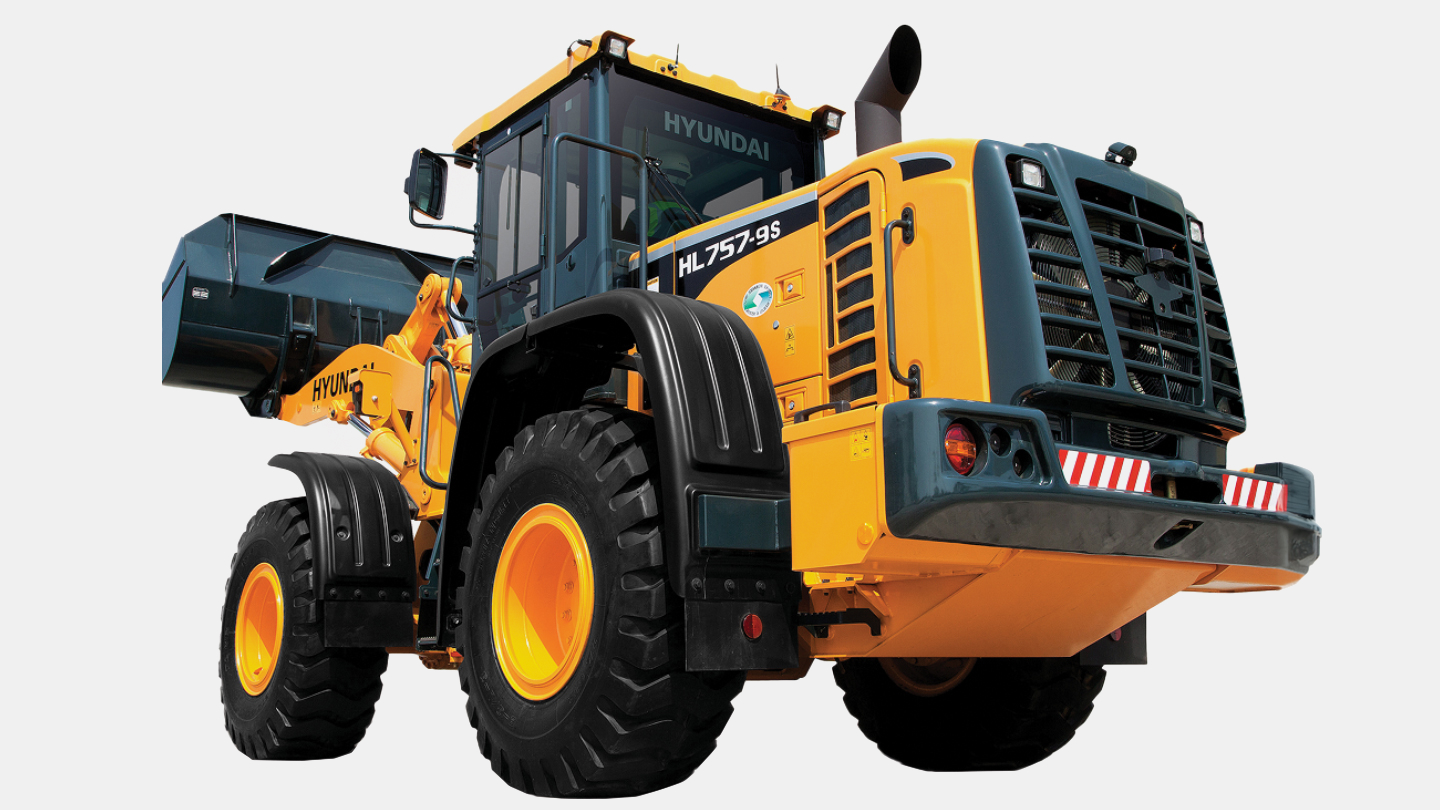

HL757-9S SUGARCANE
-
Operating Weight
14.7 ton
-
Bucket Capacity
5.0 m³
-
Emission
TIER 3
-
Rated Power
173 hp / 2.100 rpm
- Catalog
Specifications
-
General
Operating Weight
14.7 ton
Bucket Capacity
5.0 m³
-
Engine
Emission
TIER 3
Engine model
Cummins QSB6.7
Rated Power
173 hp / 2.100 rpm
Max. Torque
83 kgf·m / 1,400 rpm
-
Hydraulic System
Type
Open-centered, tandem circuit system, pilot-operated controls
-
Tank Capacity
Fuel tank
246 ℓ
Engine Oil
18 ℓ
Hydraulic tank
155 ℓ
-
Dimensions
Overall Length
7,815 mm
Overall Width
2,740 mm
Overall Height
3,400 mm
Ground clearance
410 mm
Wheelbase
3,050 mm
-
Tire
Type
Tubeless, loader design tires
Tires (STD)
20.5 R25 XHA*
Option Include
20.5-25 16PR L3 / 20.5-25 16PR L5
-
Performance
Tipping Load (Staight)
11,300 kg
Tipping Load (Full-Turn)
9,650 kg
Cycle time (Raise from Carry Position)
6.0 sec
Cycle time (Lower, empty, foat down)
3.1 sec
Cycle time (Dump, at maximum raise)
1.2 sec
Travel speed (forward, Maximum)
36 km/h
Travel speed (Reverse, Maximum)
23.8 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
3,900 mm
Dump Clearance at Maximum lift and 45˚ Discharge
2,650 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
