Wheel Loaders

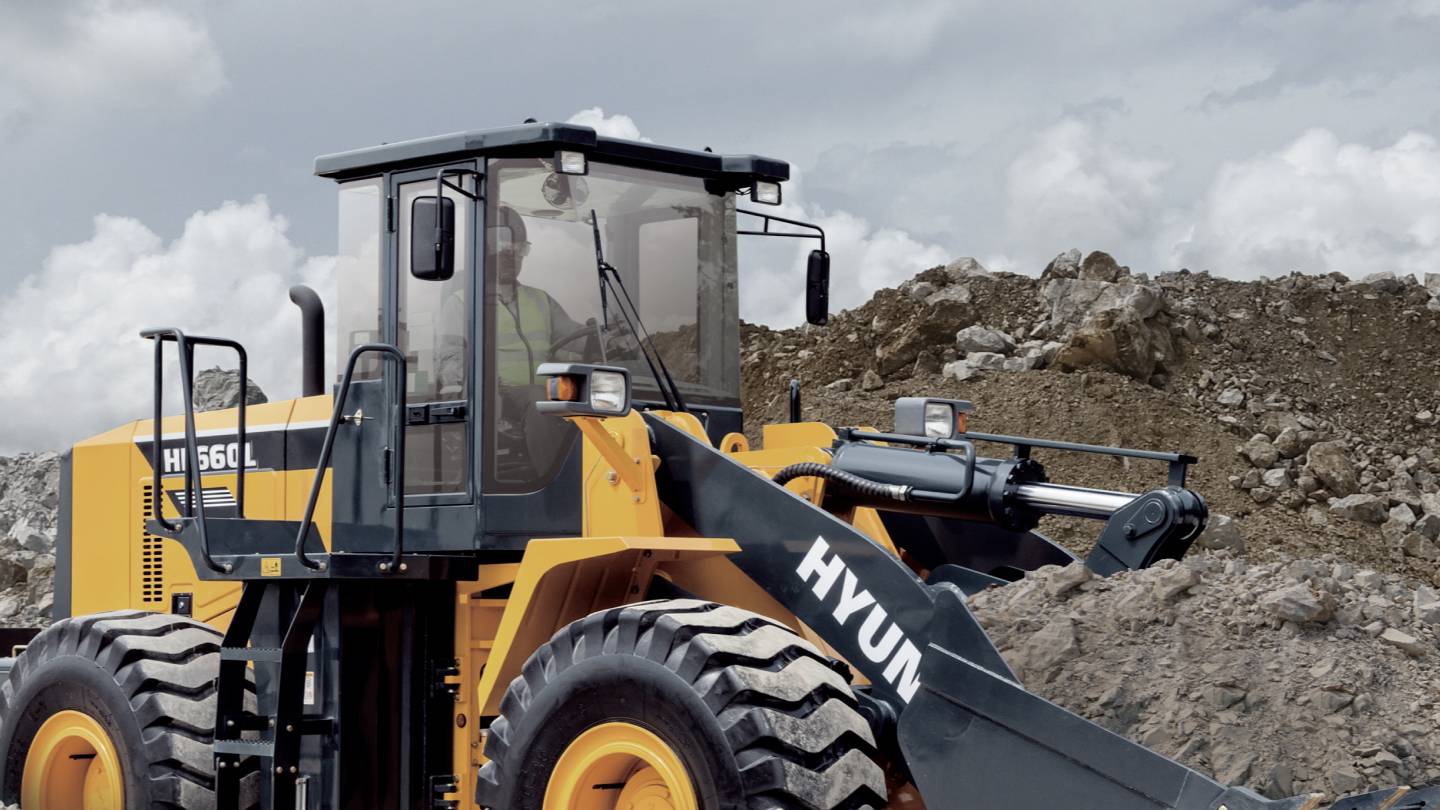

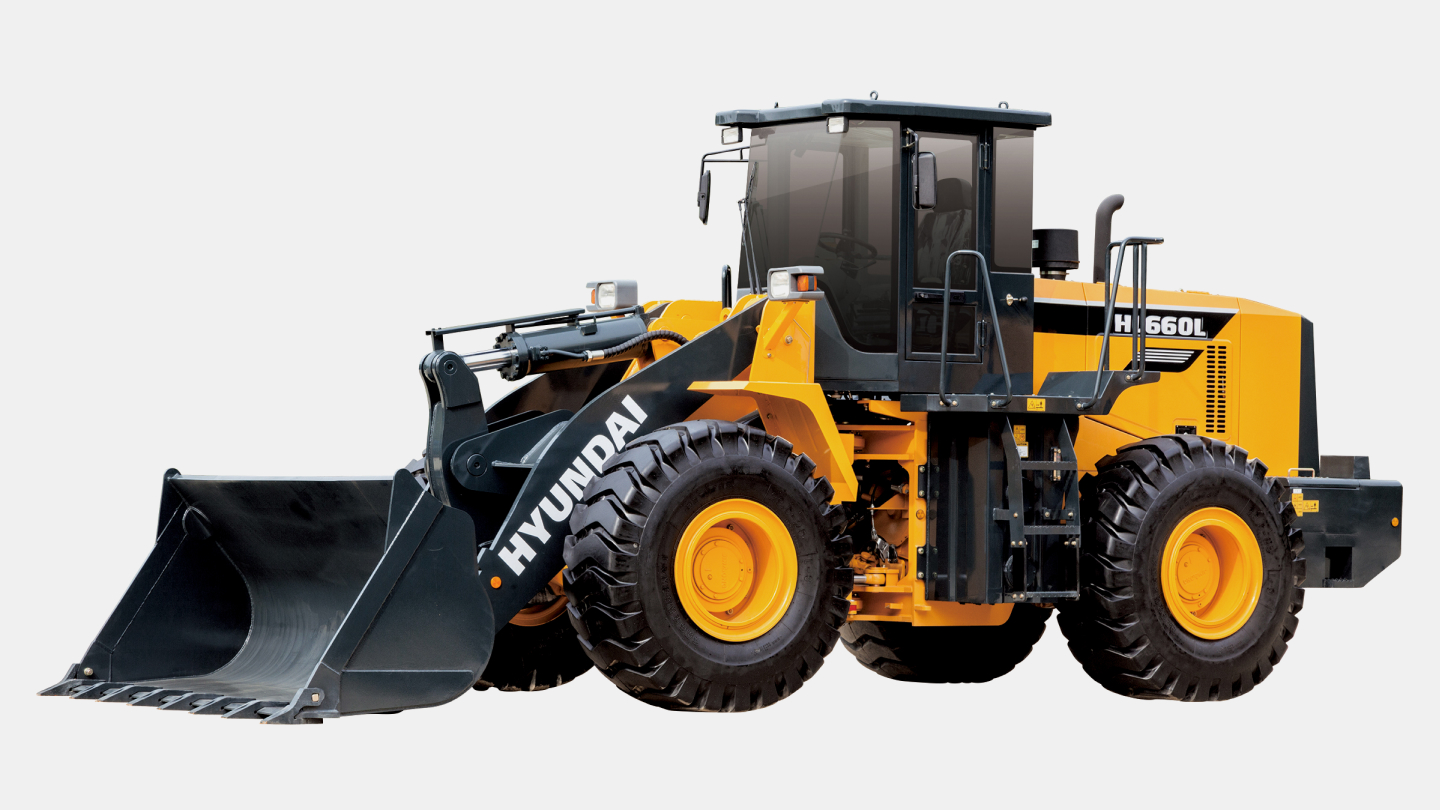

HL660L
-
Operating Weight
17.3 ton
-
Bucket Capacity
3.0 m³
-
Emission
TIER 2
-
Rated Power
217 hp / 2,000 rpm
- Catalog
Specifications
-
General
Operating Weight
17.3 ton
Bucket Capacity
3.0 m³
-
Engine
Emission
TIER 2
Engine model
WD10G220E23
Rated Power
217 hp / 2,000 rpm
-
Hydraulic System
Type
Fixed gear pump
-
Tank Capacity
Fuel tank
290 ℓ
Engine Oil
22 ℓ
Hydraulic tank
210 ℓ
-
Dimensions
Overall Length
7,780 mm
Overall Width
3,410 mm
Overall Height
2,990 mm
Ground clearance
400 mm
Wheelbase
3,230 mm
-
Tire
Tires (STD)
23.5-25 L3
-
Performance
Tipping Load (Staight)
11,300 kg
Tipping Load (Full-Turn)
10,800 kg
Cycle time (Raise from Carry Position)
5.1 sec
Cycle time (Lower, empty, foat down)
3.3 sec
Cycle time (Dump, at maximum raise)
1.6 sec
Travel speed (forward, Maximum)
36 km/h
Travel speed (Reverse, Maximum)
16 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
4,150 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
