Wheel Loaders

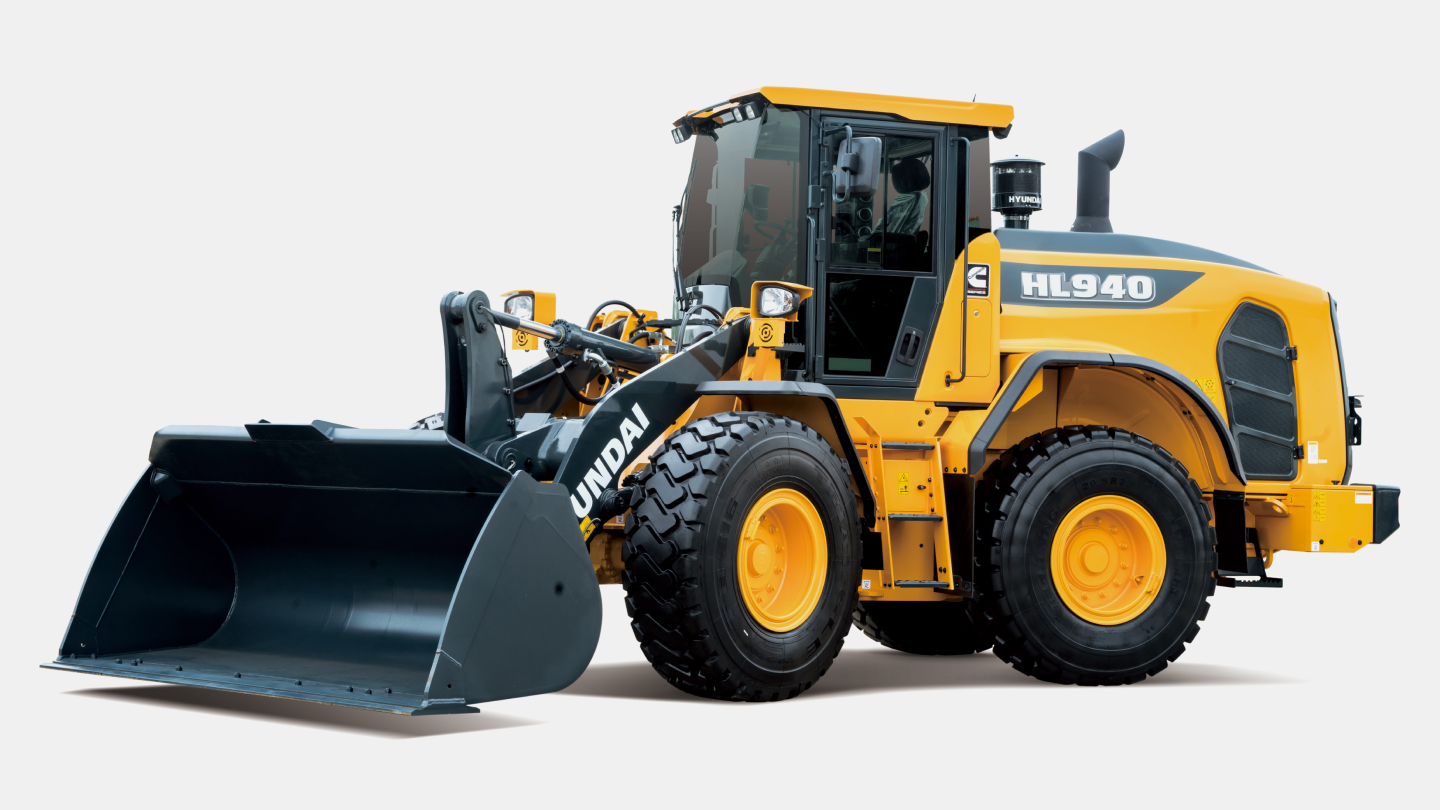

HL940 T3
-
Operating Weight
13.2 ton
-
Bucket Capacity
2.3 m³
-
Emission
TIER 3
-
Rated Power
145 hp / 2,100 rpm
- Catalog
Specifications
-
General
Operating Weight
13.2 ton
Bucket Capacity
2.3 m³
-
Engine
Emission
TIER 3
Engine model
HYUNDAI / HE6.7
Rated Power
145 hp / 2,100 rpm
Max. Torque
68.02 kgf·m / 1,400 rpm
-
Hydraulic System
Type
Load sensing hydraulic system
-
Tank Capacity
Fuel tank
220 ℓ
Engine Oil
18 ℓ
Hydraulic tank
90 ℓ
-
Dimensions
Overall Length
6,430 mm
Overall Width
2,600 mm
Overall Height
3,300 mm
Ground clearance
417 mm
Wheelbase
3,000 mm
-
Tire
Type
Tubeless, loader design tires
Tires (STD)
20.5R25 L3 ★★
Option Include
20.5-25 L5 16PR / 20.5R25 L3 XHA2 ★ / 20.5-25 L3 16PR
-
Performance
Tipping Load (Staight)
9,800 kg
Tipping Load (Full-Turn)
8,500 kg
Cycle time (Raise from Carry Position)
5.5 sec
Cycle time (Lower, empty, foat down)
3.7 sec
Cycle time (Dump, at maximum raise)
1.8 sec
Travel speed (forward, Maximum)
38.8 km/h
Travel speed (Reverse, Maximum)
24.7 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
3,820 mm
Dump Clearance at Maximum lift and 45˚ Discharge
2,765 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
