Wheel Loaders

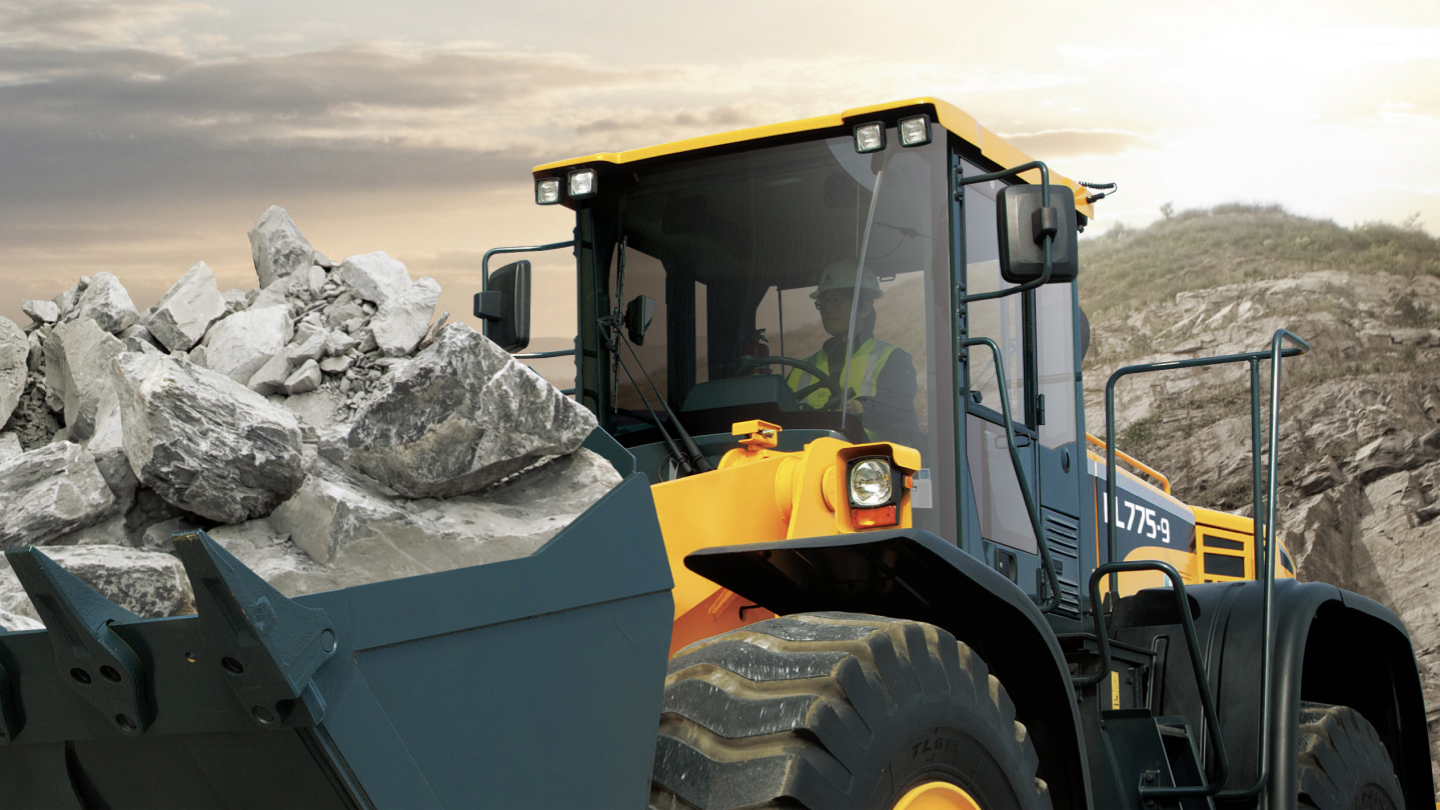

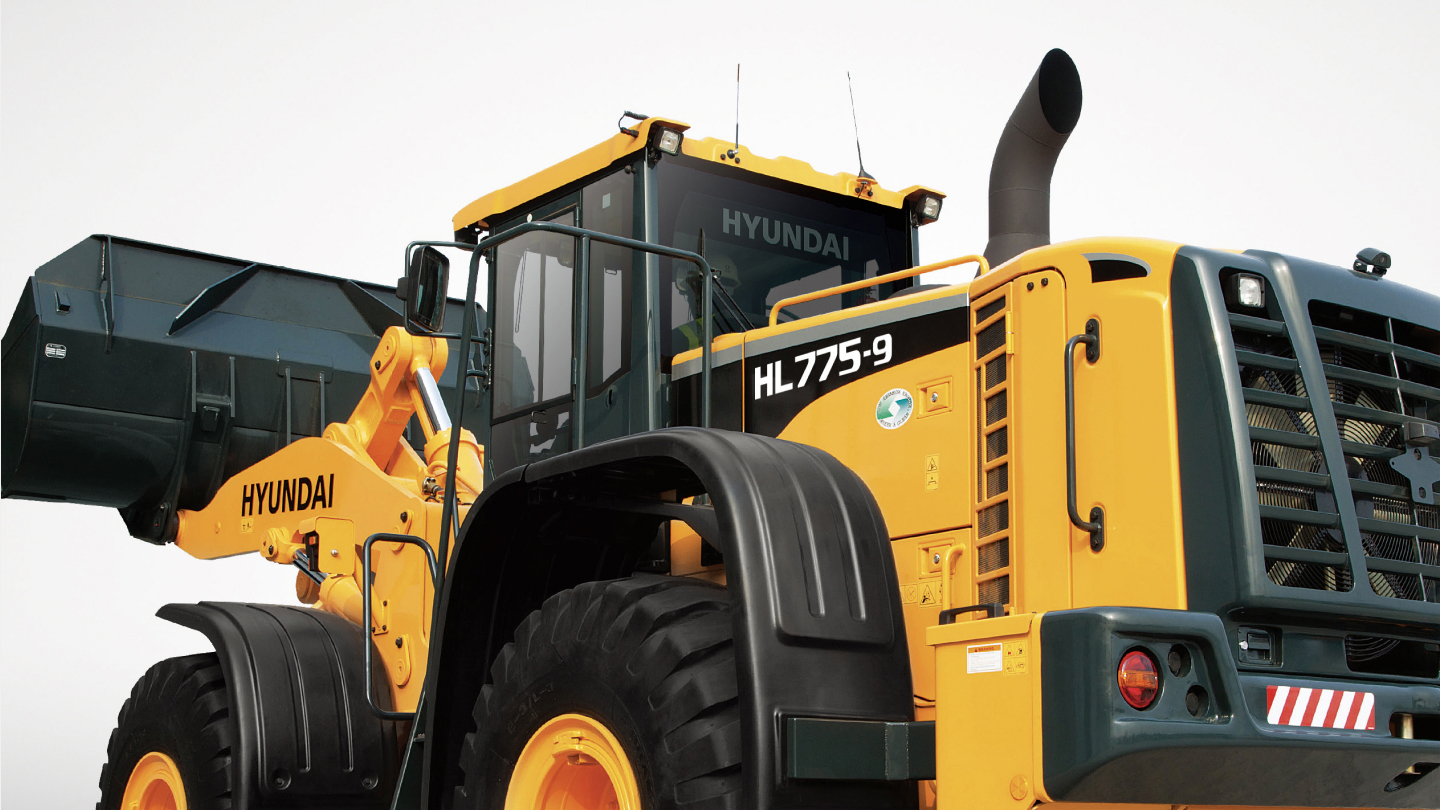

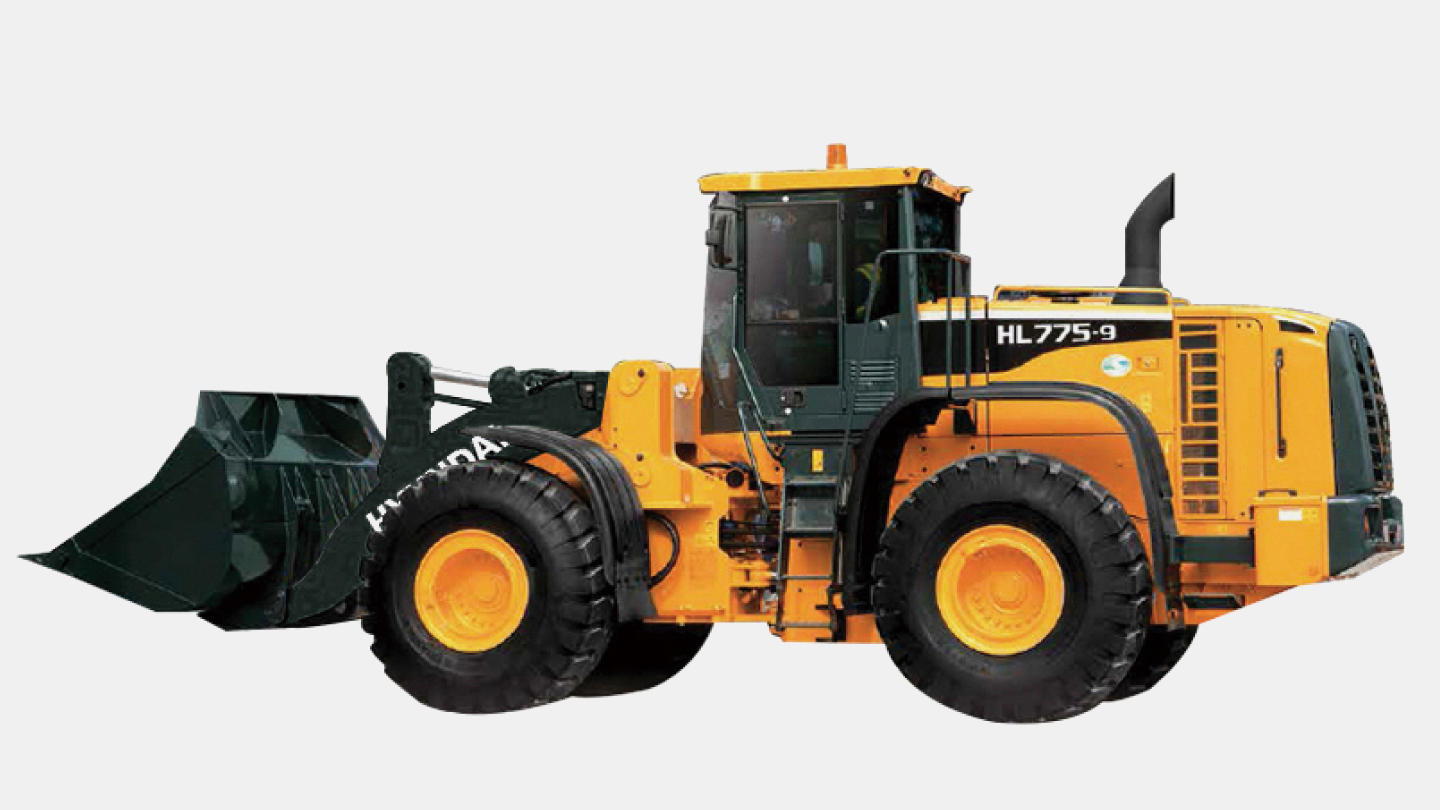

HL775-9S
-
Operating Weight
24.1 ton
-
Bucket Capacity
4.5 m³
-
Emission
TIER 3
-
Rated Power
300 hp / 2,000 rpm
- Catalog
Specifications
-
General
Operating Weight
24.1 ton
Bucket Capacity
4.5 m³
-
Engine
Emission
TIER 3
Engine model
QSM11
Rated Power
300 hp / 2,000 rpm
Max. Torque
161 kgf·m / 1,400 rpm
-
Hydraulic System
Type
Open-centered, tandem circuit system
-
Tank Capacity
Fuel tank
362 ℓ
Engine Oil
34 ℓ
Hydraulic tank
185 ℓ
-
Dimensions
Overall Length
9,190 mm
Overall Width
3,300 mm
Overall Height
3,600 mm
Ground clearance
480 mm
Wheelbase
3,500 mm
-
Tire
Type
Tubeless, loader design tires
Tires (STD)
26.5 R25, L3
Option Include
26.5 - 25, 20PR, L3 / 26.5 - 25, 20PR, L5
-
Performance
Tipping Load (Staight)
19,350 kg
Tipping Load (Full-Turn)
16,730 kg
Cycle time (Raise from Carry Position)
5.9 sec
Cycle time (Lower, empty, foat down)
2.6 sec
Cycle time (Dump, at maximum raise)
1.3 sec
Travel speed (forward, Maximum)
37 km/h
Travel speed (Reverse, Maximum)
25.8 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
4,305 mm
Dump Clearance at Maximum lift and 45˚ Discharge
2,915 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
