Wheel Loaders

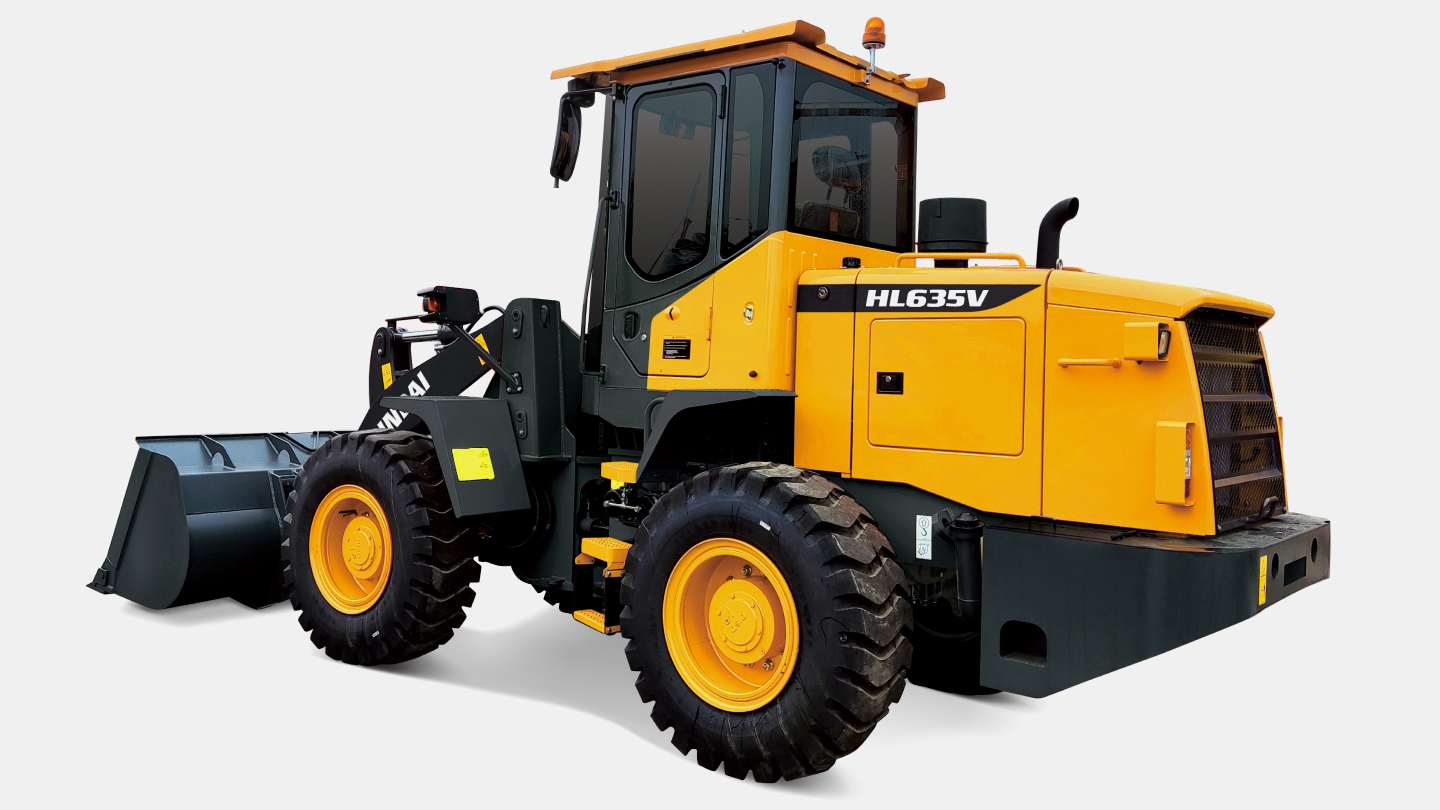

HL635VL
-
Operating Weight
10.4 ton
-
Bucket Capacity
1.7 m³
-
Emission
TIER 2
-
Rated Power
123 hp / 2,200 rpm
- Catalog
Specifications
-
General
Operating Weight
10.4 ton
Bucket Capacity
1.7 m³
-
Engine
Emission
TIER 2
Engine model
WP6G125E22
Rated Power
123 hp / 2,200 rpm
Max. Torque
51 kgf·m / 1400-1500 rpm
-
Hydraulic System
Type
Gear pump
-
Tank Capacity
Fuel tank
150 ℓ
Engine Oil
14 ℓ
Hydraulic tank
130 ℓ
-
Dimensions
Overall Length
6,950 mm
Overall Width
2,496 mm
Overall Height
3,280 mm
Ground clearance
350 mm
Wheelbase
2,830 mm
-
Tire
Tires (STD)
17.5-25 12PR L3
-
Performance
Tipping Load (Full-Turn)
6,400 kg
Cycle time (Raise from Carry Position)
5.3 sec
Cycle time (Lower, empty, foat down)
3.6 sec
Cycle time (Dump, at maximum raise)
1.0 sec
Travel speed (forward, Maximum)
37 km/h
Travel speed (Reverse, Maximum)
27 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
3,740 mm
Dump Clearance at Maximum lift and 45˚ Discharge
2,815 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
