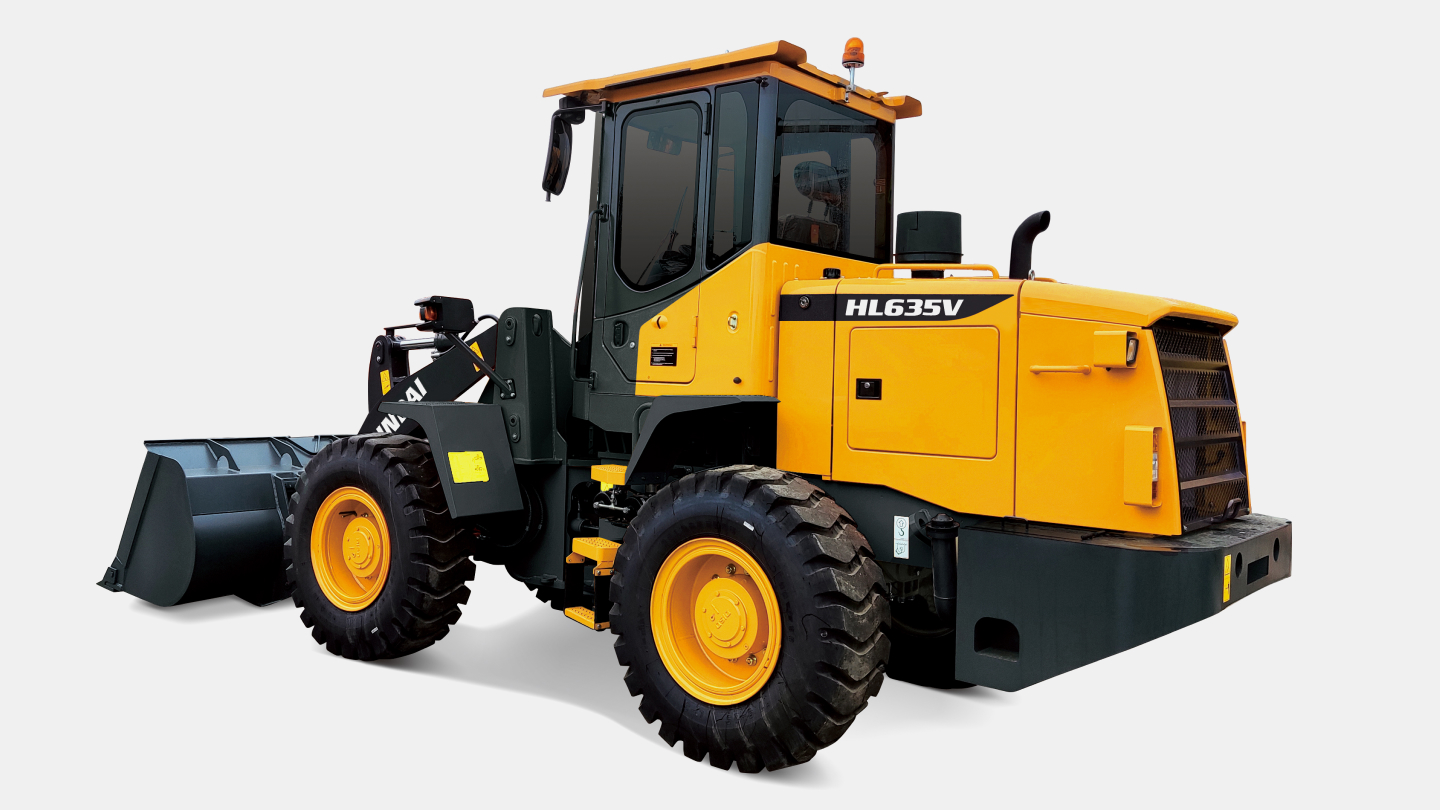

Wheel Loaders
Operating Weight
10.3  ton
Bucket Capacity
1.7  m³
Emission
TIER 3
Rated Power
123  hp / 2,200 rpm
General
Operating Weight
10.3  ton
Bucket Capacity
1.7  m³
Engine
Emission
TIER 3
Engine model
WP6G125E22
Rated Power
123  hp / 2,200 rpm
Max. Torque
55  kgf·m / 1300-1500 rpm
Hydraulic System
Type
Gear pump
Tank Capacity
Fuel tank
155  ℓ
Engine Oil
14  ℓ
Hydraulic tank
127  ℓ
Dimensions
Overall Length
6,990  mm
Overall Width
2,496  mm
Overall Height
3,250  mm
Ground clearance
330  mm
Wheelbase
2,830  mm
Tire
Tires (STD)
17.5-25 12PR L3
Performance
Tipping Load (Full-Turn)
6,400  kg
Cycle time (Raise from Carry Position)
5.3  sec
Cycle time (Lower, empty, foat down)
3.7  sec
Cycle time (Dump, at maximum raise)
1.0  sec
Travel speed (forward, Maximum)
37  km/h
Travel speed (Reverse, Maximum)
27  km/h
Operating Range
Hinge Pin Height at Maximum Lift
3,770  mm
Dump Clearance at Maximum lift and 45˚ Discharge
2,840  mm
- These specifications are based on the "standard specifications"" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
