Wheel Loaders

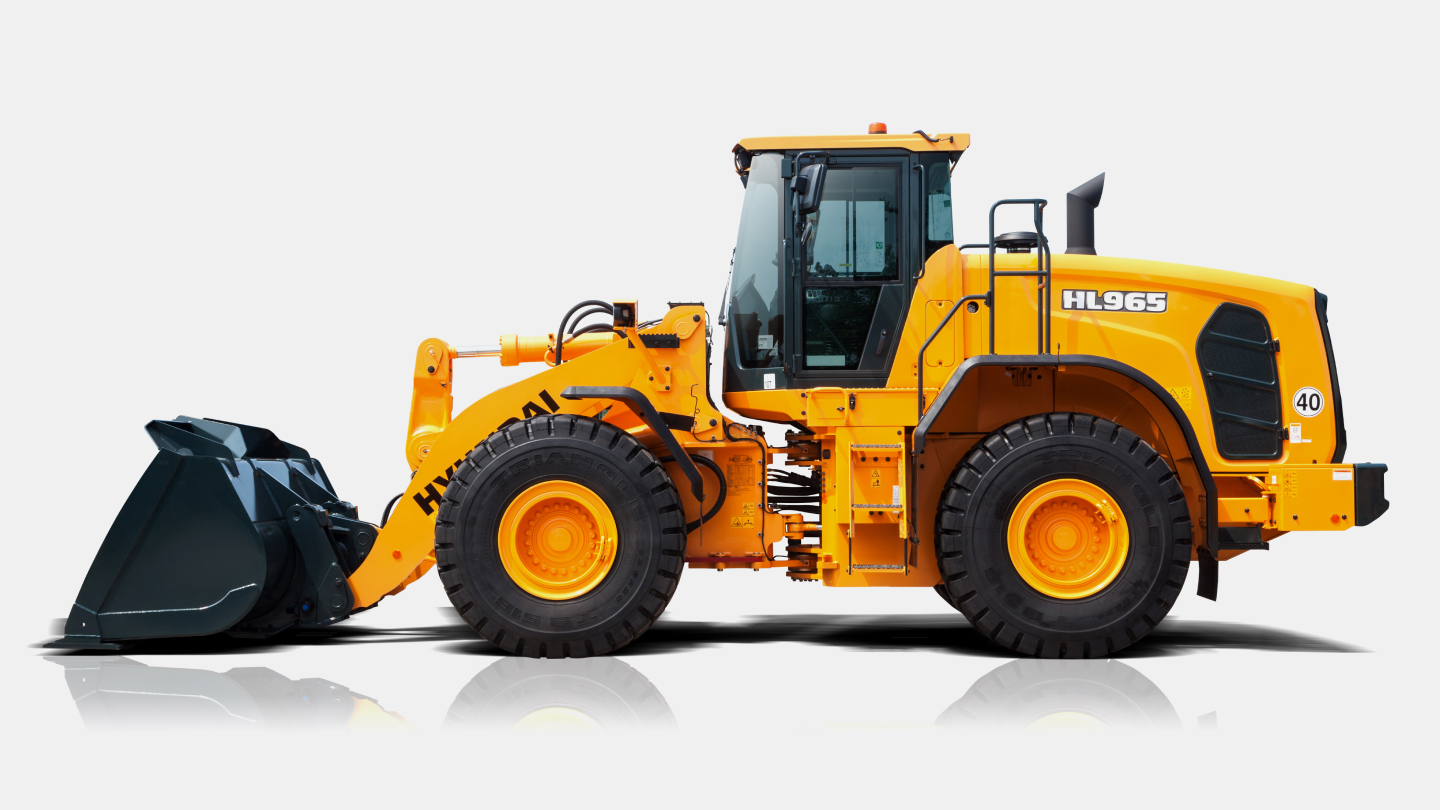

HL965
-
Operating Weight
20.1 ton
-
Bucket Capacity
3.6 m³
-
Emission
TIER 4
-
Rated Power
272 hp / 2,100 rpm
- Catalog
Specifications
-
General
Operating Weight
20.1 ton
Bucket Capacity
3.6 m³
-
Engine
Emission
TIER 4
Engine model
QSL9
Rated Power
272 hp / 2,100 rpm
Max. Torque
148 kgf·m / 1,400 rpm
-
Hydraulic System
Type
Load sensing hydraulic system
-
Tank Capacity
Fuel tank
300 ℓ
Engine Oil
19 ℓ
Hydraulic tank
115 ℓ
-
Dimensions
Overall Length
8,280 mm
Overall Width
3,000 mm
Overall Height
3,450 mm
Ground clearance
410 mm
Wheelbase
3,300 mm
-
Tire
Type
Tubeless, loader design tires
Tires (STD)
23.5 R25, L3
Option Include
"23.5 R25, XHA2 / 23.5-25, 20PR, L3 / 23.5-25, 20PR, L5"
-
Performance
Tipping Load (Staight)
14,700 kg
Tipping Load (Full-Turn)
12,720 kg
Cycle time (Raise from Carry Position)
5.8 sec
Cycle time (Lower, empty, foat down)
3.1 sec
Cycle time (Dump, at maximum raise)
1.4 sec
Travel speed (forward, Maximum)
37.4 km/h
Travel speed (Reverse, Maximum)
24.2 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
4,145 mm
Dump Clearance at Maximum lift and 45˚ Discharge
2,955 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
