Wheel Loaders

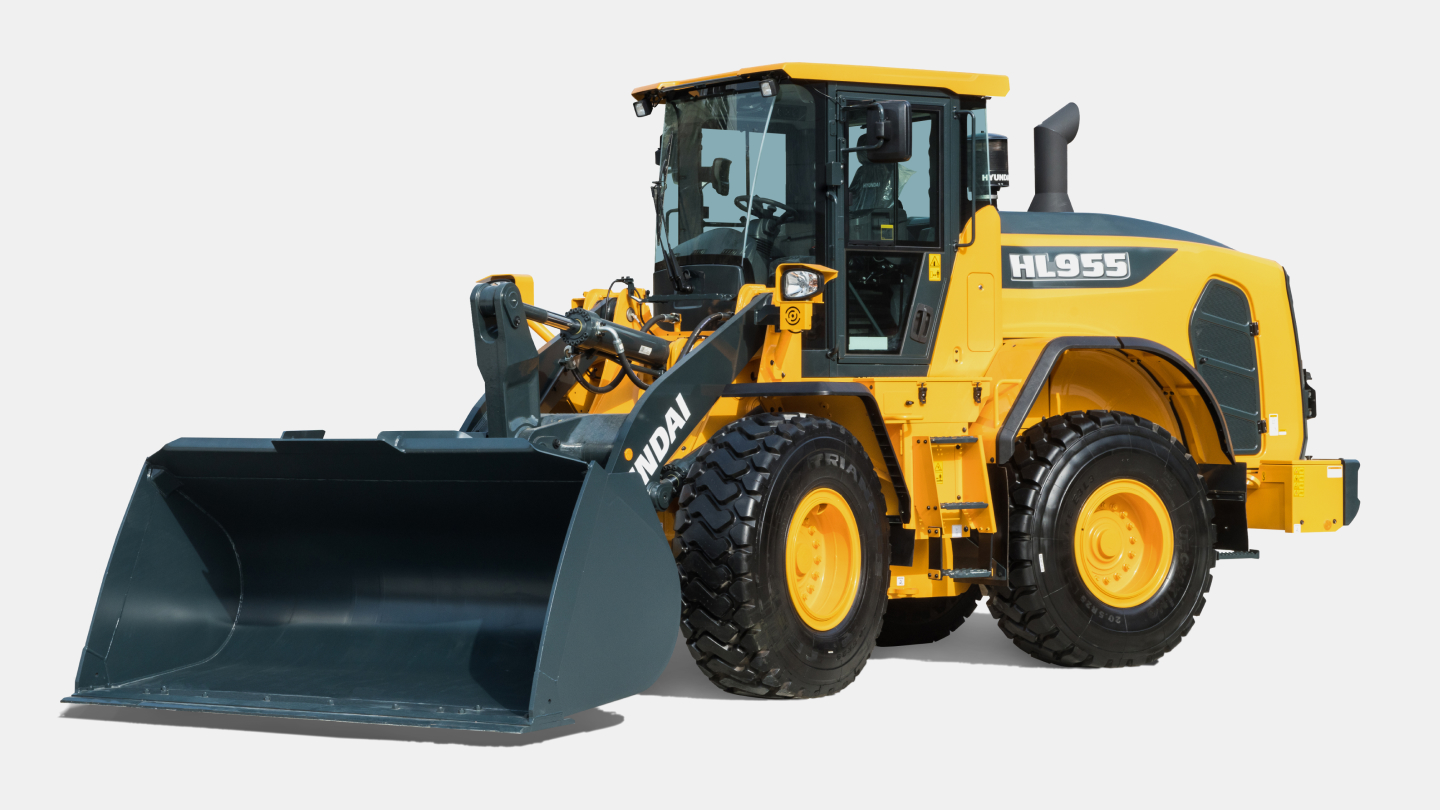

HL955 T3
-
Operating Weight
15.65 ton
-
Bucket Capacity
2.8 m³
-
Emission
TIER 3
-
Rated Power
173 hp / 2,100 rpm
- Catalog
Specifications
-
General
Operating Weight
15.65 ton
Bucket Capacity
2.8 m³
-
Engine
Emission
TIER 3
Engine model
HYUNDAI / HE6.7
Rated Power
173 hp / 2,100 rpm
Max. Torque
82.9 kgf·m / 1,400 rpm
-
Hydraulic System
Type
Load sensing hydraulic system
-
Tank Capacity
Fuel tank
230 ℓ
Engine Oil
18 ℓ
Hydraulic tank
110 ℓ
-
Dimensions
Overall Length
7,715 mm
Overall Width
2,530 mm
Overall Height
3,520 mm
Ground clearance
410 mm
Wheelbase
3,050 mm
-
Tire
Type
Tubeless, loader design tyres
Tires (STD)
20.5 R25,★★ ,L3
Option Include
20.5-25 L5 16PR / 20.5R25 XHA2 ★ / 20.5-25 L3 16PR
-
Performance
Tipping Load (Staight)
11,000 kg
Tipping Load (Full-Turn)
9,550 kg
Cycle time (Raise from Carry Position)
5.5 sec
Cycle time (Lower, empty, foat down)
3.7 sec
Cycle time (Dump, at maximum raise)
1.8 sec
Travel speed (forward, Maximum)
37.3 km/h
Travel speed (Reverse, Maximum)
23.8 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
3,940 mm
Dump Clearance at Maximum lift and 45˚ Discharge
2,785 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
