Wheel Loaders

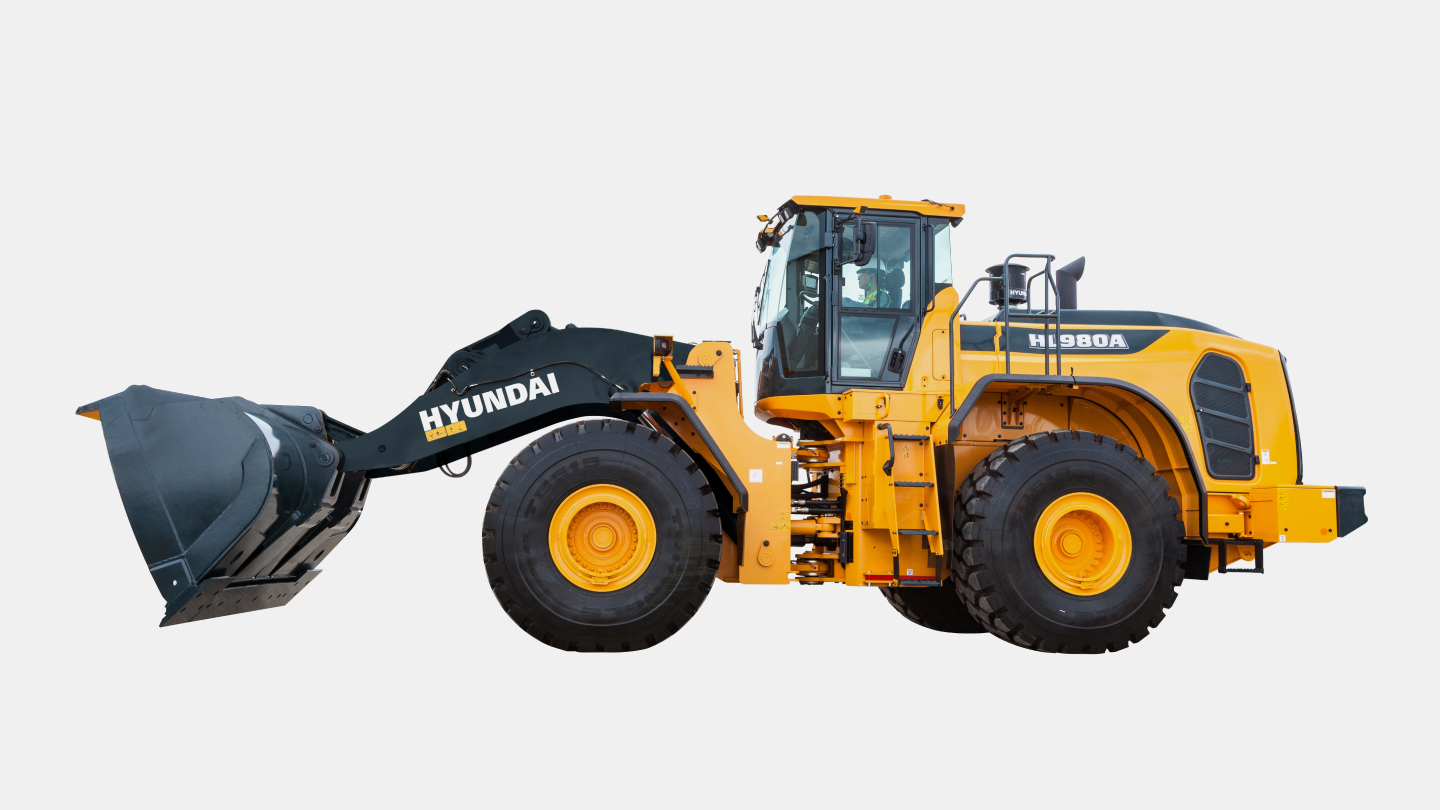

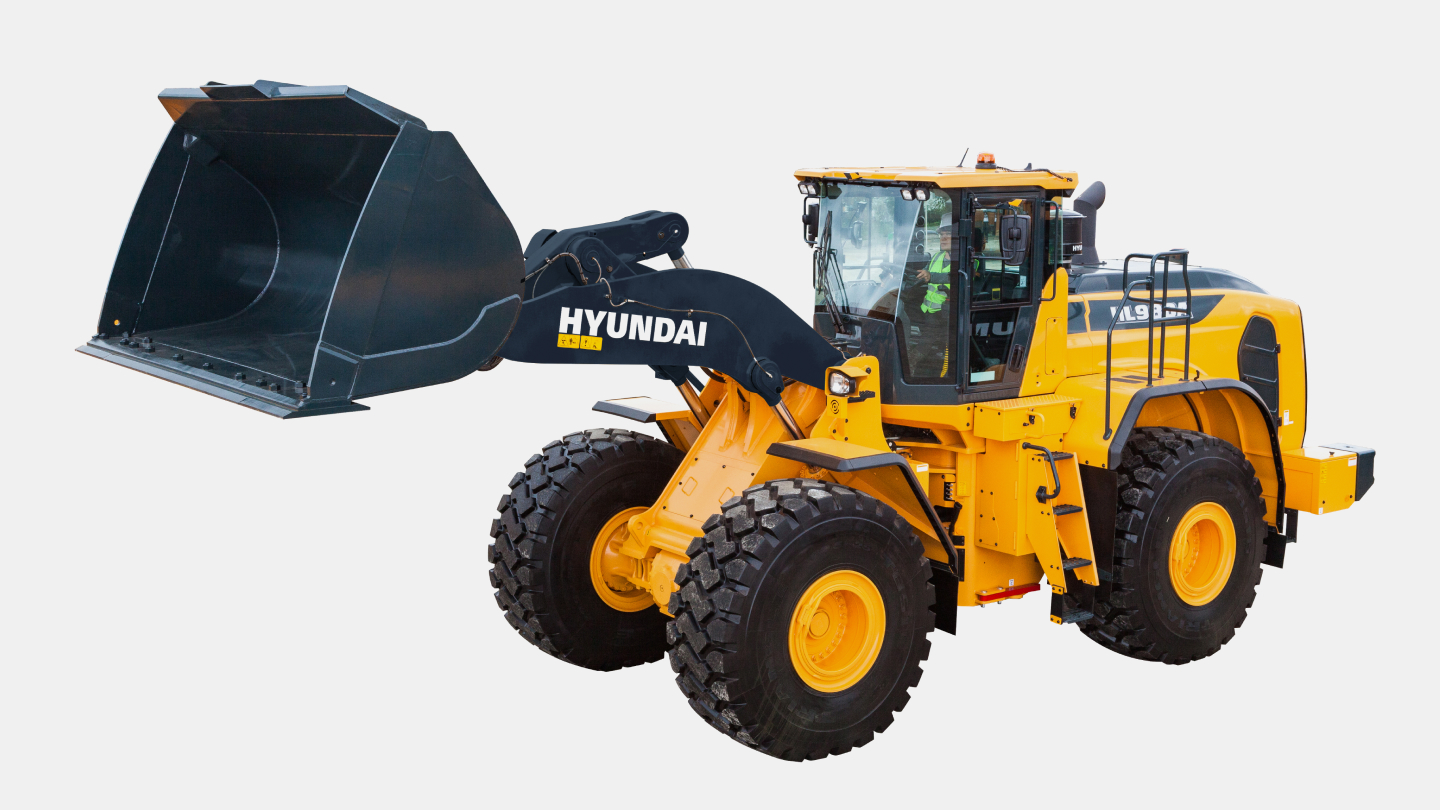

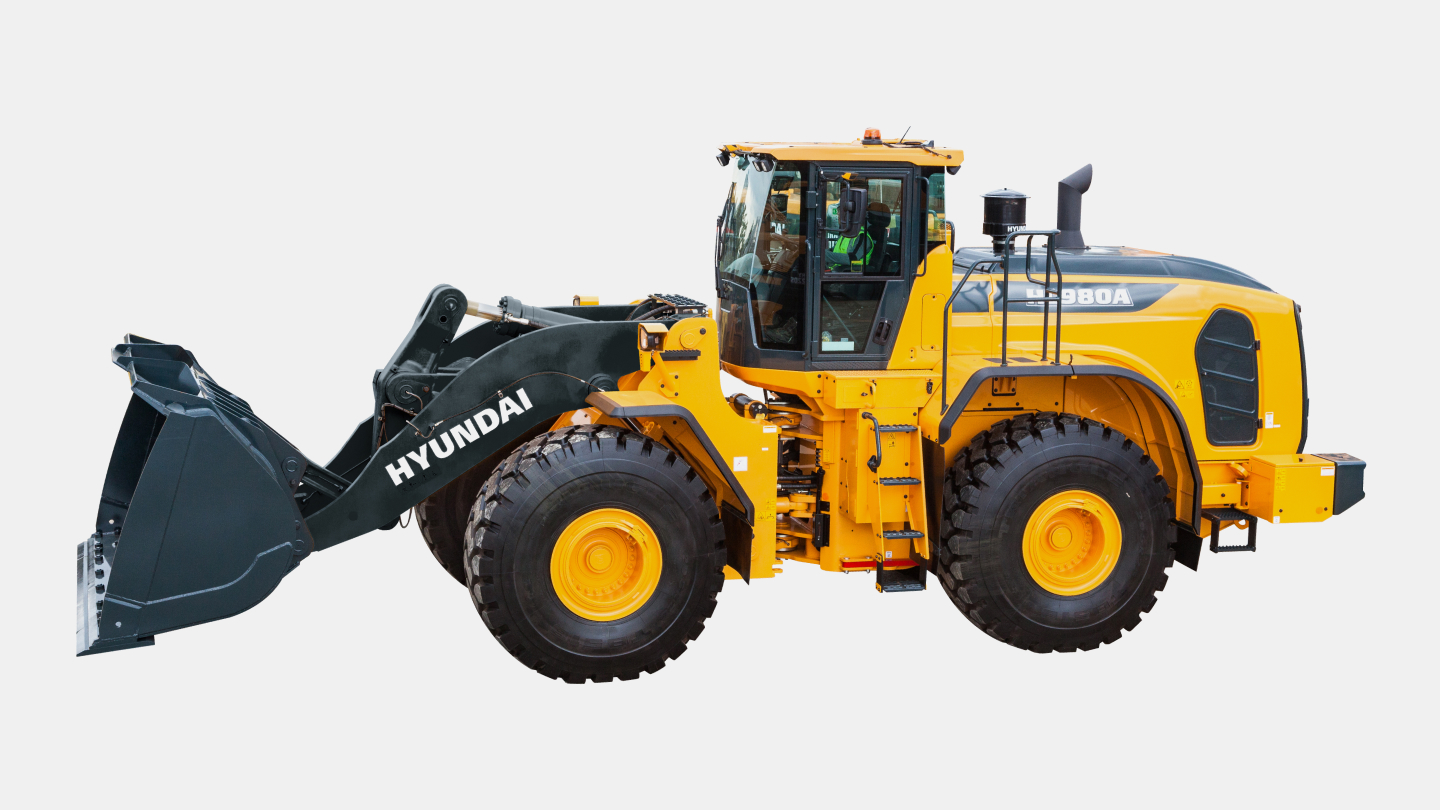

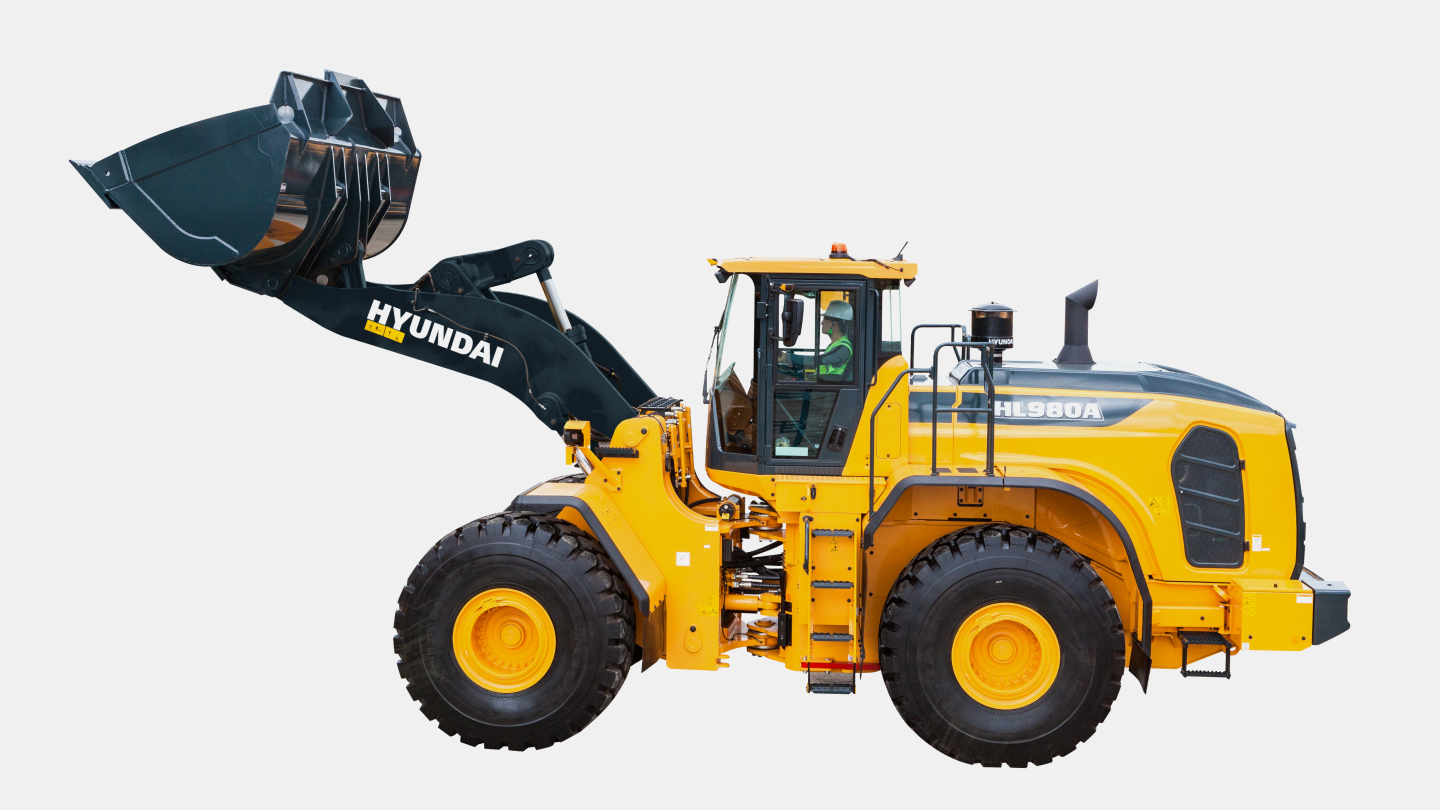

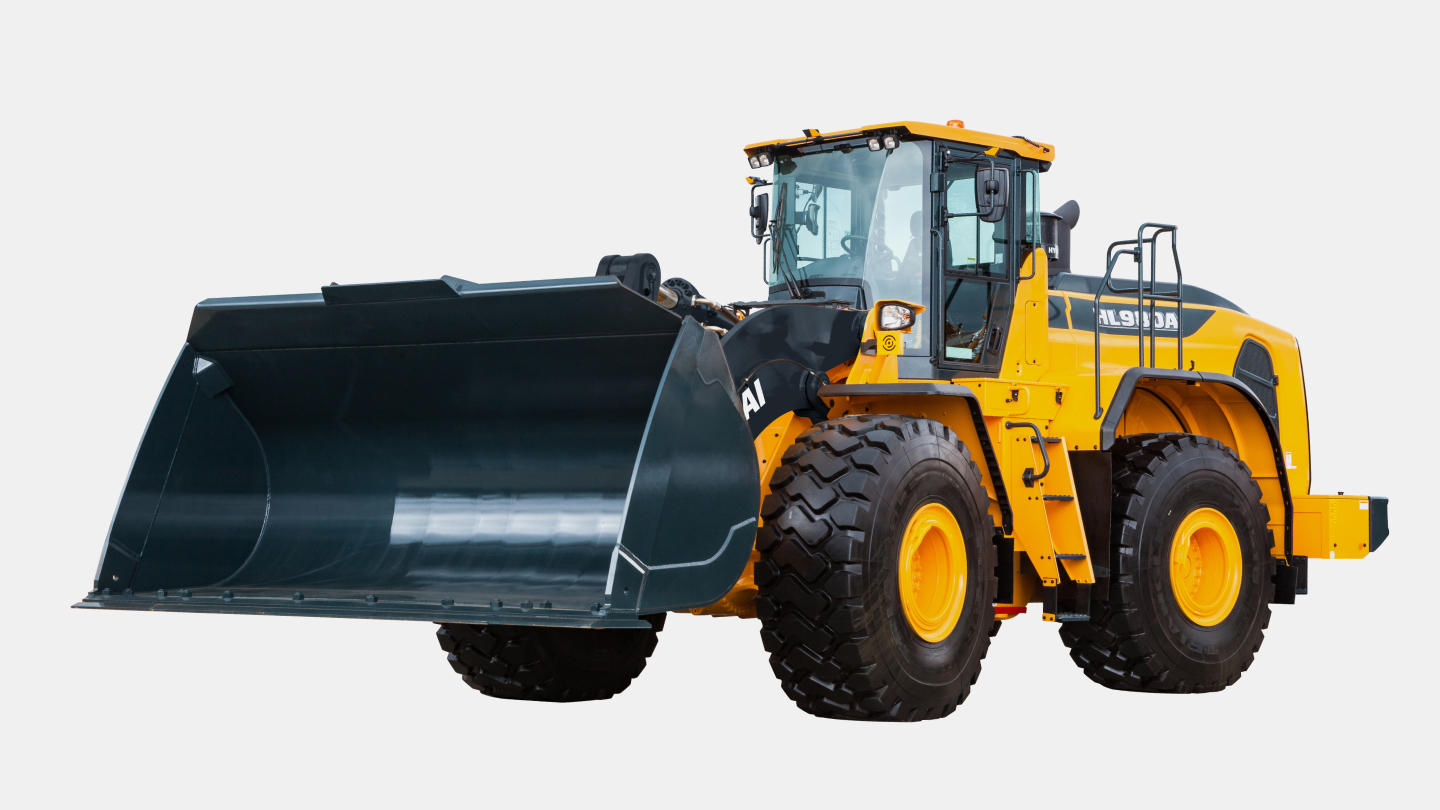

HL980A
-
Operating Weight
30.8 ton
-
Bucket Capacity
5.6 m³
-
Emission
STAGE V
-
Rated Power
355 hp / 2,000 rpm
- Catalog
Specifications
-
General
Operating Weight
30.8 ton
Bucket Capacity
5.6 m³
-
Engine
Emission
STAGE V
Engine model
X12
Rated Power
355 hp / 2,000 rpm
Max. Torque
189 kgf·m / 1,400 rpm
-
Hydraulic System
Type
Load sensing hydraulic system
-
Tank Capacity
Fuel tank
430 ℓ
Engine Oil
34 ℓ
Hydraulic tank
184 ℓ
-
Dimensions
Overall Length
9,610 mm
Overall Width
3,450 mm
Overall Height
3,865 mm
Ground clearance
495 mm
Wheelbase
3,700 mm
-
Tire
Type
Tubeless, loader design tires
Tires (STD)
29.5R25 L3 ★★
Option Include
29.5-25, 22PR L3 / 29.5-25 28PR L5 / 29.5R25 XHA ★
-
Performance
Tipping Load (Staight)
23,100 kg
Tipping Load (Full-Turn)
20,100 kg
Cycle time (Raise from Carry Position)
6.6 sec
Cycle time (Lower, empty, foat down)
4.8 sec
Cycle time (Dump, at maximum raise)
1.5 sec
Travel speed (forward, Maximum)
36.5 km/h
Travel speed (Reverse, Maximum)
25.3 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
4,615 mm
Dump Clearance at Maximum lift and 45˚ Discharge
3,300 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
