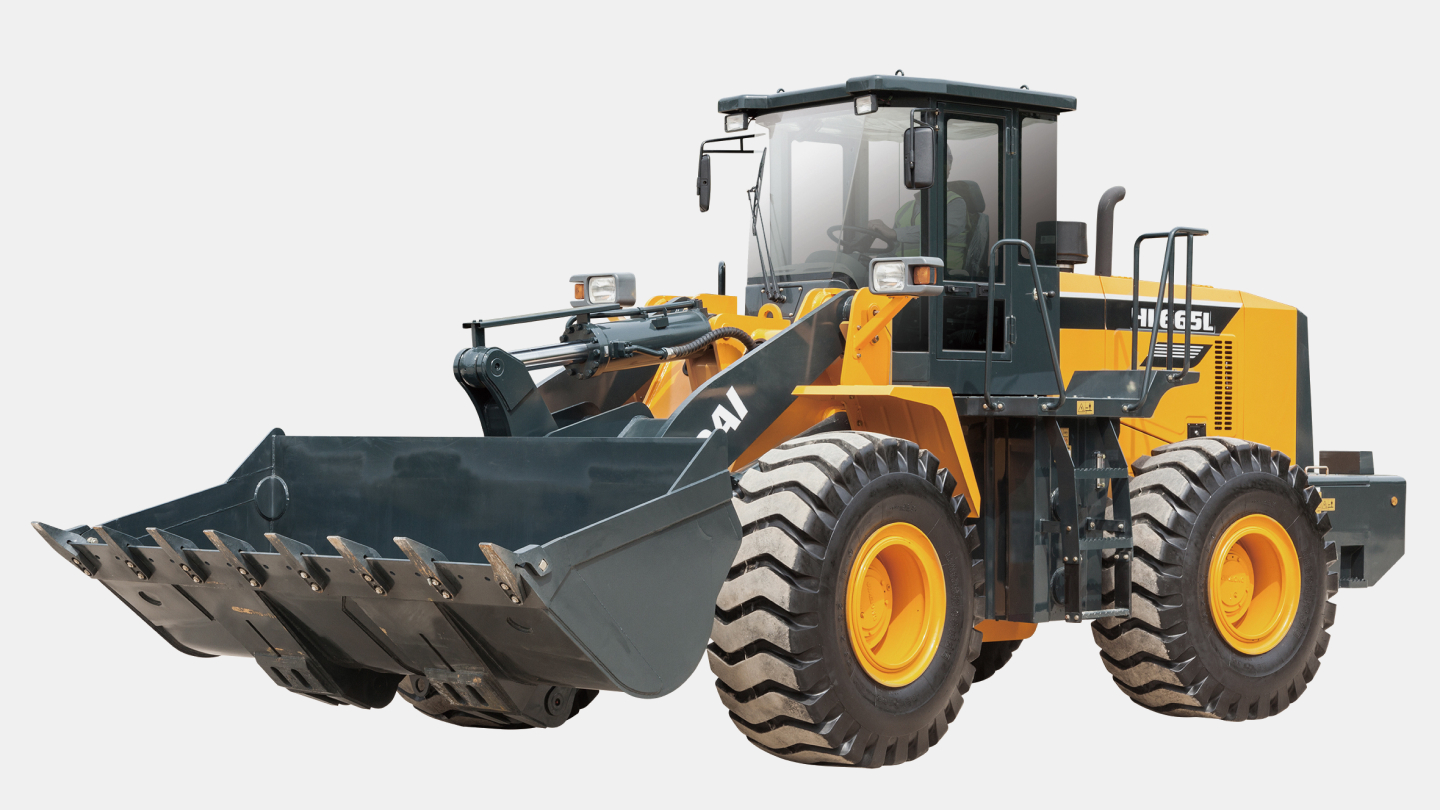

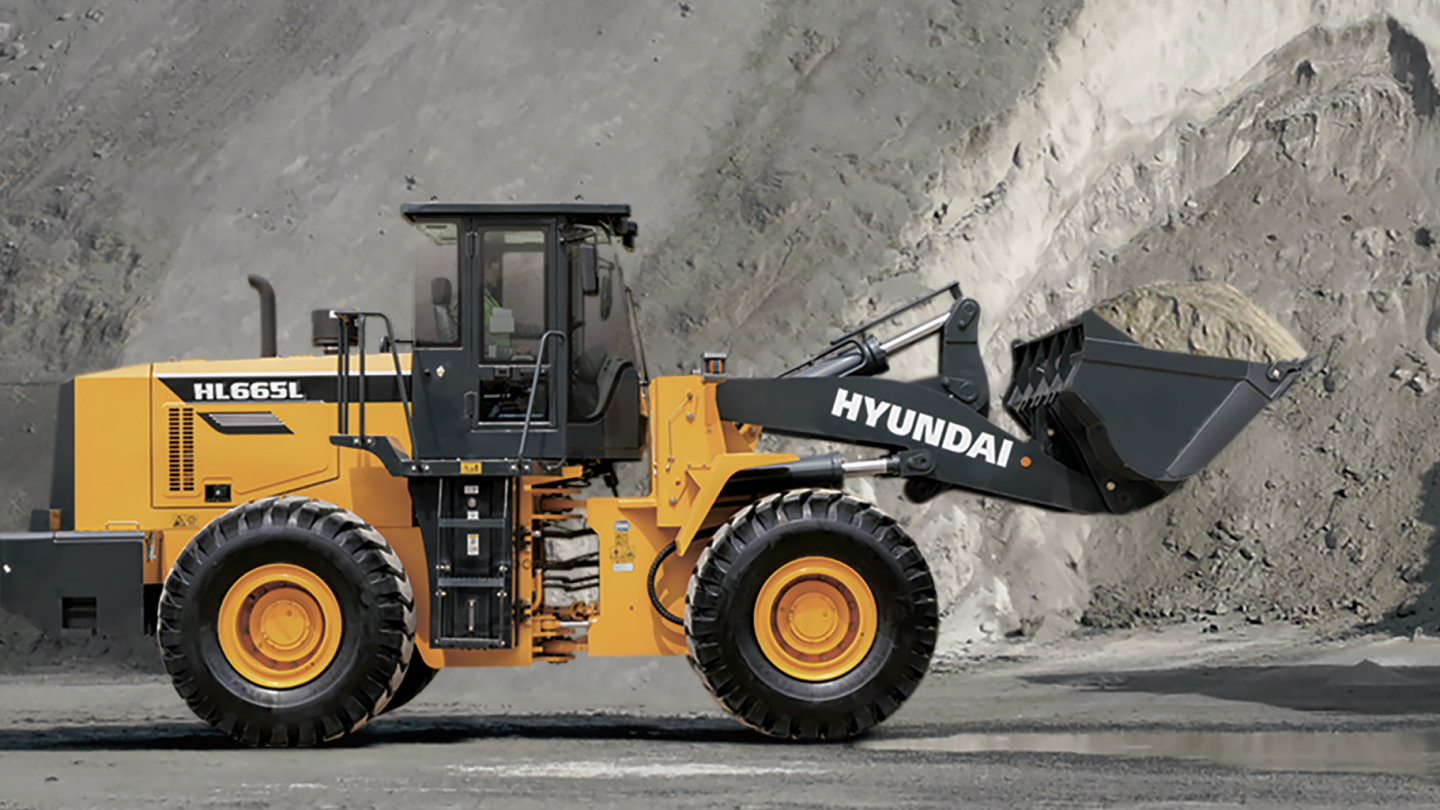

Wheel Loaders
HL665
-
Operating Weight
16.8 ton
-
Bucket Capacity
3.0 m³
-
Emission
TIER 2
-
Rated Power
217 hp / 2,000 rpm
- Catalog
Specifications
-
General
Operating Weight
16.8 ton
Bucket Capacity
3.0 m³
-
Engine
Emission
TIER 2
Engine model
WD10G220E23
Rated Power
217 hp / 2,000 rpm
-
Hydraulic System
Type
Fixed gear pump
-
Tank Capacity
Fuel tank
290 ℓ
Engine Oil
22 ℓ
Hydraulic tank
210 ℓ
-
Dimensions
Overall Length
7,750 mm
Overall Width
3,450 mm
Overall Height
2,990 mm
Ground clearance
512 mm
Wheelbase
2,920 mm
-
Tire
Tires (STD)
23.5-25 L3
-
Performance
Tipping Load (Staight)
10,272 kg
Tipping Load (Full-Turn)
10,000 kg
Cycle time (Raise from Carry Position)
5.1 sec
Cycle time (Lower, empty, foat down)
4.2 sec
Cycle time (Dump, at maximum raise)
1.3 sec
Travel speed (forward, Maximum)
36 km/h
Travel speed (Reverse, Maximum)
17 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
4,151 mm
Dump Clearance at Maximum lift and 45˚ Discharge
3,150 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color. - This product has images of similar models for reference, so there may be slight size differences compared to the actual product.
