Wheel Loaders

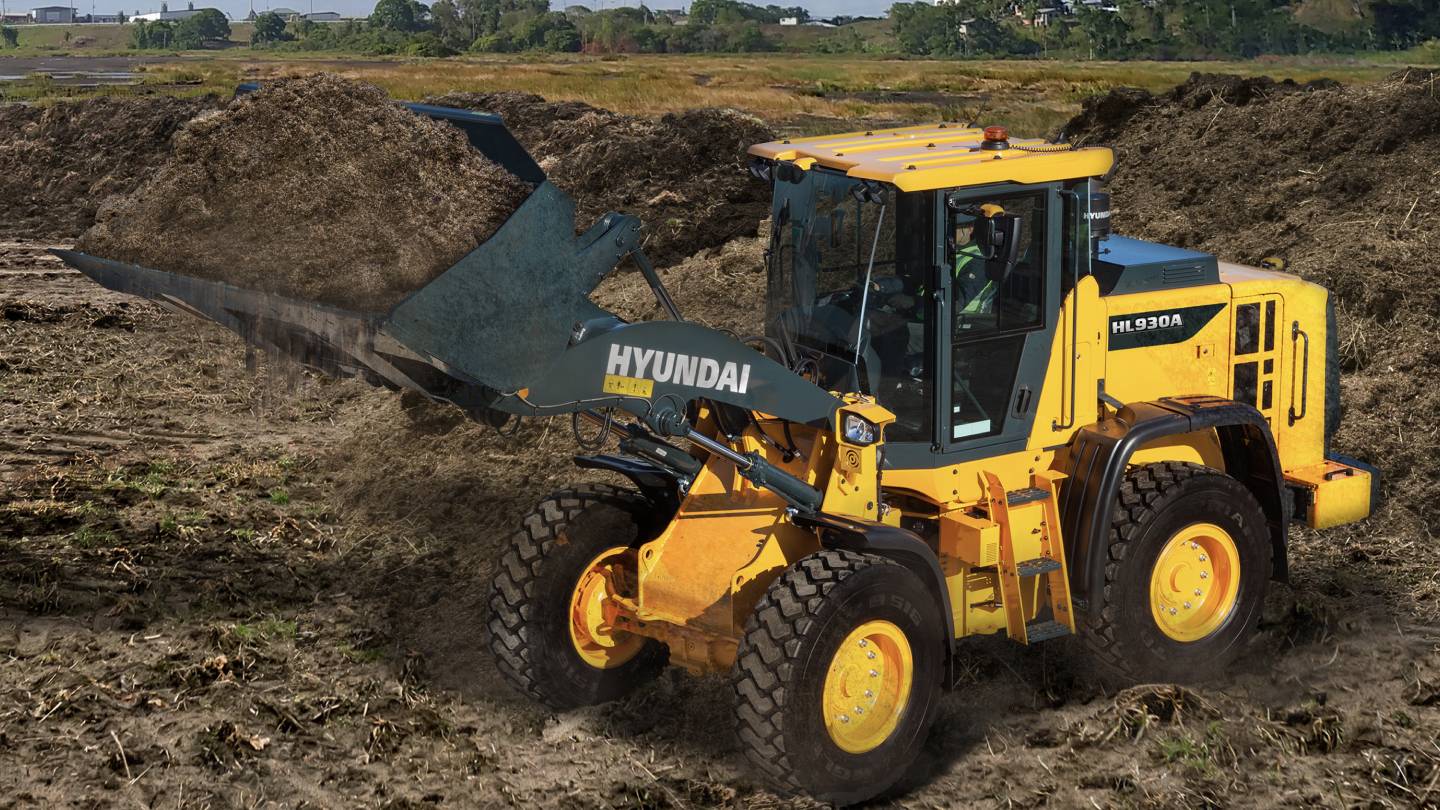

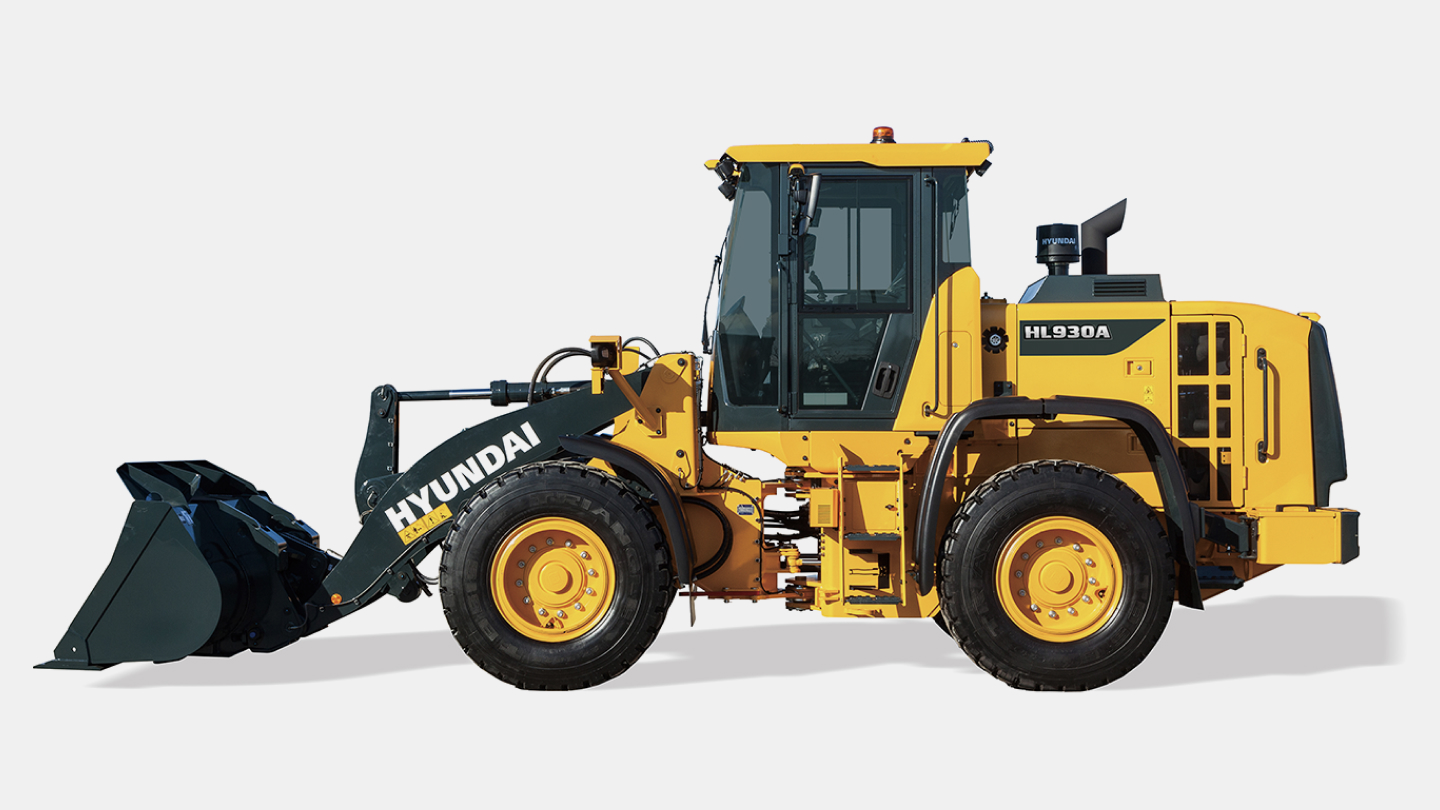

HL930A
-
Operating Weight
11.5 ton
-
Bucket Capacity
1.9 m³
-
Emission
STAGE V
-
Rated Power
99 kW / 2,200 rpm
- Catalog
Specifications
-
General
Operating Weight
11.5 ton
Bucket Capacity
1.9 m³
-
Engine
Emission
STAGE V
Engine model
B4.5
Rated Power
99 kW / 2,200 rpm
-
Hydraulic System
Type
Load sensing hydraulic system
-
Tank Capacity
Fuel tank
189.5 ℓ
Engine Oil
11 ℓ
Hydraulic tank
90 ℓ
-
Dimensions
Overall Length
6,090 mm
Overall Width
3,170 mm
Overall Height
2,375 mm
Ground clearance
370 mm
Wheelbase
2,900 mm
-
Tire
Type
Tubeless, loader design tires
Tires (STD)
17.5 R25, ★★, L3
Option Include
17.5 R25, ★, XHA / 17.5-25 12PR L3
-
Performance
Tipping Load (Staight)
9,100 kg
Tipping Load (Full-Turn)
8,000 kg
Cycle time (Raise from Carry Position)
5.8 sec
Cycle time (Lower, empty, foat down)
3.6 sec
Cycle time (Dump, at maximum raise)
2.2 sec
Travel speed (forward, Maximum)
39.5 km/h
Travel speed (Reverse, Maximum)
24.8 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
3,640 mm
Dump Clearance at Maximum lift and 45˚ Discharge
2,700 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
