Wheel Loaders

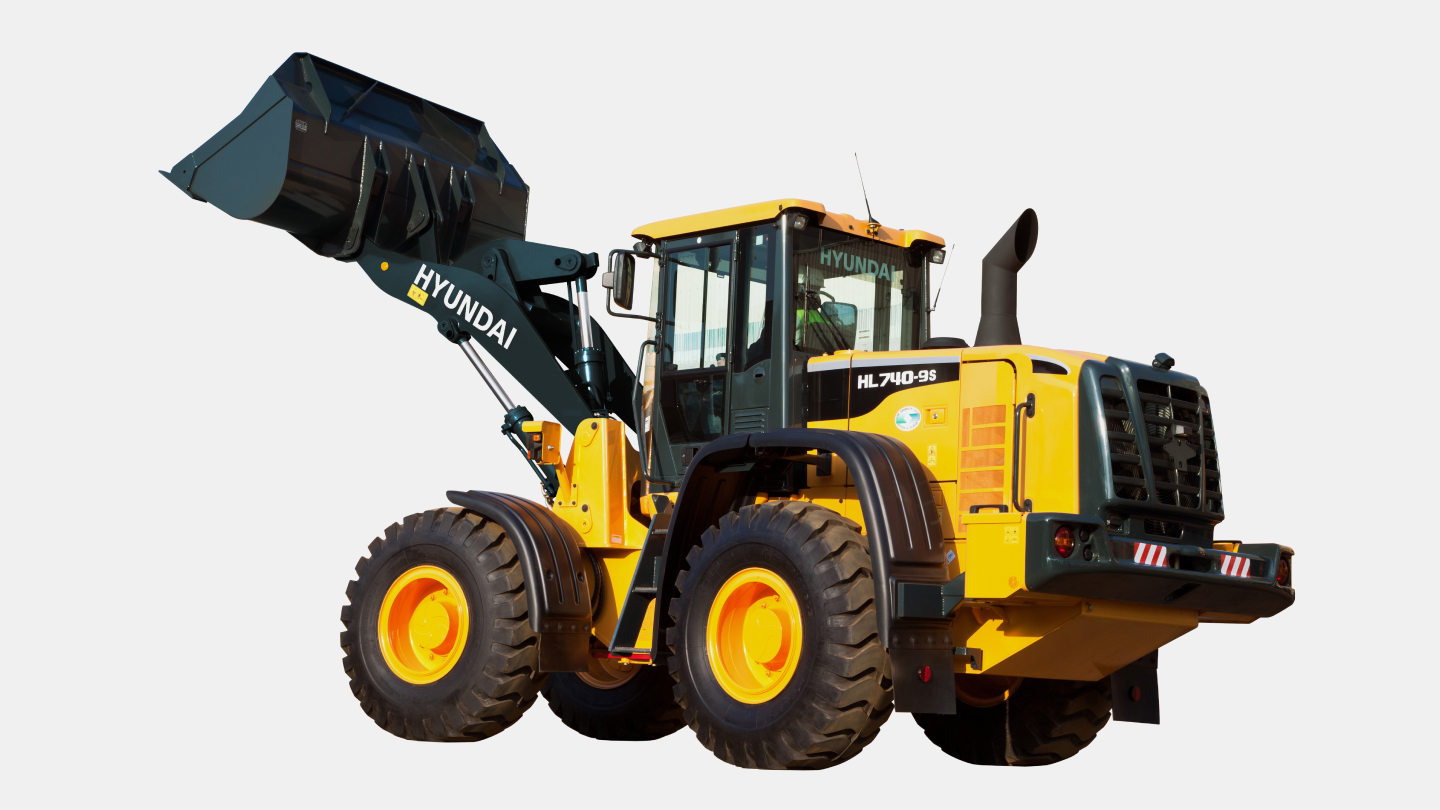

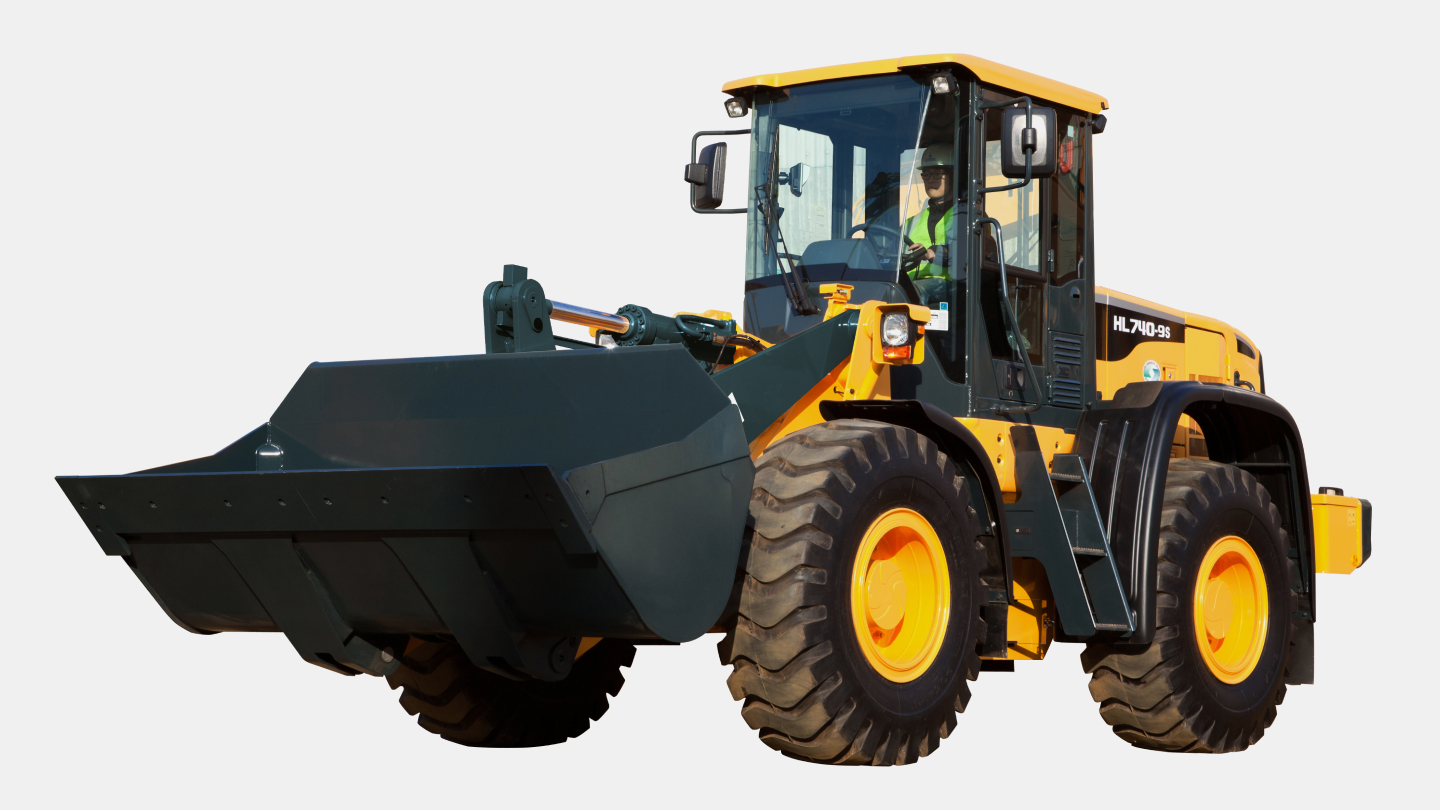

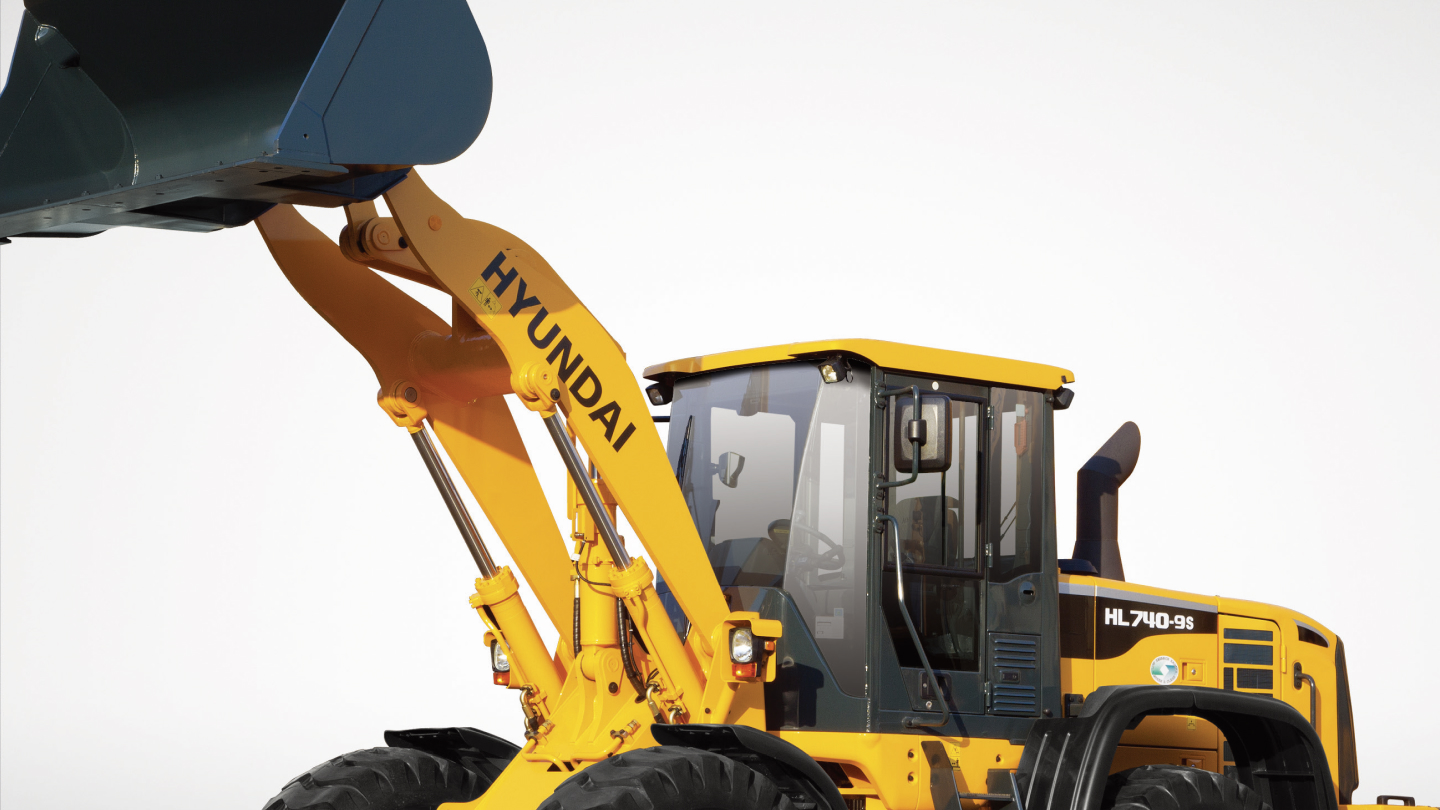

HL740-9S
-
Operating Weight
11.6 ton
-
Bucket Capacity
2.1 m³
-
Emission
N/A
-
Rated Power
150 hp / 2,200 rpm
- Catalog
Specifications
-
General
Operating Weight
11.6 ton
Bucket Capacity
2.1 m³
-
Engine
Emission
N/A
Engine model
6BTA5.9
Rated Power
150 hp / 2,200 rpm
Max. Torque
68 kgf·m / 1,400 rpm
-
Hydraulic System
Type
Open centered, tandem circuit system
-
Tank Capacity
Fuel tank
200 ℓ
Engine Oil
11 ℓ
Hydraulic tank
92 ℓ
-
Dimensions
Overall Length
7,260 mm
Overall Width
2,550 mm
Overall Height
3,310 mm
Ground clearance
417 mm
Wheelbase
2,900 mm
-
Tire
Tires (STD)
17.5-25, L3
-
Performance
Tipping Load (Staight)
9,120 kg
Tipping Load (Full-Turn)
7,890 kg
Cycle time (Raise from Carry Position)
5.8 sec
Cycle time (Lower, empty, foat down)
3.1 sec
Cycle time (Dump, at maximum raise)
1.3 sec
Travel speed (forward, Maximum)
37 km/h
Travel speed (Reverse, Maximum)
23 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
3,830 mm
Dump Clearance at Maximum lift and 45˚ Discharge
2,730 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
