Wheel Loaders

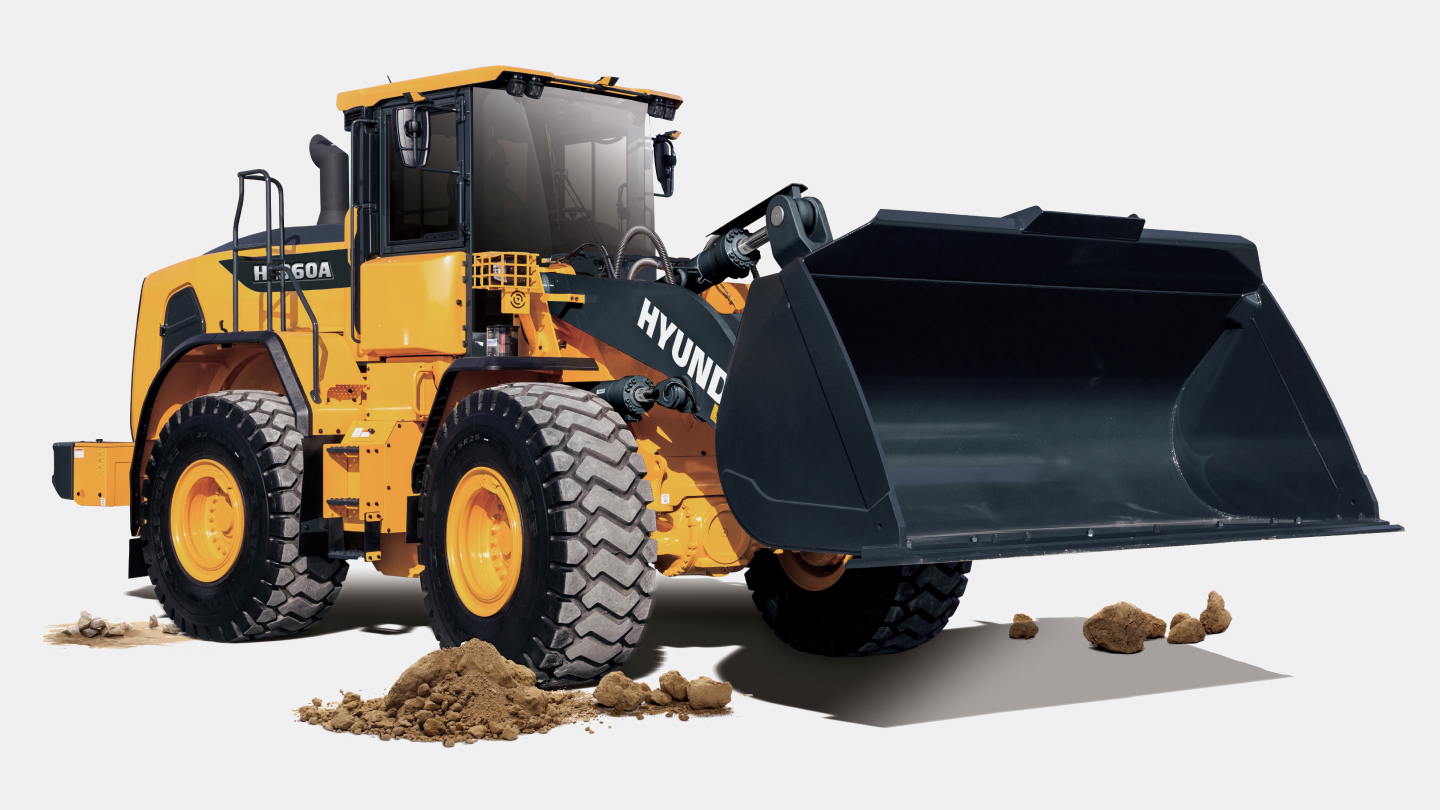

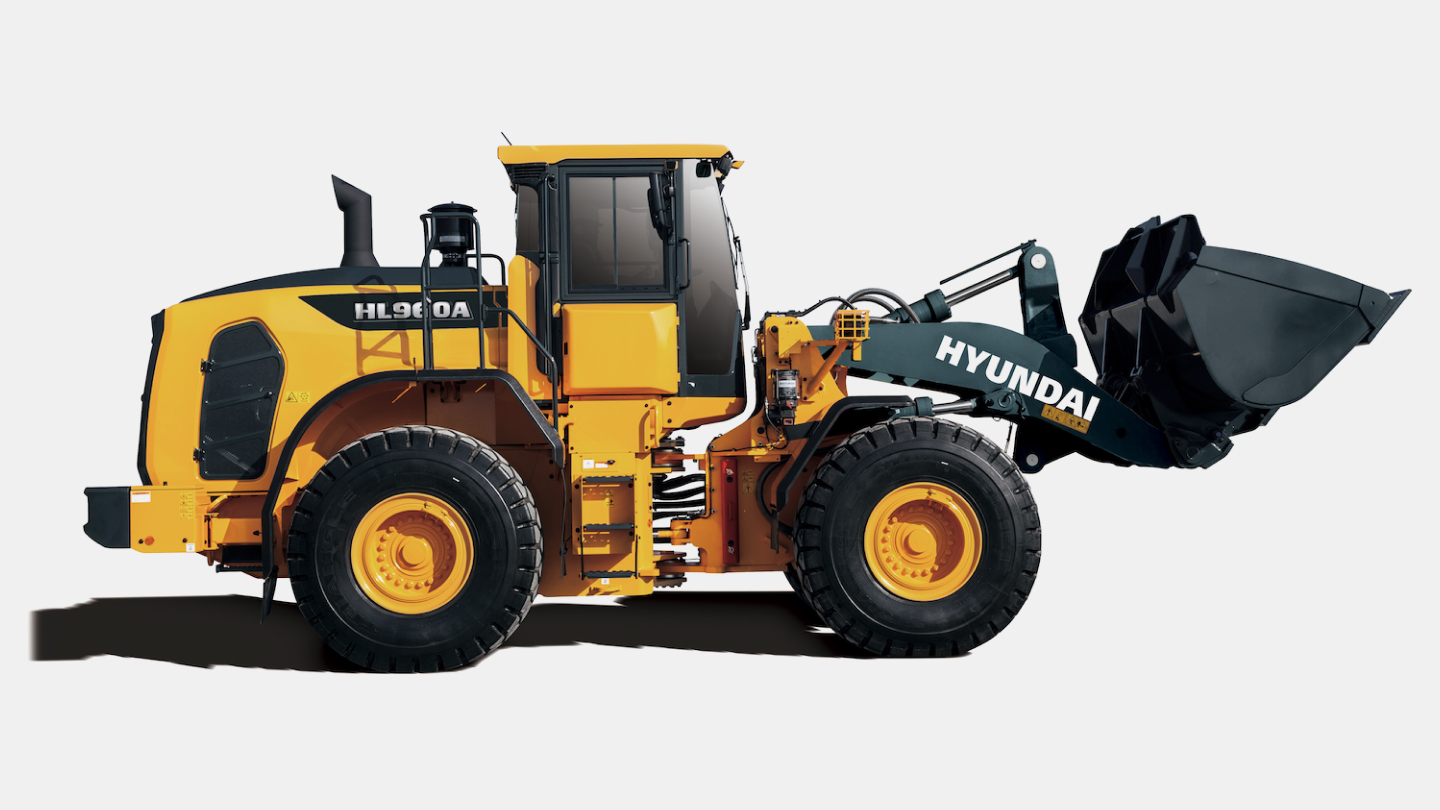

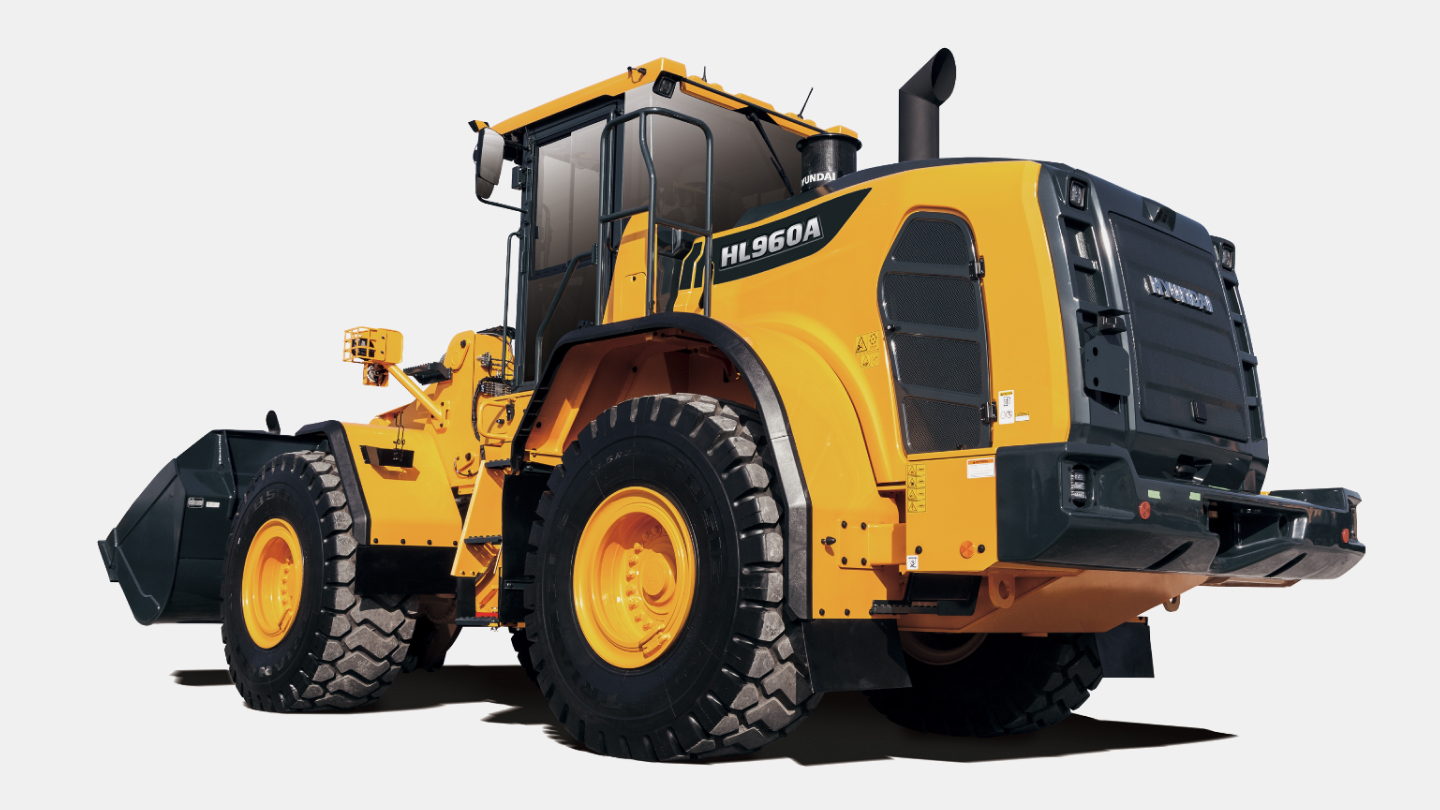

HL960A
-
Operating Weight
19.2 ton
-
Bucket Capacity
3.3 m³
-
Emission
STAGE V
-
Rated Power
225 hp / 2,200 rpm
- Catalog
Specifications
-
General
Operating Weight
19.2 ton
Bucket Capacity
3.3 m³
-
Engine
Emission
STAGE V
Engine model
B6.7
Rated Power
225 hp / 2,200 rpm
Max. Torque
121 kgf·m / 1,300 rpm
-
Hydraulic System
Type
Load sensing hydraulic system
-
Tank Capacity
Fuel tank
260 ℓ
Engine Oil
18 ℓ
Hydraulic tank
110 ℓ
-
Dimensions
Overall Length
8,140 mm
Overall Width
2,900 mm
Overall Height
3,450 mm
Ground clearance
410 mm
Wheelbase
3,300 mm
-
Tire
Type
Tubeless, loader design tires
Tires (STD)
23.5 R25, ★★, L3
Option Include
23.5 R25, ★, XHA / 23.5-25, 20PR, L3 / 23.5-25, 20PR, L5 / 23.5-25, Solid tire
-
Performance
Tipping Load (Staight)
14,300 kg
Tipping Load (Full-Turn)
12,410 kg
Cycle time (Raise from Carry Position)
5.9 sec
Cycle time (Lower, empty, foat down)
3.5 sec
Cycle time (Dump, at maximum raise)
1.5 sec
Travel speed (forward, Maximum)
39 km/h
Travel speed (Reverse, Maximum)
25.7 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
4,105 mm
Dump Clearance at Maximum lift and 45˚ Discharge
2,935 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
