Wheel Loaders

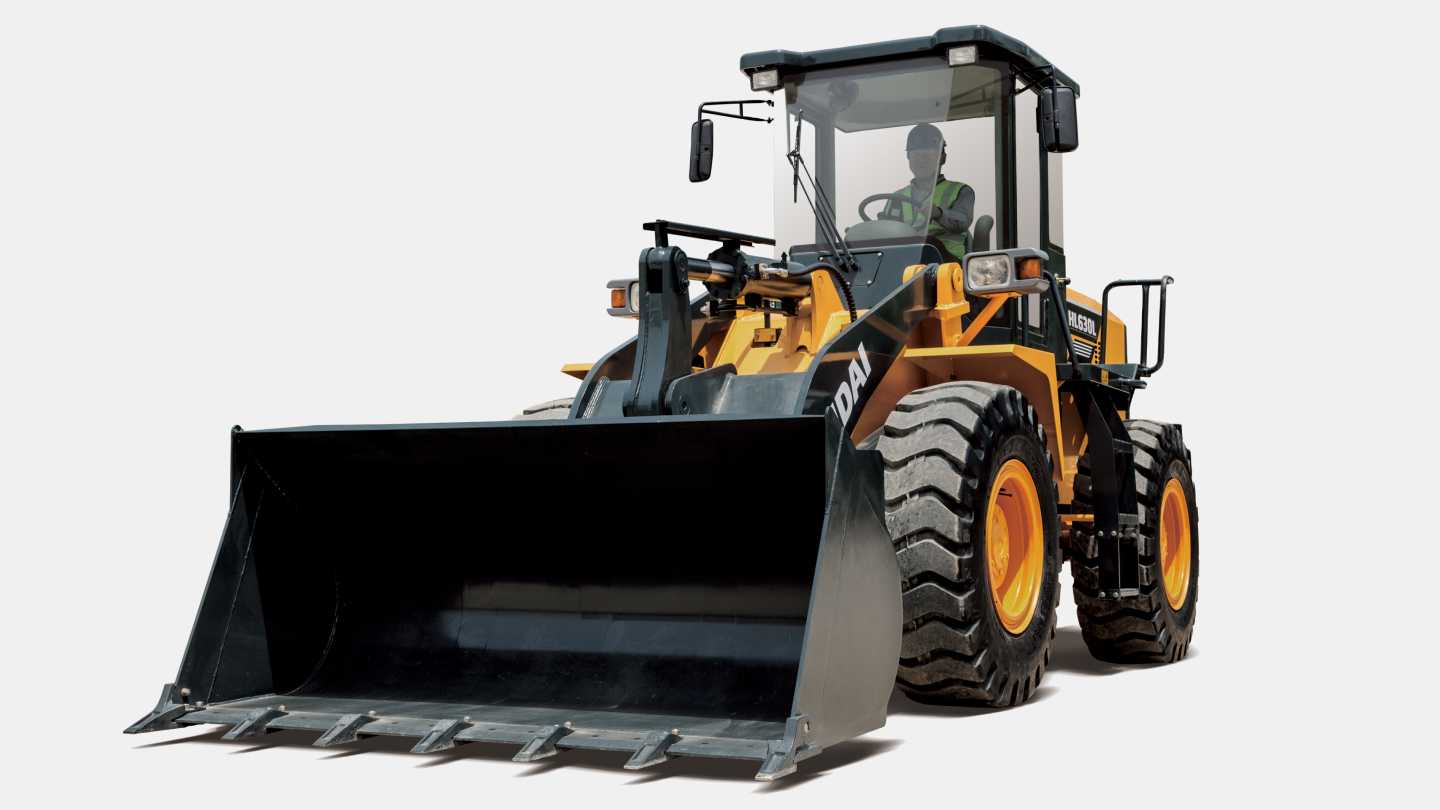

HL635L
-
Operating Weight
10.3 ton
-
Bucket Capacity
1.7 m³
-
Emission
TIER 2
-
Rated Power
123 hp / 2,000 rpm
- Catalog
Specifications
-
General
Operating Weight
10.3 ton
Bucket Capacity
1.7 m³
-
Engine
Emission
TIER 2
Engine model
WP6G125E23
Rated Power
123 hp / 2,000 rpm
-
Hydraulic System
Type
Fixed gear pump
-
Tank Capacity
Fuel tank
200 ℓ
Engine Oil
13 ℓ
Hydraulic tank
140 ℓ
-
Dimensions
Overall Length
7,040 mm
Overall Width
3,200 mm
Overall Height
2,460 mm
Ground clearance
345 mm
Wheelbase
2,750 mm
-
Tire
Tires (STD)
17.5-25 L3
-
Performance
Tipping Load (Staight)
7,377 kg
Tipping Load (Full-Turn)
6,000 kg
Cycle time (Raise from Carry Position)
5.1 sec
Cycle time (Lower, empty, foat down)
2.6 sec
Cycle time (Dump, at maximum raise)
1.4 sec
Travel speed (forward, Maximum)
36 km/h
Travel speed (Reverse, Maximum)
29 km/h
-
Operating Range
Hinge Pin Height at Maximum Lift
3,683 mm
Dump Clearance at Maximum lift and 45˚ Discharge
2,850 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
