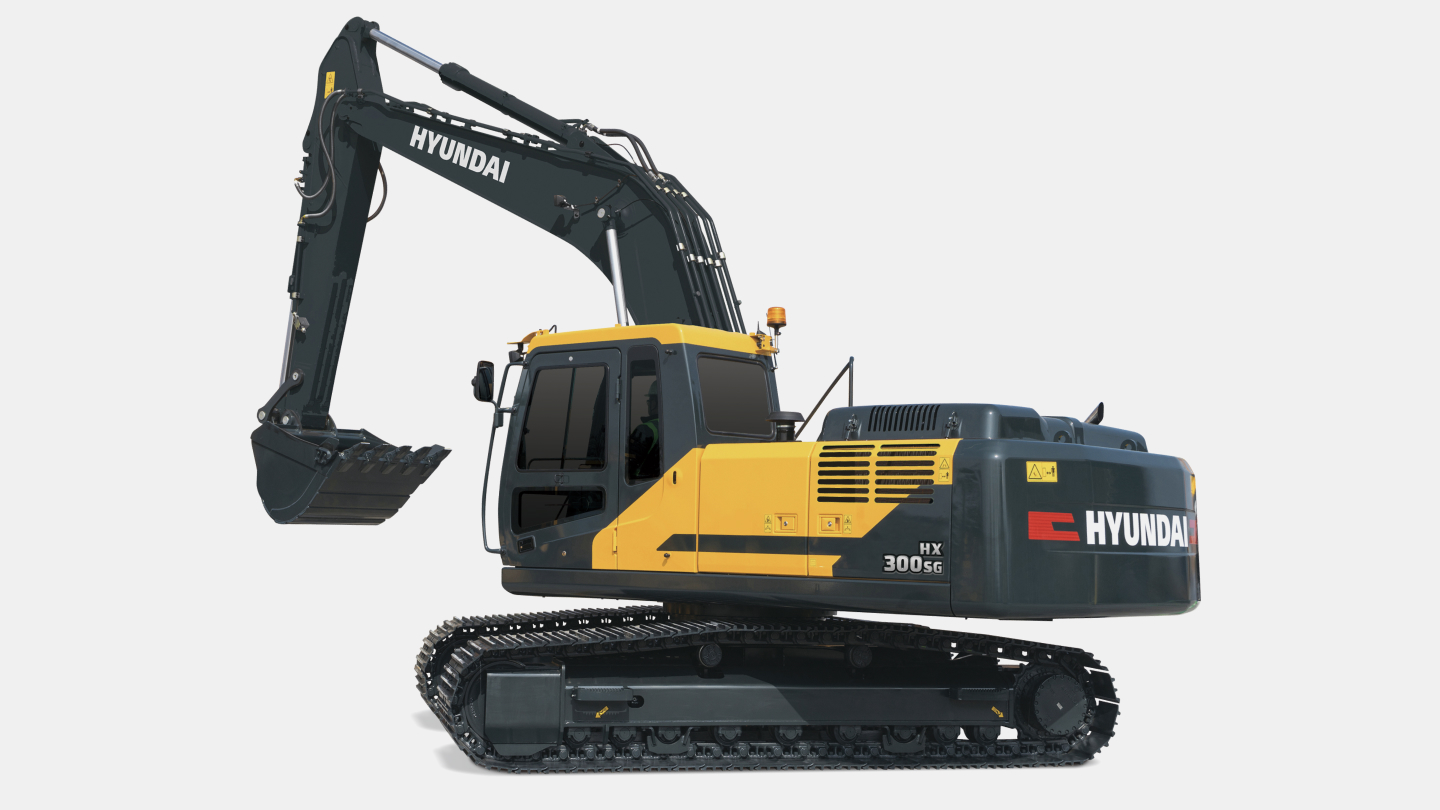

Excavators
Type
Medium Excavators
Operating Weight
29.5  ton
Emission
TIER 3
Rated Power
227  hp / 1,900 rpm
General
Type
Medium Excavators
Operating Weight
29.5  ton
Bucket Capacity
1.27  m³
Engine
Emission
TIER 3
Engine model
HYUNDAI HE6.7
Rated Power
227  hp / 1,900 rpm
Max. Torque
97  kgf·m / 1,400 rpm
Hydraulic System
Main Pumps Rated Flow
2x266  ℓ/min
Implement Circuit
330  kgf/cm²
Tank Capacity
Fuel Tank
480  ℓ
Hydraulic Tank
210.0  ℓ
Performance
Swing Speed
11.1  rpm
Travel Speed
5.2  km/h
Max. Traction Force
25,800  kgf
Max. Gradeability
35  deg
Bucket Digging Force (ISO)
19,600  kgf
Dimensions
Overall Length
10,590  mm
Overall Width
3,200  mm
Overall Height
3,330  mm
Tail Swing Radius
3,200  mm
Tumbler Distance
4,030  mm
Ground Clearance
500  mm
Operating Range
Boom Length
6,250  mm
Arm Length
3,050  mm
Max. Digging Reach
10,810  mm
Max. Digging Depth
7,330  mm
Max. Digging Height
10,200  mm
Max. Dumping Height
7,150  mm
Min. Swing Radius
4,270  mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
