Excavators

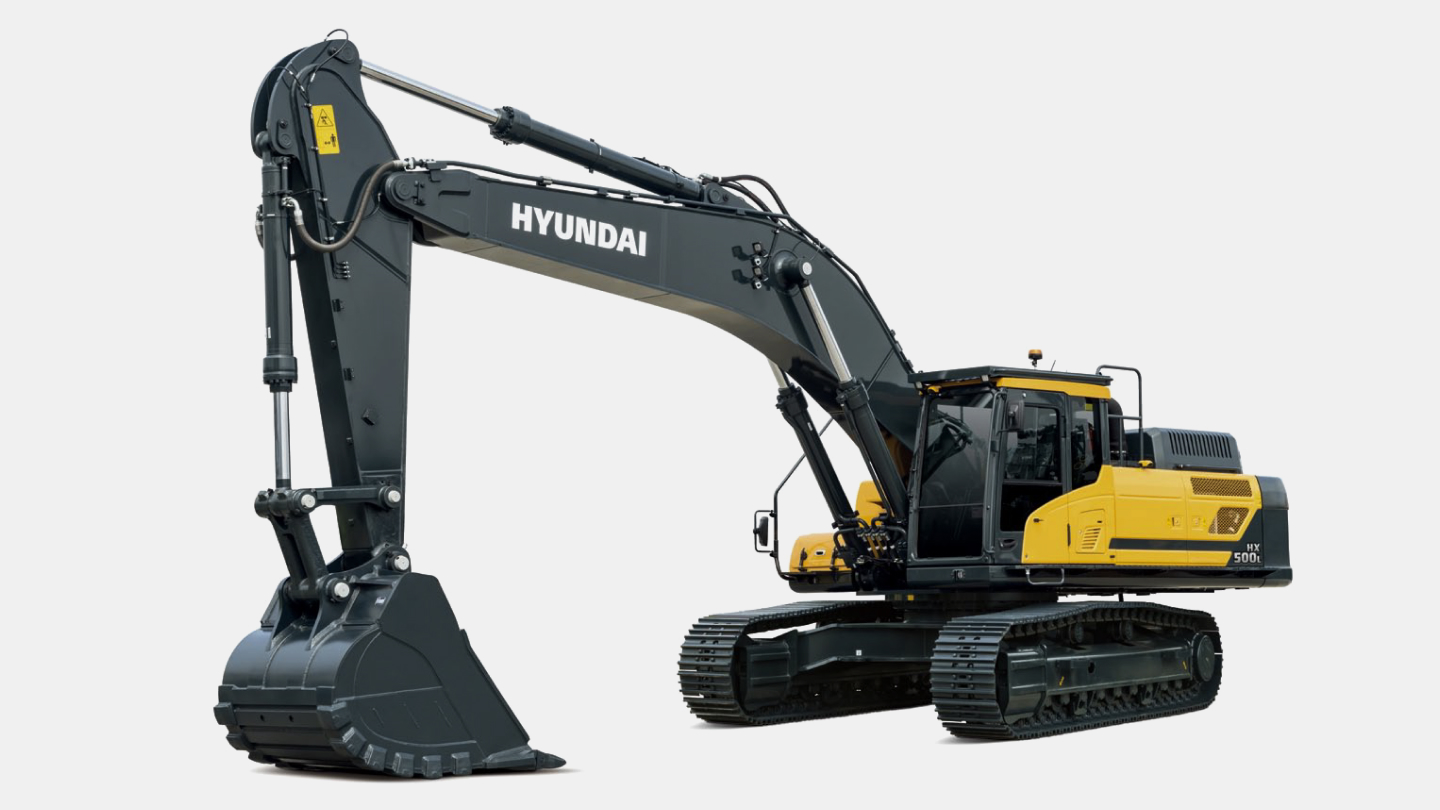

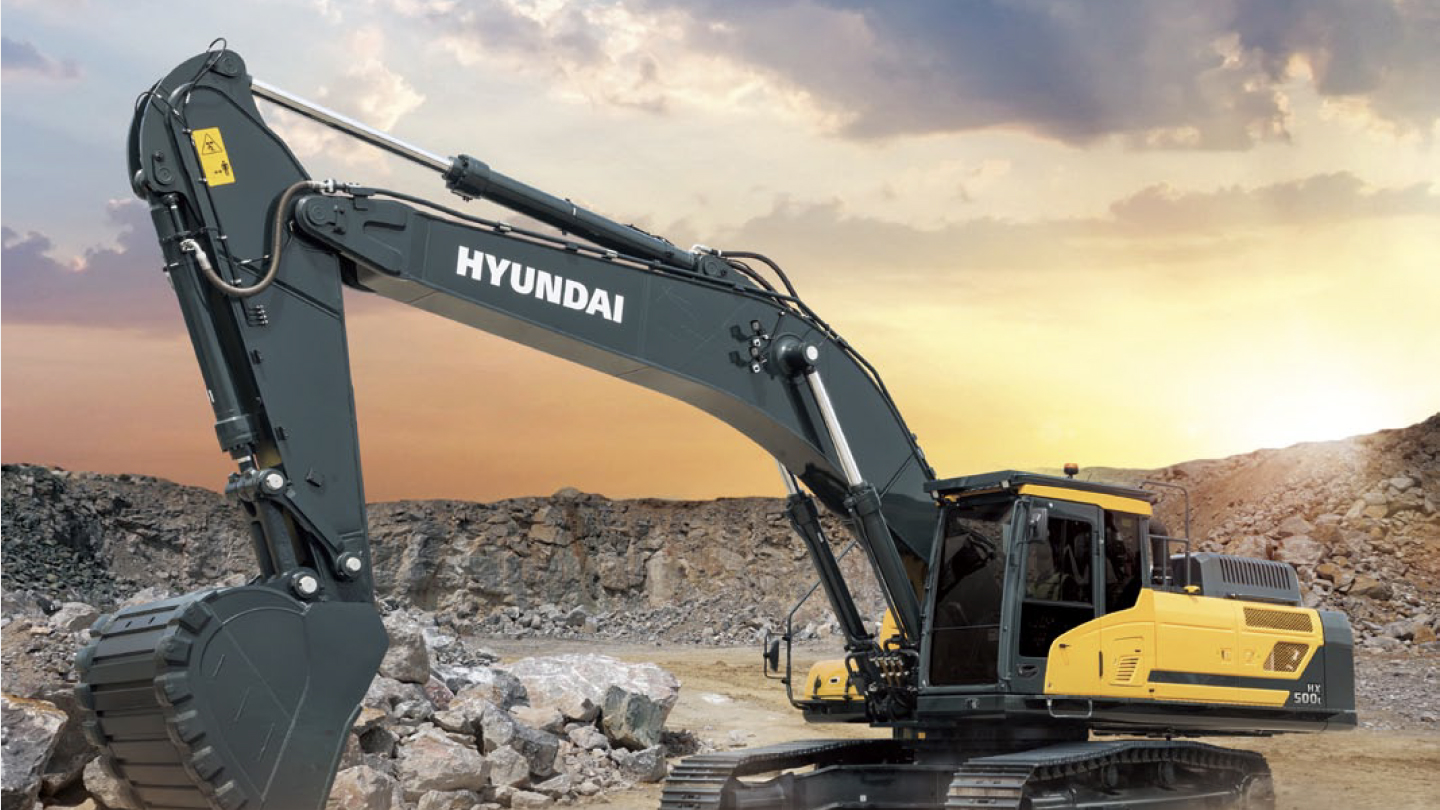

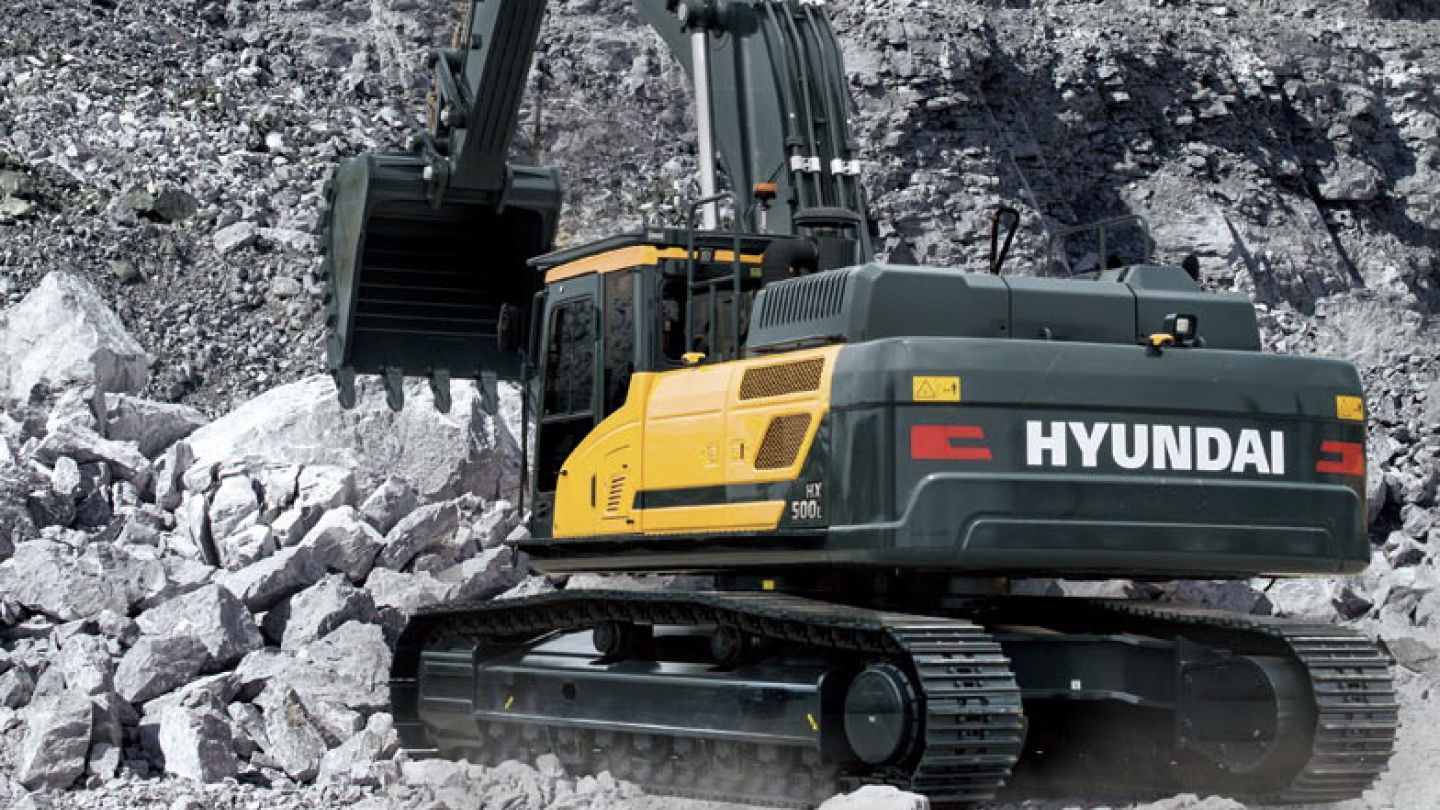

HX500L(T3)
-
Type
Large Excavators
-
Operating Weight
49.9 ton
-
Emission
TIER 3
-
Rated Power
335 hp / 2,100 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
49.9 ton
Bucket Capacity
3.2 m³1.38 ~ 3.20m³
-
Engine
Emission
TIER 3
Engine model
CUMMINS / X12
Rated Power
335 hp / 2,100 rpm
Max. Torque
170 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2 × 394 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
660 ℓ
Hydraulic Tank
275 ℓ
-
Performance
Swing Speed
8.8 rpm
Travel Speed
5.5 km/h
Max. Traction Force
39,674 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
25,200 kgf
Arm Digging Force (ISO)
20,900 kgf
-
Dimensions
Overall Length
12,160 mm
Overall Width
3,540 mm
Overall Height
3,850 mm
Tail Swing Radius
3,800 mm
Tumbler Distance
4,470 mm
Ground Clearance
1,370 mm
-
Operating Range
Boom Length
7,060 mm
Arm Length
3,380 mm
Max. Digging Reach
12,060 mm
Max. Digging Depth
7,730 mm
Max. Digging Height
11,060 mm
Max. Dumping Height
7,710 mm
Min. Swing Radius
4,870 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
