Excavators

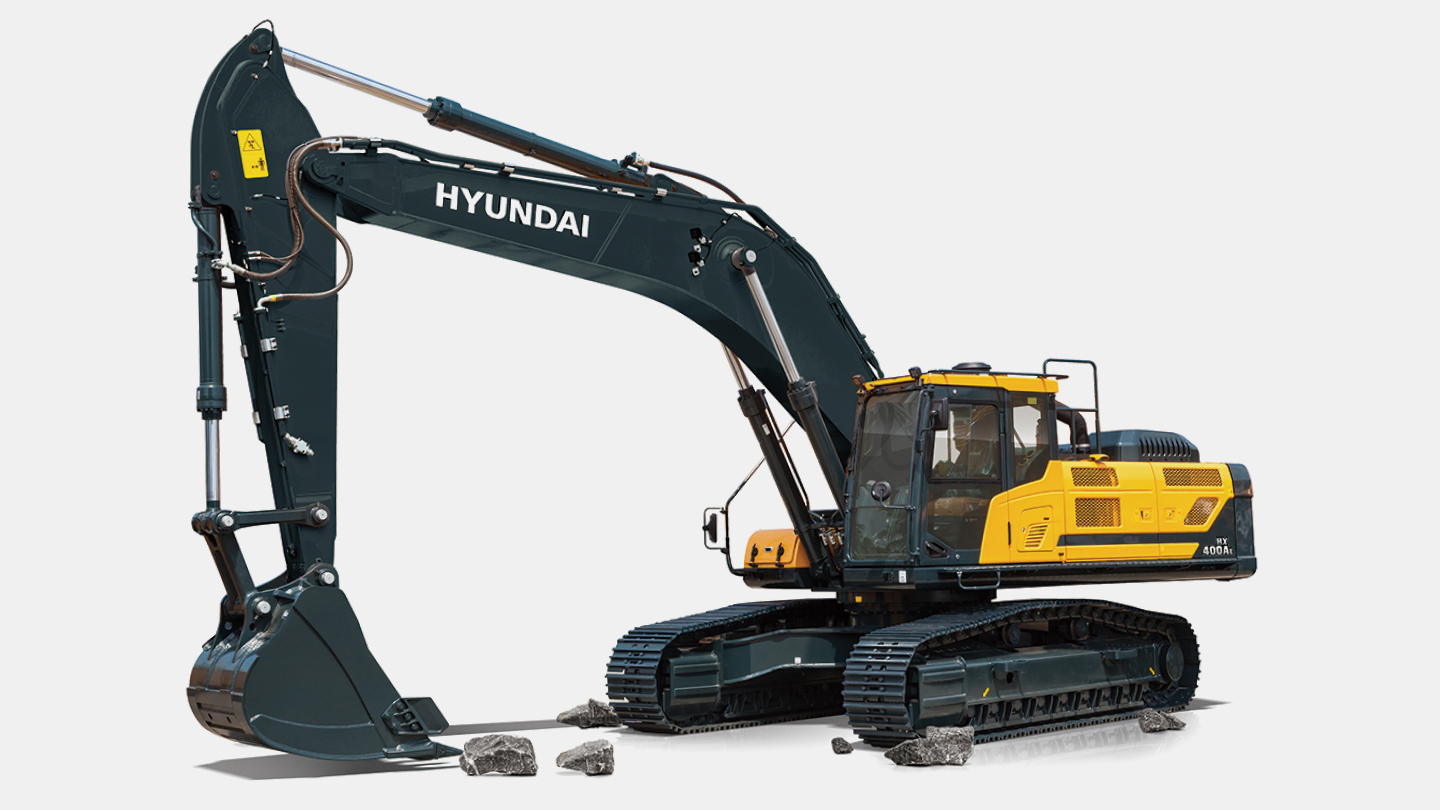

HX400AL (TURKEY)
-
Type
Large Excavators
-
Operating Weight
39.100 ton
-
Emission
STAGE V
-
Rated Power
365 hp / 2,100 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
39.100 ton
Bucket Capacity
2.32 m³1.46~2.32m³
-
Engine
Emission
STAGE V
Engine model
Cummins / L9
Rated Power
365 hp / 2,100 rpm
Max. Torque
183 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2×340 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
600 ℓ
Hydraulic Tank
210 ℓ
DEF/ ADBLUE Tank
70 ℓ
-
Performance
Swing Speed
10.4 rpm
Travel Speed
5.7 km/h
Max. Traction Force
32,517 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
23,300 kgf
Arm Digging Force (ISO)
17,000 kgf
-
Dimensions
Overall Length
11,410 mm
Overall Width
3,540 mm
Overall Height
3,560 mm
Tail Swing Radius
3,620 mm
Tumbler Distance
4,340 mm
Ground Clearance
550 mm
-
Operating Range
Boom Length
6,500 mm
Arm Length
3,200 mm
Max. Digging Reach
11,270 mm
Max. Digging Depth
7,360 mm
Max. Digging Height
10,680 mm
Max. Dumping Height
7,480 mm
Min. Swing Radius
4,310 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
