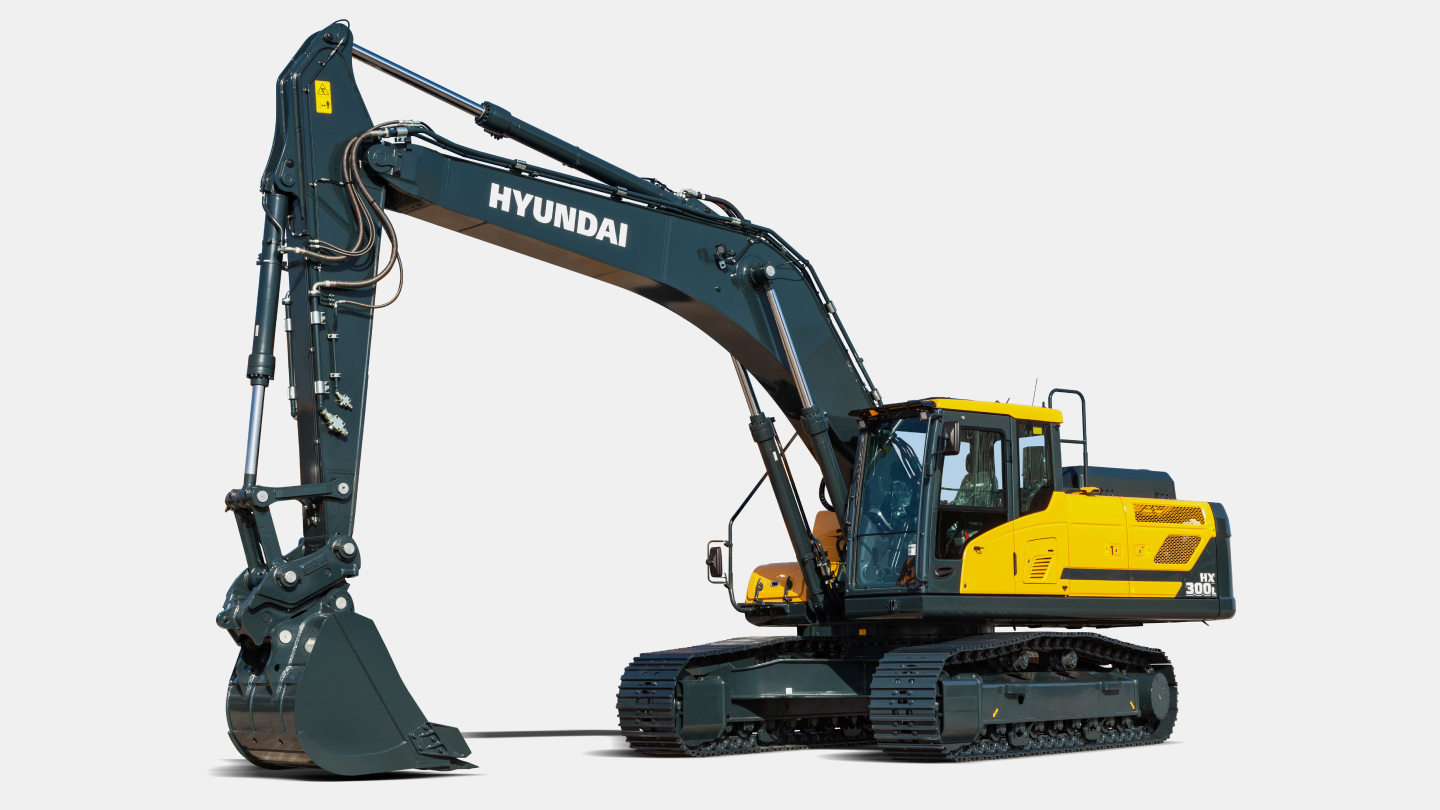

Excavators
Type
Large Excavators
Operating Weight
29.98  ton
Emission
TIER 3
Rated Power
220  hp / 2,000 rpm
General
Type
Large Excavators
Operating Weight
29.98  ton
Bucket Capacity
1.27  m³
Engine
Emission
TIER 3
Engine model
HYUNDAI HE6.7
Rated Power
220  hp / 2,000 rpm
Max. Torque
97  kgf·m / 1,400 rpm
Hydraulic System
Main Pumps Rated Flow
2x277  ℓ/min
Implement Circuit
350  kgf/cm²
Tank Capacity
Fuel Tank
500  ℓ
Hydraulic Tank
190  ℓ
Performance
Swing Speed
11.56  rpm
Travel Speed
5.9  km/h
Max. Traction Force
27,405  kgf
Max. Gradeability
35  deg
Bucket Digging Force (ISO)
21,380  kgf
Arm Digging Force (ISO)
15,160  kgf
Dimensions
Overall Length
10,600  mm
Overall Width
3,400  mm
Overall Height
3,320  mm
Tail Swing Radius
3,345  mm
Tumbler Distance
4,030  mm
Ground Clearance
500  mm
Operating Range
Boom Length
6,250  mm
Arm Length
3,050  mm
Max. Digging Reach
10,810  mm
Max. Digging Depth
7,330  mm
Max. Digging Height
10,200  mm
Max. Dumping Height
7,150  mm
Min. Swing Radius
4,270  mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
