Excavators

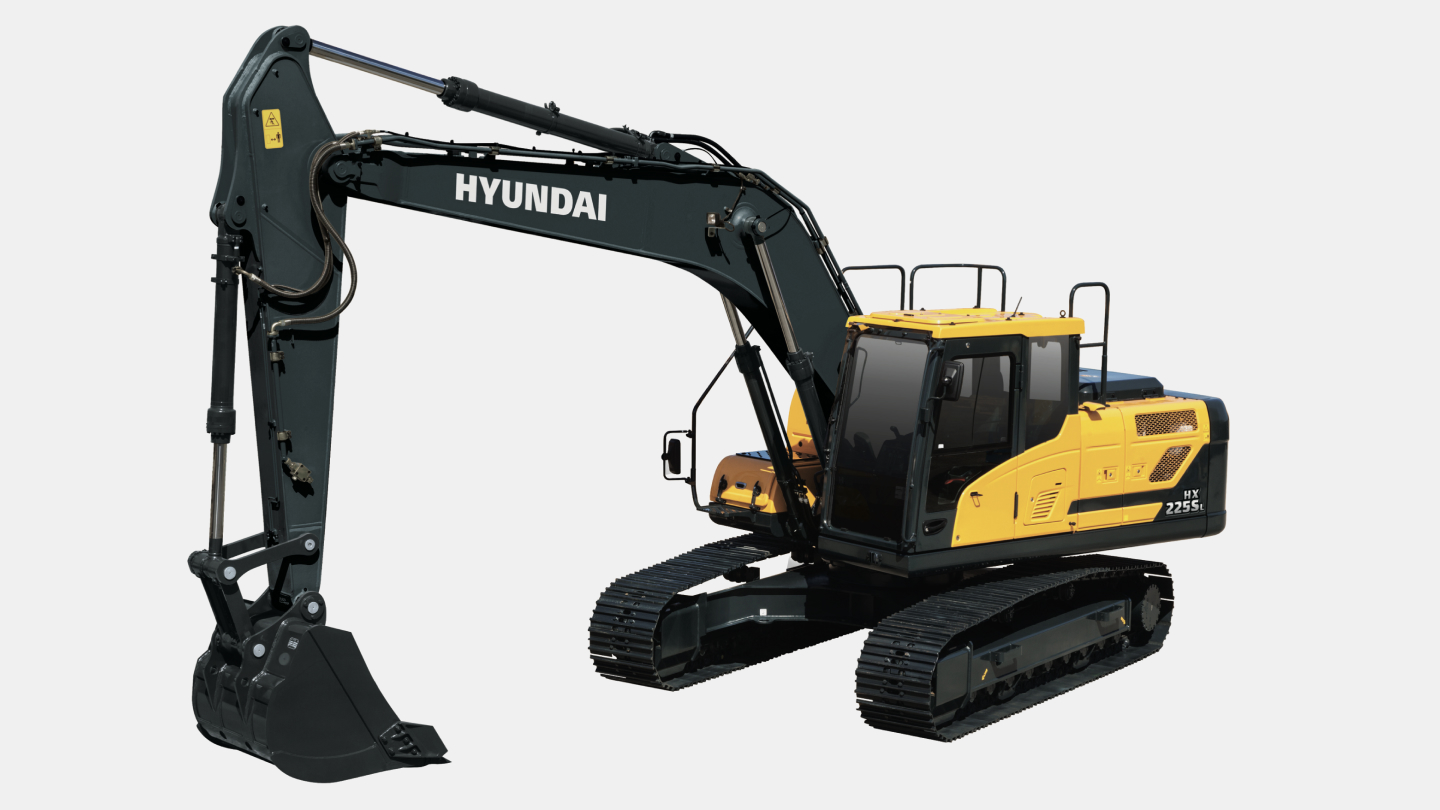

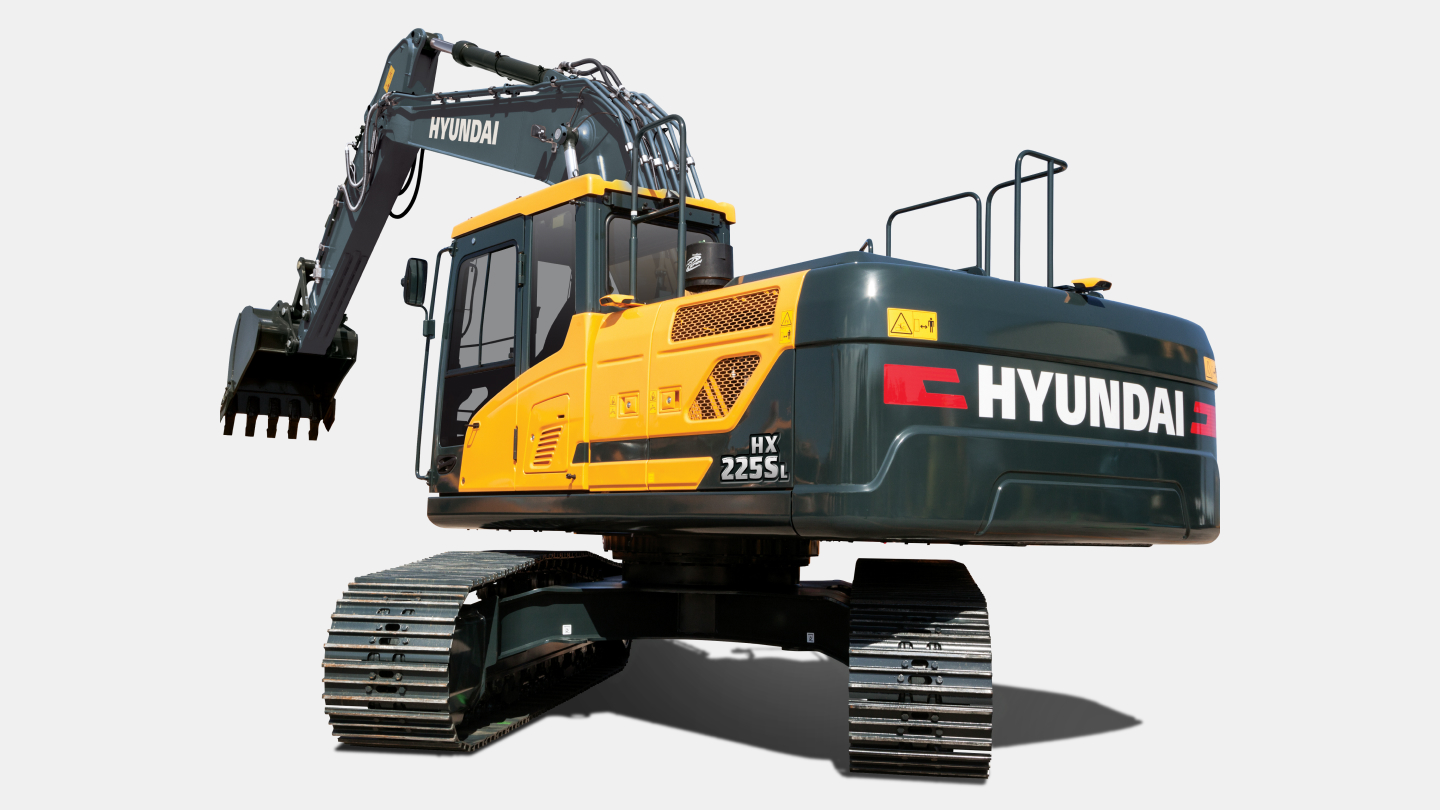

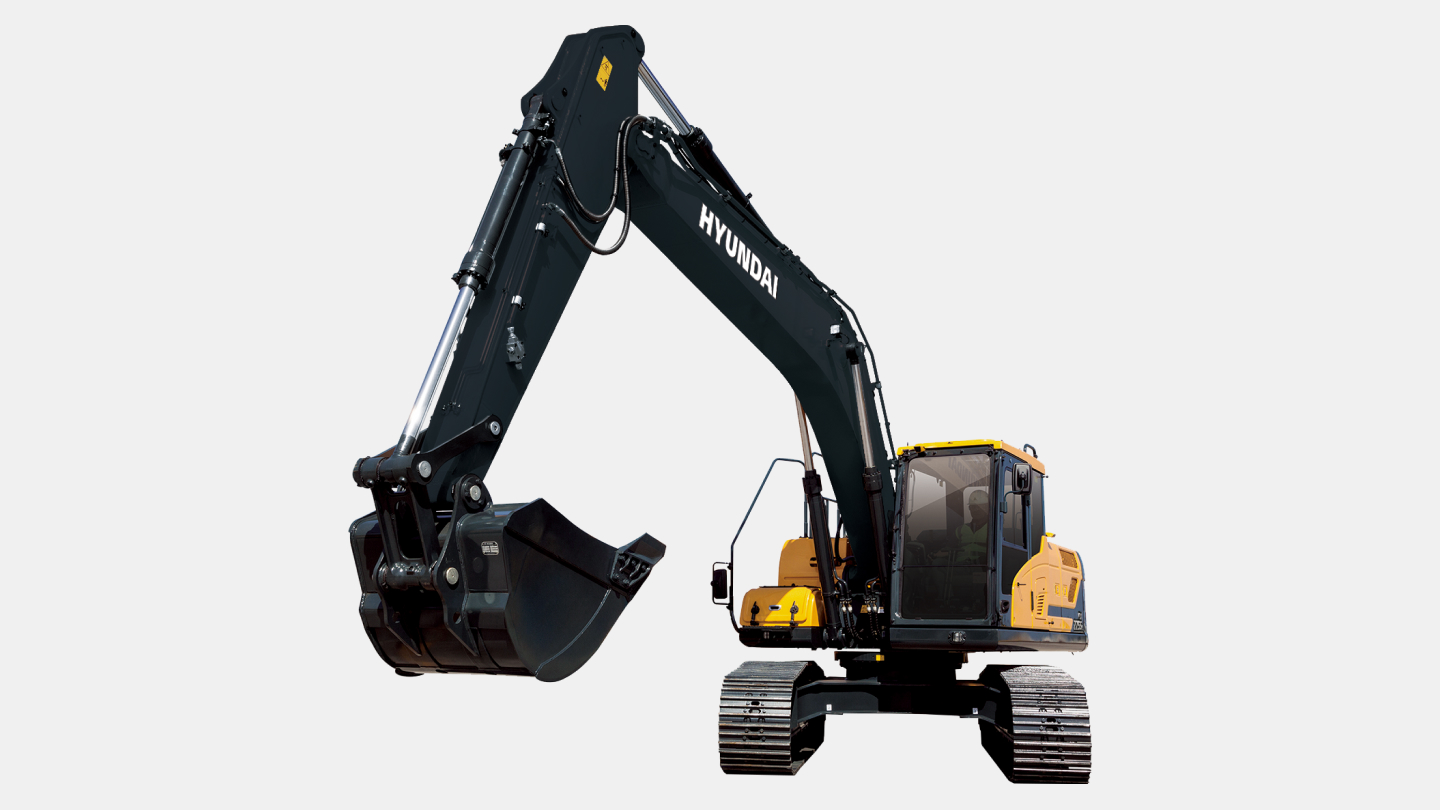

HX225SL
-
Type
Medium Excavators
-
Operating Weight
22.07 ton
-
Emission
TIER 2
-
Rated Power
150 hp / 1,950 rpm
- English Catalog French Catalog
3D View
This 3D image is for illustrative purposes only and may not represent the actual product.
Specifications
-
General
Type
Medium Excavators
Operating Weight
22.07 ton
Bucket Capacity
0.92 m³
-
Engine
Emission
TIER 2
Engine model
HYUNDAI HM5.9
Rated Power
150 hp / 1,950 rpm
Max. Torque
62.6 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x247 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
400 ℓ
Hydraulic Tank
160 ℓ
-
Performance
Swing Speed
12.5 rpm
Travel Speed
5.4 km/h
Max. Traction Force
21,100 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
15,500 kgf[16,830]kgf
Arm Digging Force (ISO)
10,900 kgf[11,830]kgf
-
Dimensions
Overall Length
9,530 mm
Overall Width
2,990 mm
Overall Height
3,213 mm
Tail Swing Radius
2,890 mm
Tumbler Distance
3,650 mm
Ground Clearance
480 mm
-
Operating Range
Boom Length
5,680 mm
Arm Length
2,920 mm
Max. Digging Reach
9,980 mm
Max. Digging Depth
6,730 mm
Max. Digging Height
9,600 mm
Max. Dumping Height
6,780 mm
Min. Swing Radius
3,740 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
