Excavators

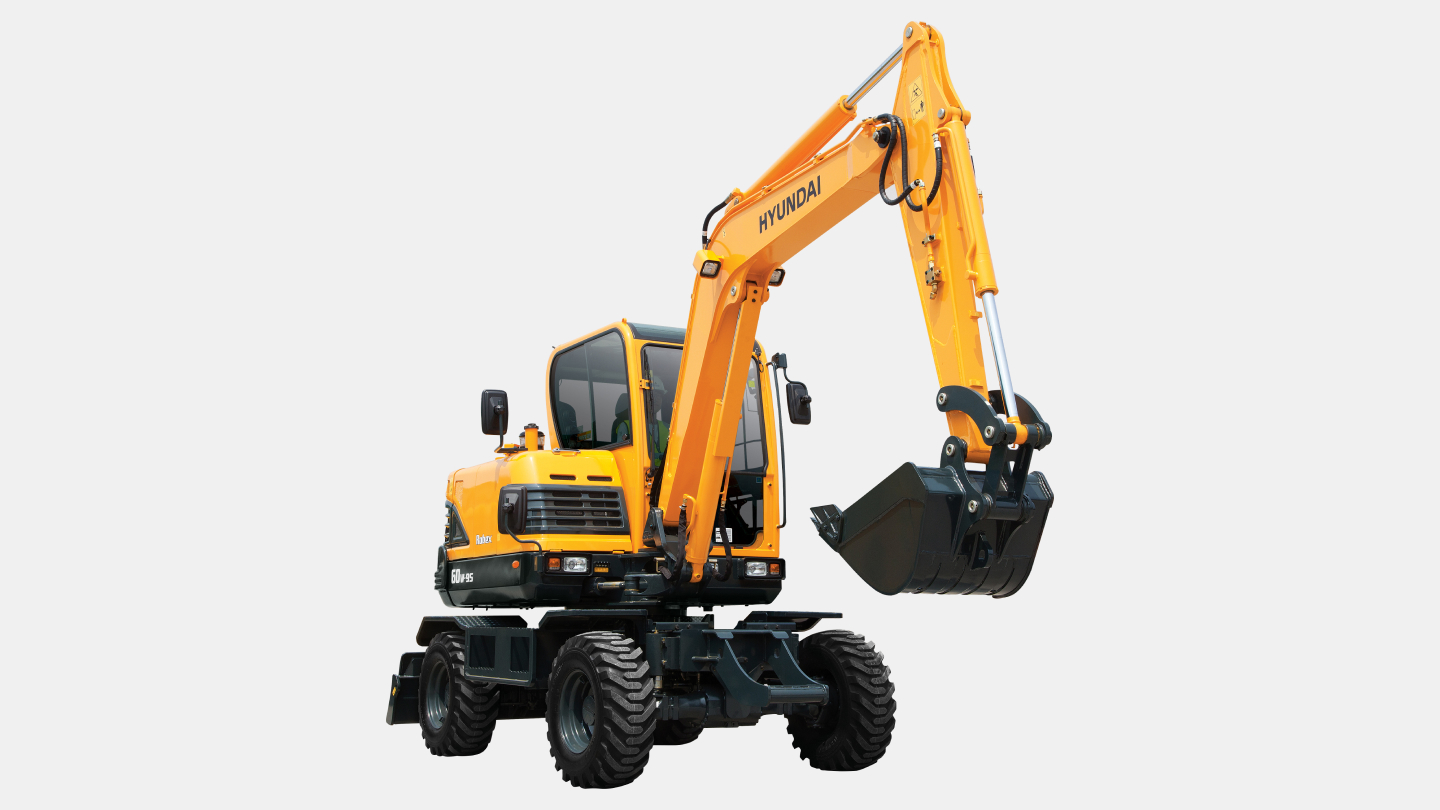

R60W-9S
-
Type
Compact Excavators
-
Operating Weight
5.55 ton
-
Emission
TIER 2
-
Rated Power
57 hp / 2,400 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
5.55 ton
Bucket Capacity
0.18 m³
-
Engine
Emission
TIER 2
Engine model
YANMAR 4TNV94L ? PHYBY
Rated Power
57 hp / 2,400 rpm
Max. Torque
20.6 kgf·m / 1,440 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x60 ℓ/min
Implement Circuit
220 kgf/cm²
-
Tank Capacity
Fuel Tank
125 ℓ
Hydraulic Tank
70 ℓ
-
Performance
Swing Speed
9 rpm
Travel Speed
30 km/h
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
4,330 kgf
Arm Digging Force (ISO)
2,930 kgf
-
Dimensions
Overall Length
6,100 mm
Overall Width
1,925 mm
Overall Height
2,850 mm
Tail Swing Radius
1,650 mm
Tumbler Distance
2,100 mm
Ground Clearance
308 mm
-
Operating Range
Boom Length
3,000 mm
Arm Length
1,600 mm
Max. Digging Reach
6,150 mm
Max. Digging Depth
3,500 mm
Max. Digging Height
6,070 mm
Max. Dumping Height
4,340 mm
Min. Swing Radius
2,350 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
