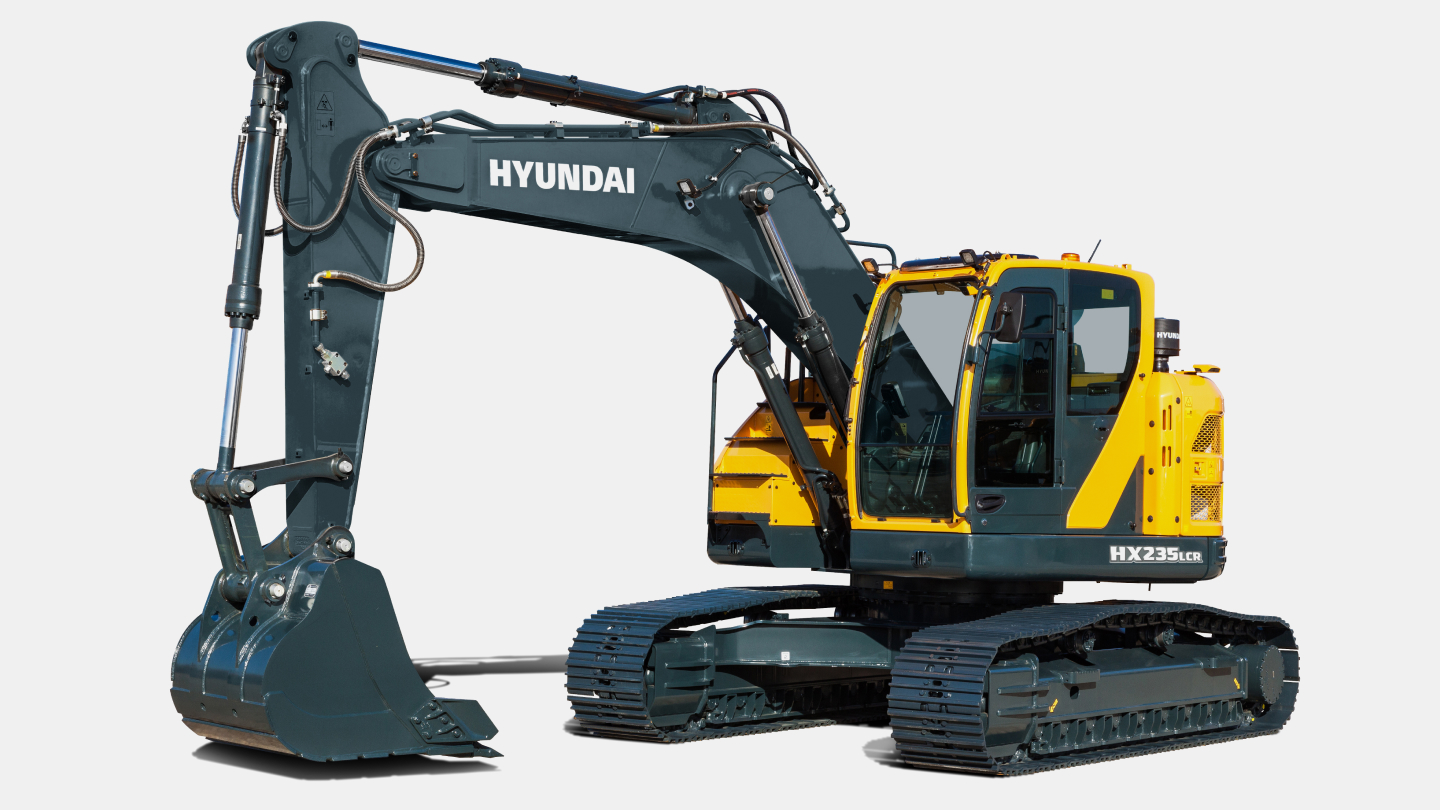

HX235LCR(T3)

  • Type

    Medium Excavators

  • Operating Weight

    24.16  ton

  • Emission

    TIER 3

  • Rated Power

    160  hp / 2,200 rpm

  • English Catalog French Catalog

Specifications

  • General

    Type

    Medium Excavators

    Operating Weight

    24.16  ton

    Bucket Capacity

    0.8  m³

  • Engine

    Emission

    TIER 3

    Engine model

    HYUNDAI HE6.7

    Rated Power

    160  hp / 2,200 rpm

    Max. Torque

    73.2  kgf·m / 1,400 rpm

  • Hydraulic System

    Main Pumps Rated Flow

    2x221  ℓ/min

    Implement Circuit

    350  kgf/cm²

  • Tank Capacity

    Fuel Tank

    320  ℓ

    Hydraulic Tank

    160  ℓ

  • Performance

    Swing Speed

    11.3  rpm

    Travel Speed

    5.6  km/h

    Max. Traction Force

    22,190  kgf

    Max. Gradeability

    35  deg

    Bucket Digging Force (ISO)

    16,830  kgf

    Arm Digging Force (ISO)

    11,830  kgf

  • Dimensions

    Overall Length

    8,910  mm

    Overall Width

    2,990  mm

    Overall Height

    3,290  mm

    Tail Swing Radius

    1,780  mm

    Tumbler Distance

    3,650  mm

    Ground Clearance

    480  mm

  • Operating Range

    Boom Length

    5,680  mm

    Arm Length

    2,920  mm

    Max. Digging Reach

    9,910  mm

    Max. Digging Depth

    6,670  mm

    Max. Digging Height

    10,820  mm

    Max. Dumping Height

    7,900  mm

    Min. Swing Radius

    2,350  mm

- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
