Excavators
HW160A
-
Type
Wheel Excavators
-
Operating Weight
17.58 ton
-
Emission
STAGE V
-
Rated Power
173 hp / 2,200 rpm
- Catalog

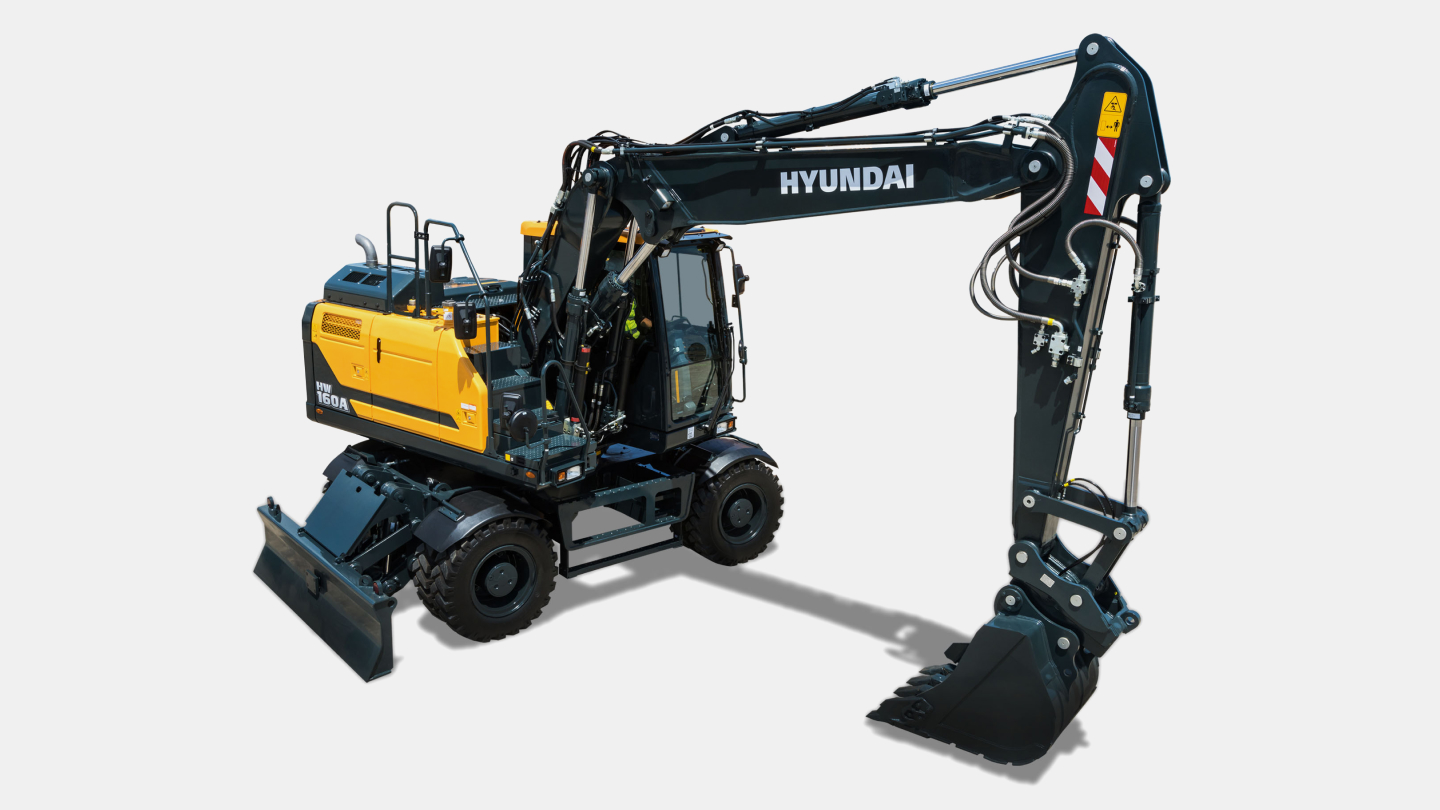

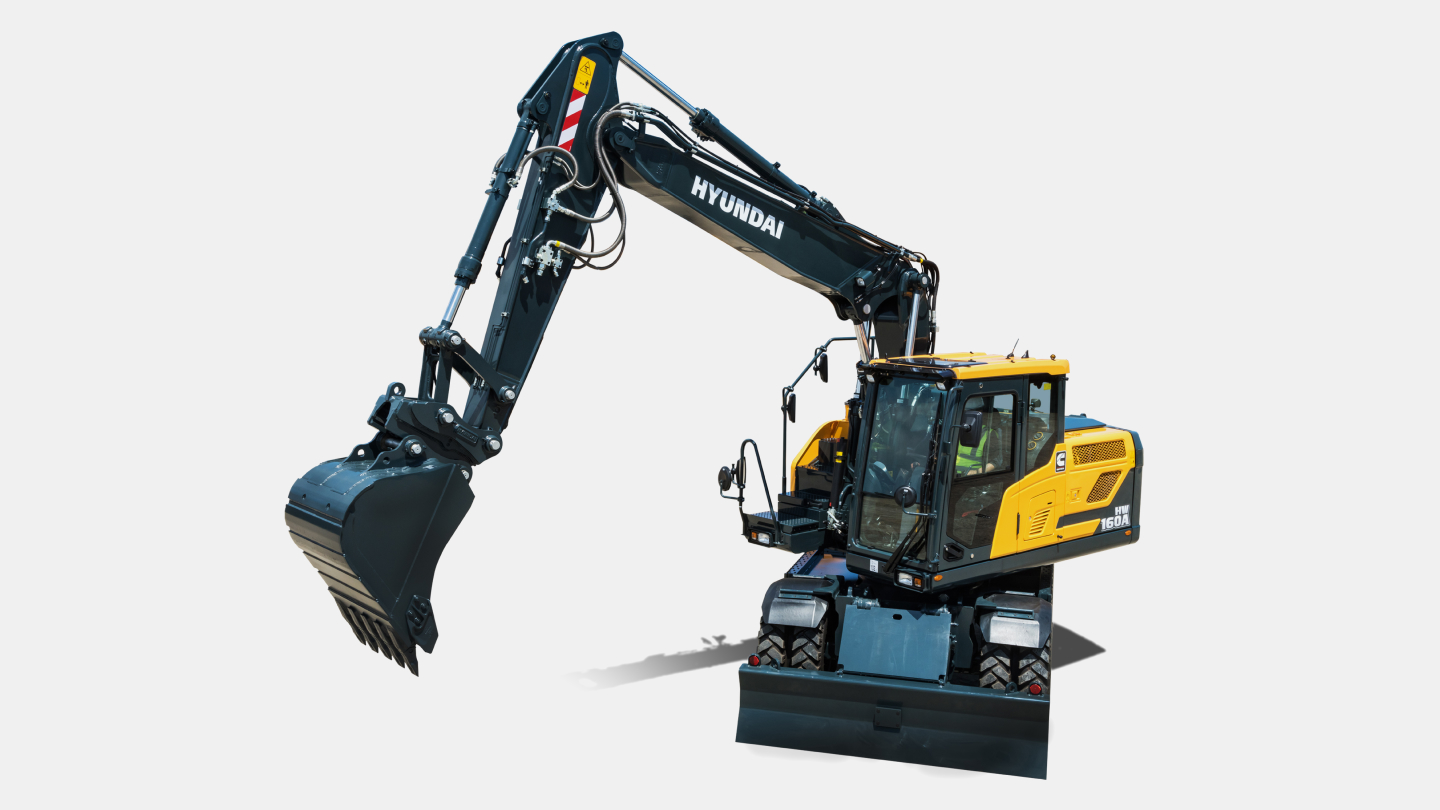

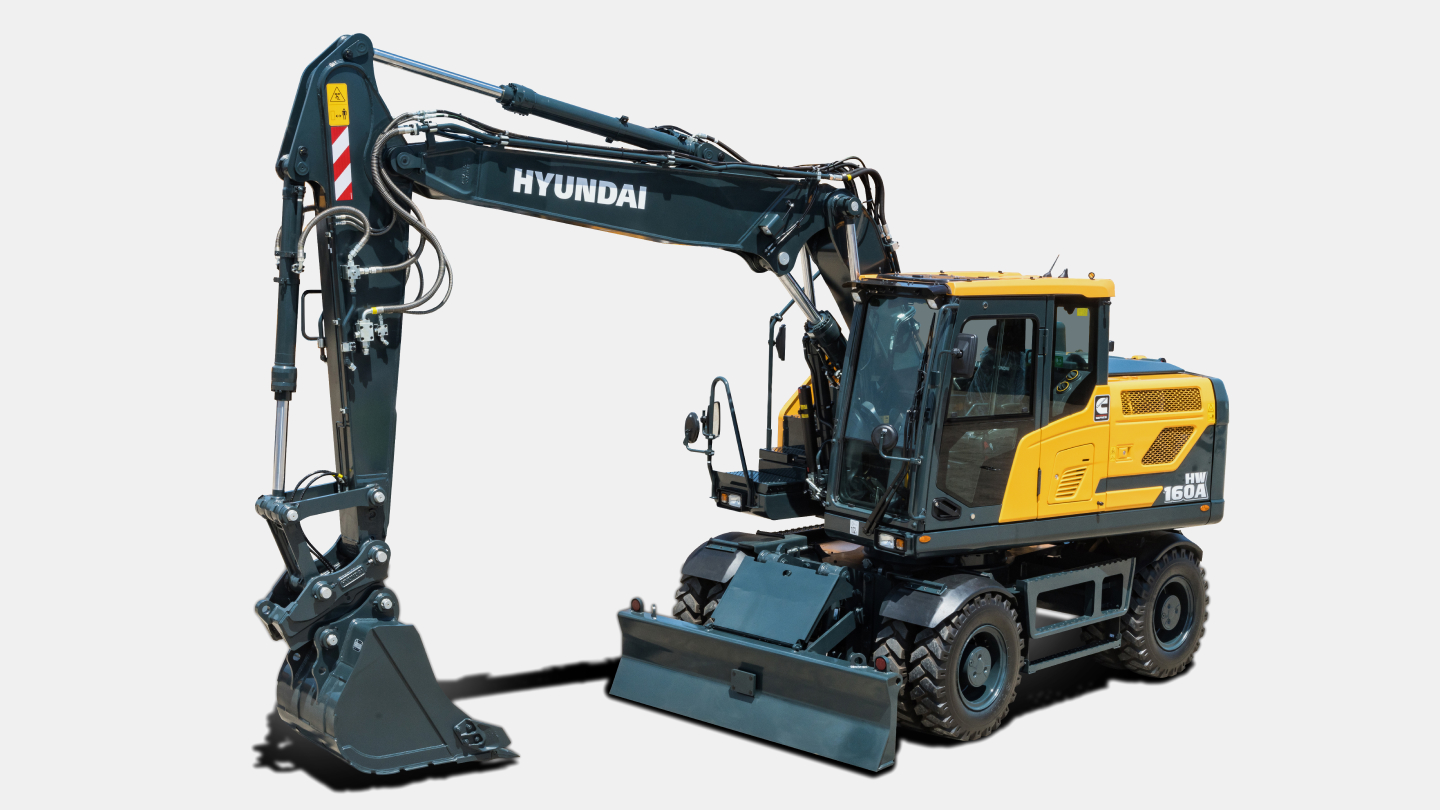

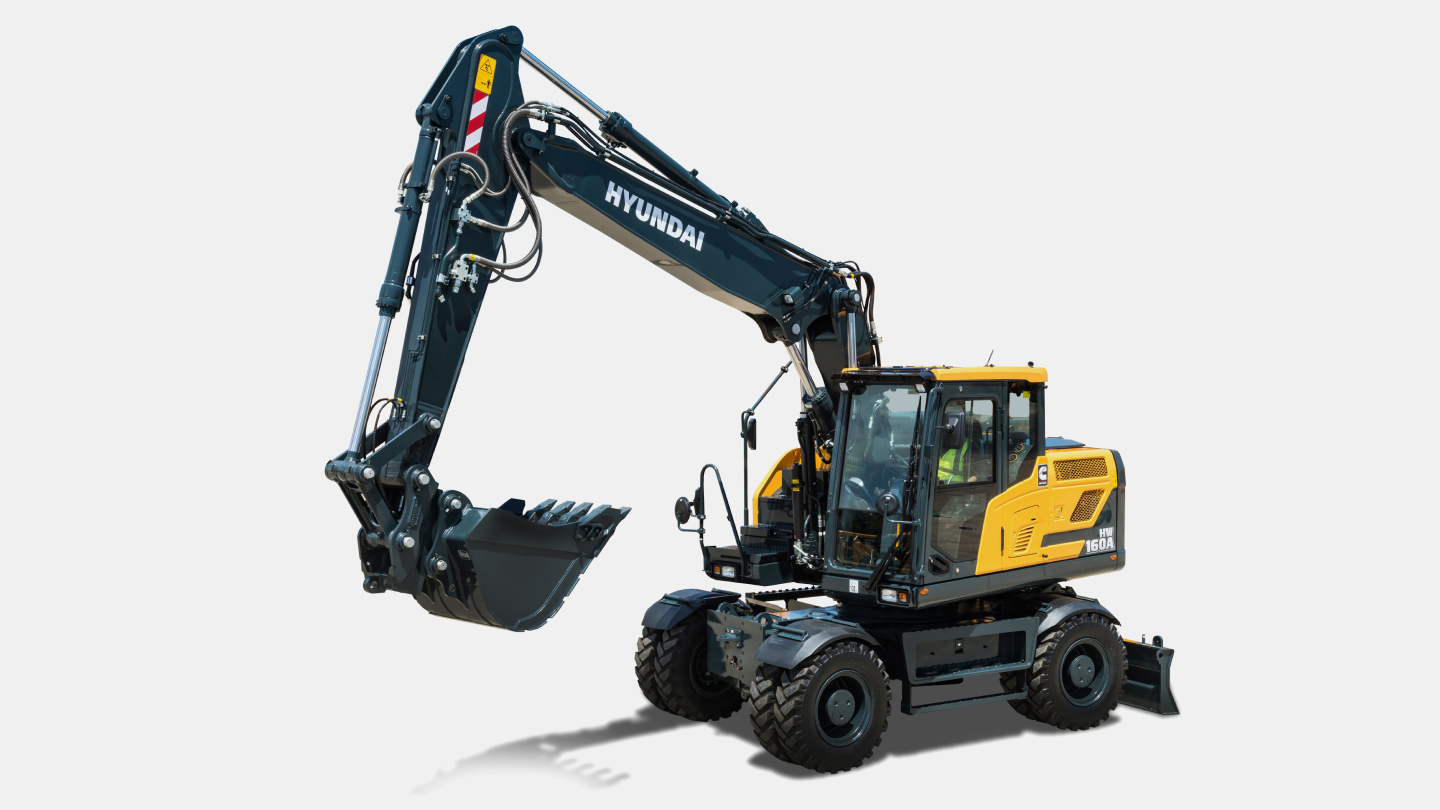

3D View
This 3D image is for illustrative purposes only and may not represent the actual product.
Specifications
-
General
Type
Wheel Excavators
Operating Weight
17.58 ton
Bucket Capacity
0.7 m³
-
Engine
Emission
STAGE V
Engine model
CUMMINS / B4.5
Rated Power
173 hp / 2,200 rpm
-
Hydraulic System
Main Pumps Rated Flow
260 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
250 ℓ
Hydraulic Tank
122 ℓ
DEF/ ADBLUE Tank
27 ℓ
-
Performance
Swing Speed
9.5 rpm
Travel Speed
35 km/h
Max. Traction Force
10,720 kgf
Max. Gradeability
30 deg
Bucket Digging Force (ISO)
12,770 kgf
Arm Digging Force (ISO)
8,530 kgf
-
Dimensions
Overall Length
8,215 mm
Overall Width
2,530 mm
Overall Height
3,450 mm
Tail Swing Radius
2,250 mm
Ground Clearance
370 mm
-
Operating Range
Boom Length
5,000 mm
Arm Length
2,450 mm
Max. Digging Reach
8,820 mm
Max. Digging Depth
5,610 mm
Max. Digging Height
9,010 mm
Max. Dumping Height
6,360 mm
Min. Swing Radius
3,170 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
