Excavators

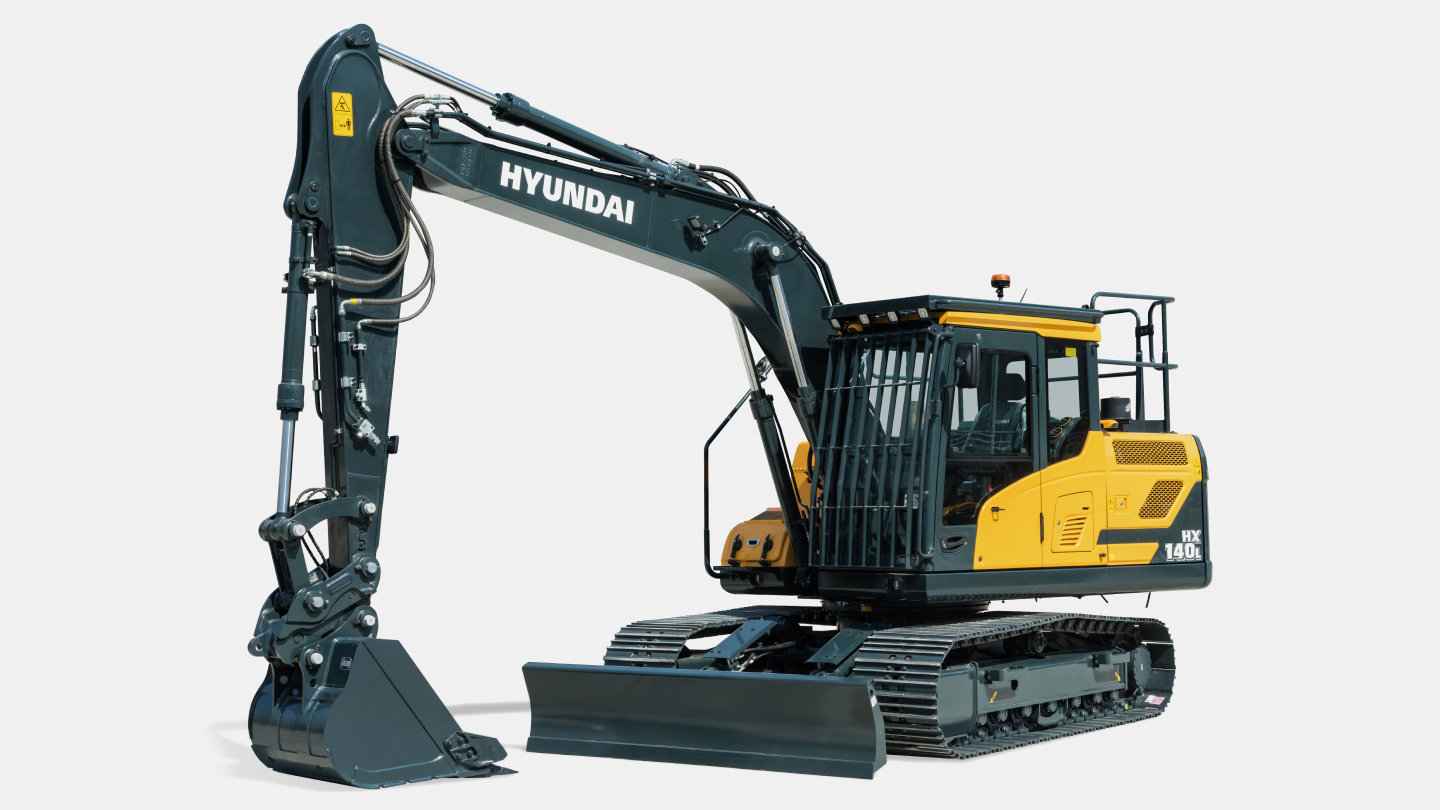

HX140L(T3)
-
Type
Medium Excavators
-
Operating Weight
14.325 ton
-
Emission
TIER 3
-
Rated Power
130 hp / 2,000 rpm
- English Catalog French Catalog
Specifications
-
General
Type
Medium Excavators
Operating Weight
14.325 ton
Bucket Capacity
0.52 m³
-
Engine
Emission
TIER 3
Engine model
CUMMINS B4.5
Rated Power
130 hp / 2,000 rpm
Max. Torque
63.2 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2 x 131 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
270 ℓ
Hydraulic Tank
120 ℓ
-
Performance
Swing Speed
12.4 rpm
Travel Speed
5.8 km/h
Max. Traction Force
12,670 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
10,494 kgf
Arm Digging Force (ISO)
6,666 kgf
-
Dimensions
Overall Length
7,830 mm
Overall Width
2,590 mm
Overall Height
2,730 mm
Tail Swing Radius
2,345 mm
Tumbler Distance
3,000 mm
Ground Clearance
430 mm
-
Operating Range
Boom Length
4,600 mm
Arm Length
2,500 mm
Max. Digging Reach
8,330 mm
Max. Digging Depth
5,530 mm
Max. Digging Height
8,550 mm
Max. Dumping Height
6,105 mm
Min. Swing Radius
2,655 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
