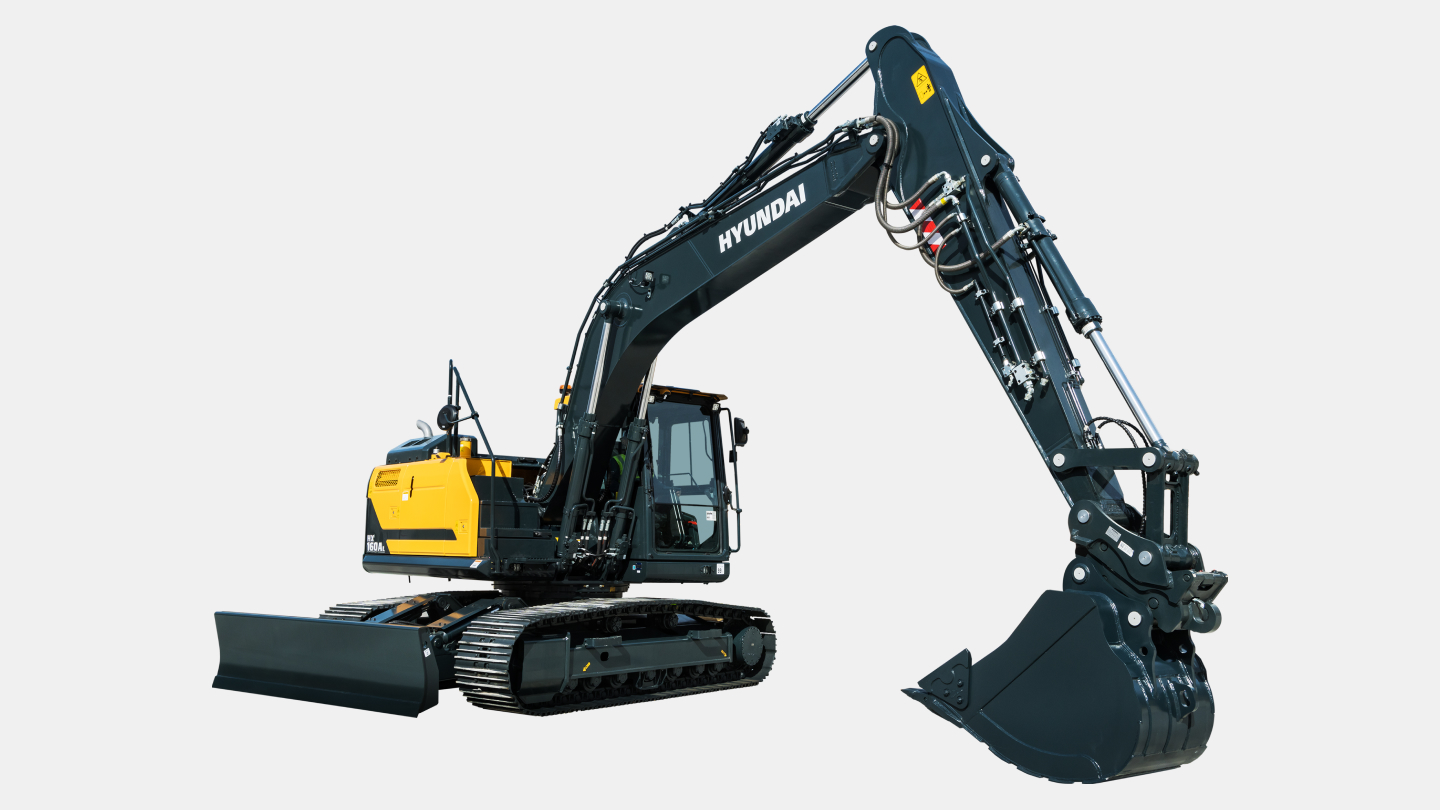

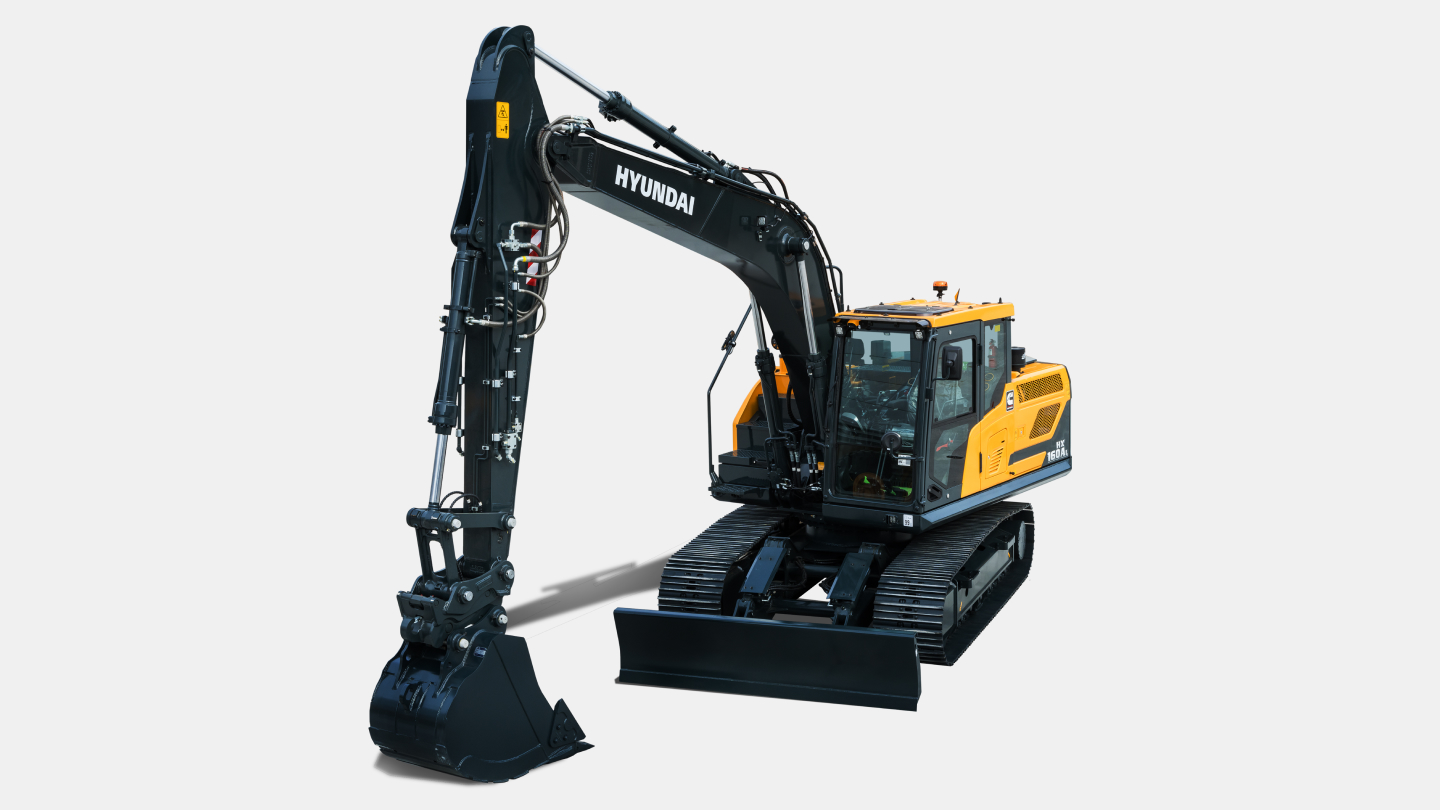

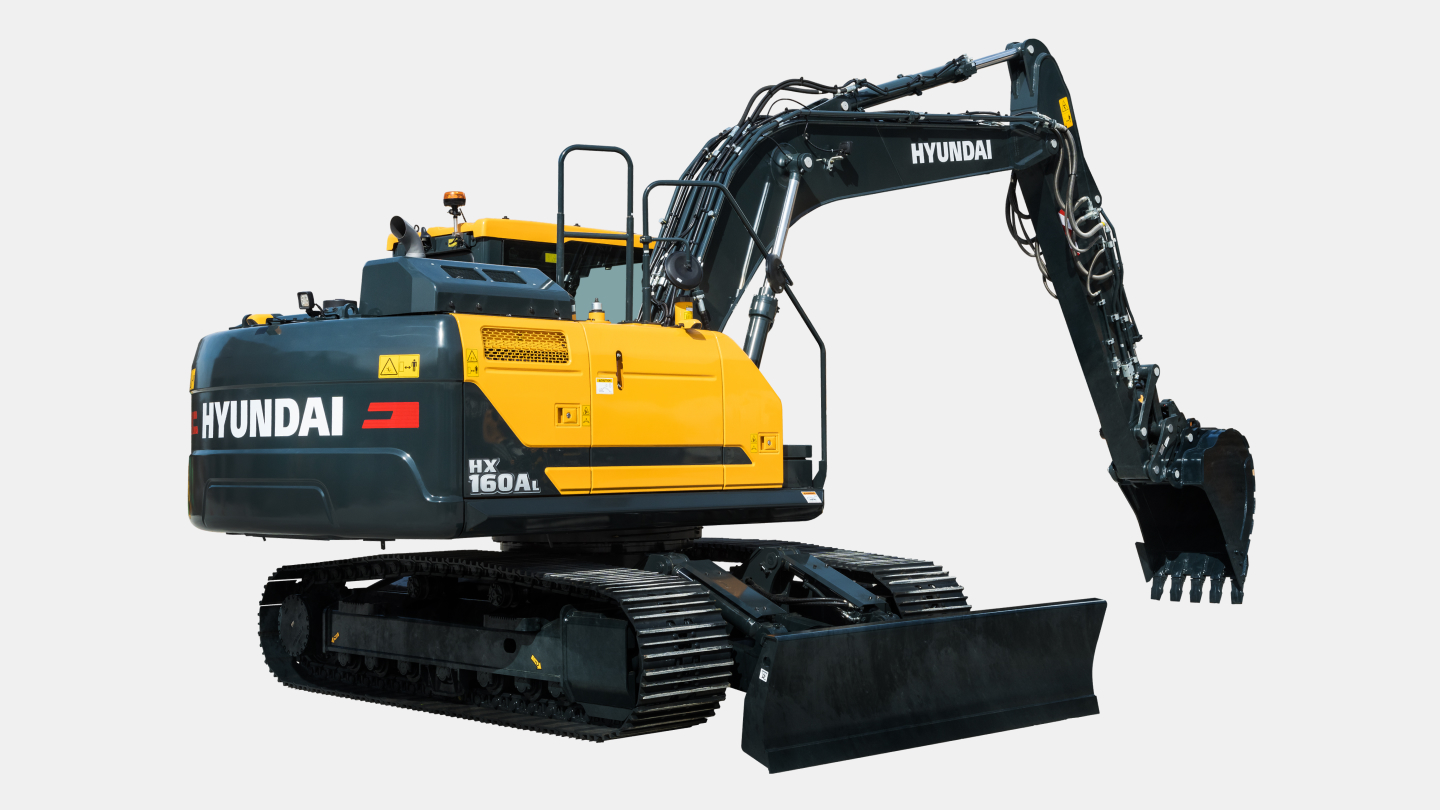

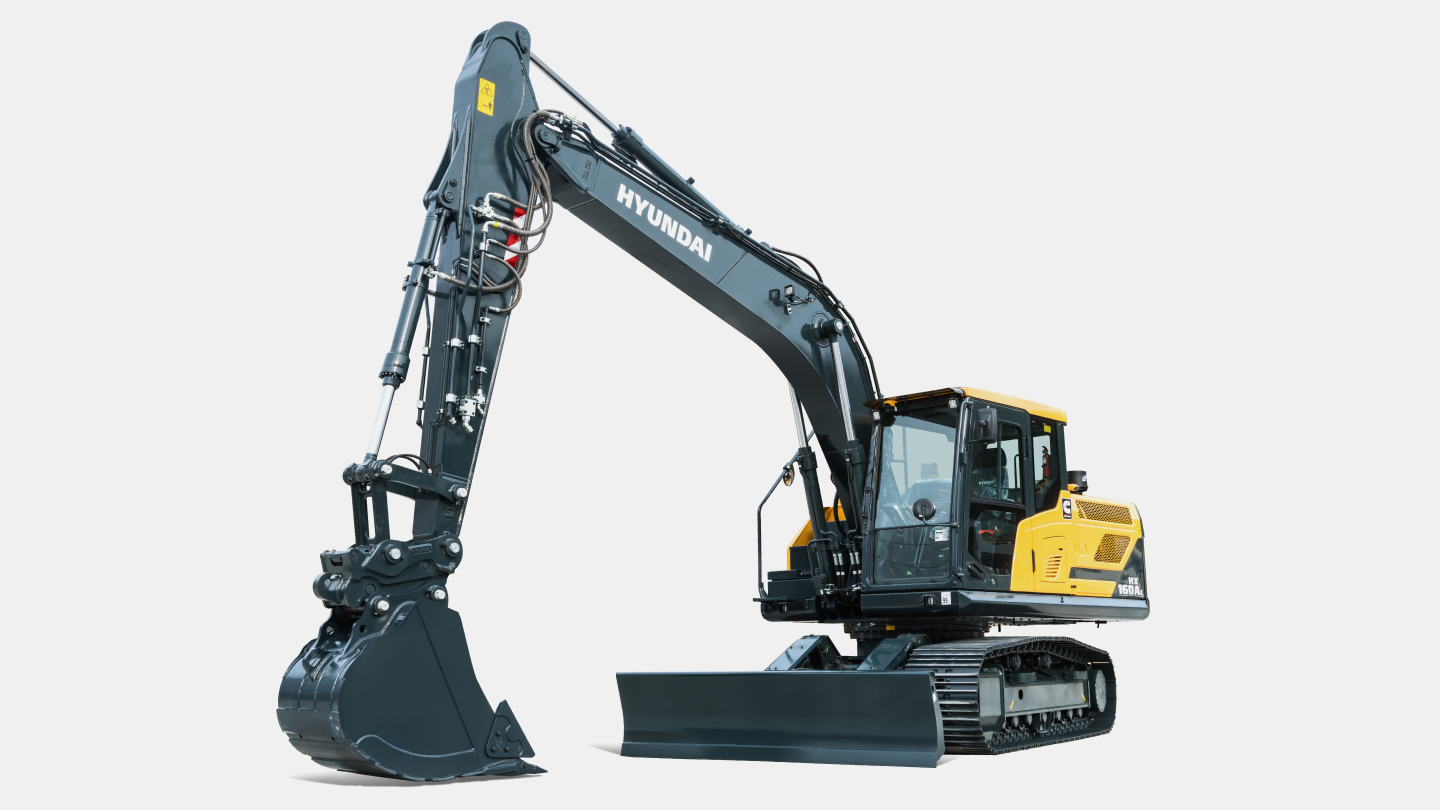

HX160AL

  • Type

    Medium Excavators

  • Operating Weight

    17.695  ton

  • Emission

    STAGE V

  • Rated Power

    155  hp / 2,200 rpm

  • Catalog

Specifications

  • General

    Type

    Medium Excavators

    Operating Weight

    17.695  ton

    Bucket Capacity

    0.96  m³0.73 ~ 0.96 m³

  • Engine

    Emission

    STAGE V

    Engine model

    CUMMINS B4.5

    Rated Power

    155  hp / 2,200 rpm

    Max. Torque

    72.6  kgf·m / 1,200 rpm

  • Hydraulic System

    Main Pumps Rated Flow

    2x160  ℓ/min

    Implement Circuit

    350  kgf/cm²

  • Tank Capacity

    Fuel Tank

    290  ℓ

    Hydraulic Tank

    125  ℓ

    DEF/ ADBLUE Tank

    35  ℓ

  • Performance

    Swing Speed

    10.3  rpm

    Travel Speed

    5.4  km/h

    Max. Traction Force

    16,700  kgf

    Max. Gradeability

    35  deg

    Bucket Digging Force (ISO)

    12,892  kgf[14000]kgf

    Arm Digging Force (ISO)

    8,237  kgf[8940]kgf

  • Dimensions

    Overall Length

    8,650  mm

    Overall Width

    2,590  mm

    Overall Height

    3,030  mm

    Tail Swing Radius

    2,490  mm

    Tumbler Distance

    3,170  mm

    Ground Clearance

    460  mm

  • Operating Range

    Boom Length

    5,100  mm

    Arm Length

    2,600  mm

    Max. Digging Reach

    9,020  mm

    Max. Digging Depth

    6,030  mm

    Max. Digging Height

    8,750  mm

    Max. Dumping Height

    6,250  mm

    Min. Swing Radius

    3,170  mm

- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
