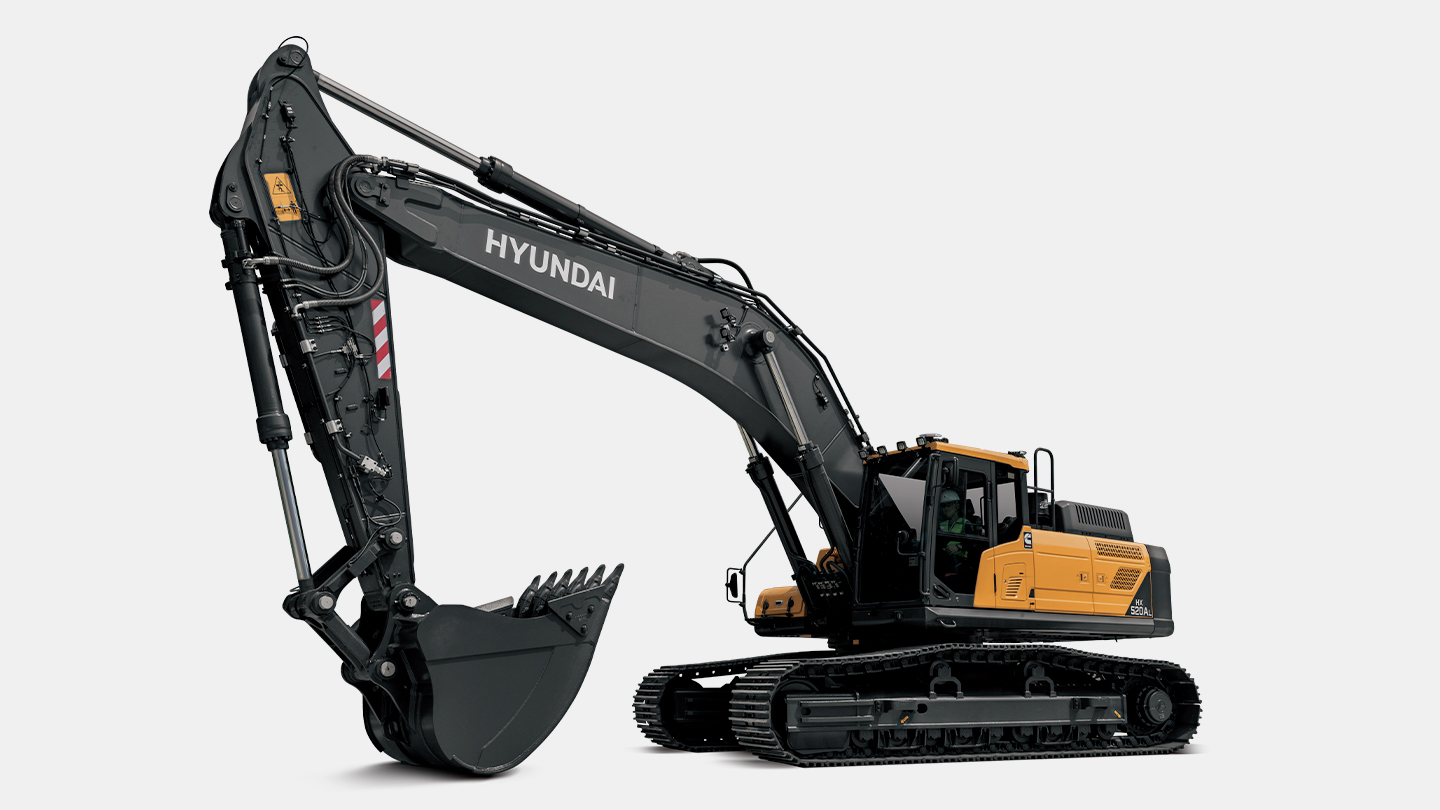

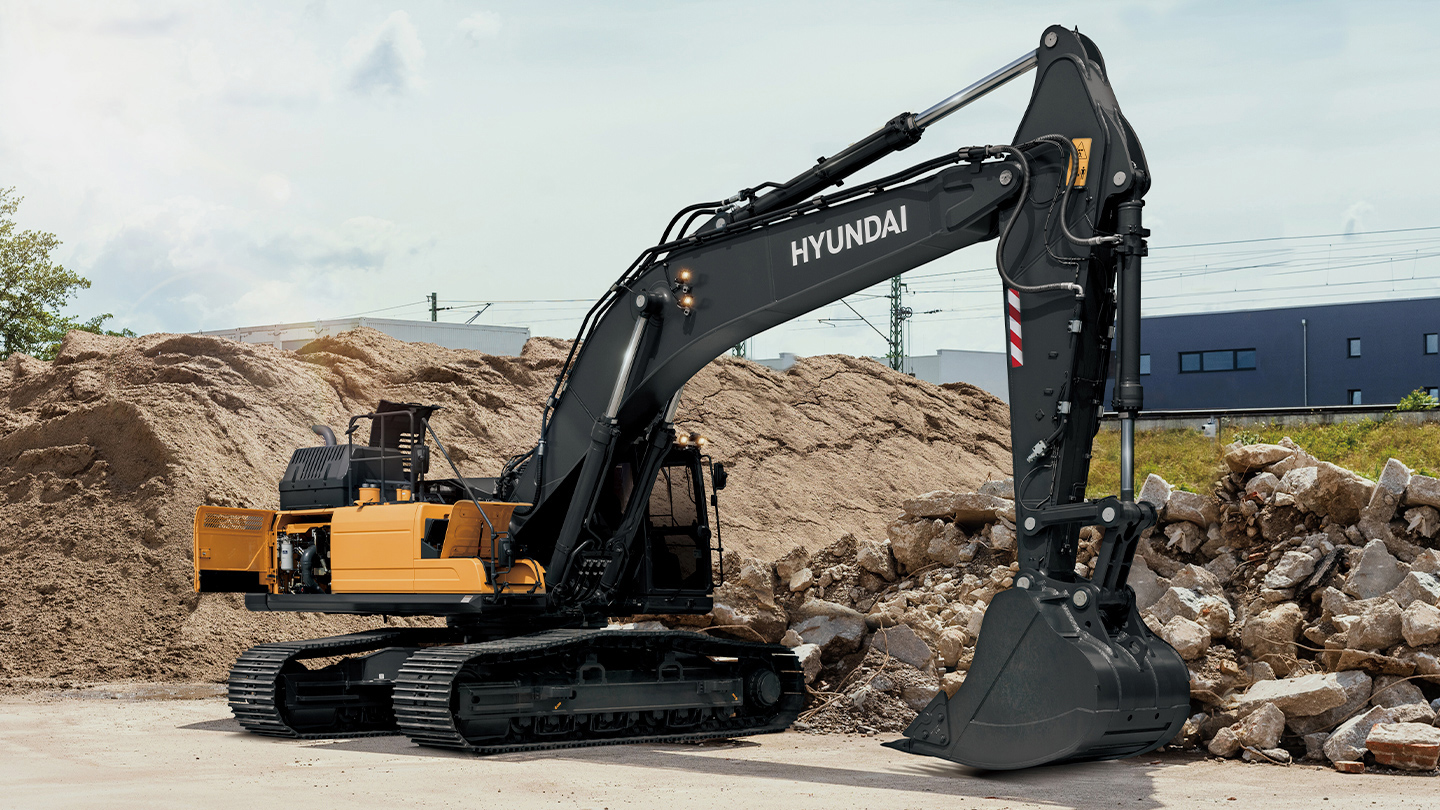

HX520AL

  • Type

    Large Excavators

  • Operating Weight

    53.56  ton

  • Emission

    STAGE V

  • Rated Power

    298  hp / 2,100 rpm

  • Catalog

Specifications

  • General

    Type

    Large Excavators

    Operating Weight

    53.56  ton

    Bucket Capacity

    3.2  m³

  • Engine

    Emission

    STAGE V

    Engine model

    CUMMINS X12

    Rated Power

    298  hp / 2,100 rpm

    Max. Torque

    193.54  kgf·m / 1,400 rpm

  • Hydraulic System

    Main Pumps Rated Flow

    2x390  ℓ/min

    Implement Circuit

    330  kgf/cm²

  • Tank Capacity

    Fuel Tank

    600  ℓ

    Hydraulic Tank

    275  ℓ

    DEF/ ADBLUE Tank

    70  ℓ

  • Performance

    Swing Speed

    9  rpm

    Travel Speed

    5.3  km/h

    Max. Traction Force

    39,674  kgf

    Max. Gradeability

    35  deg

    Bucket Digging Force (ISO)

    26,210  kgf

    Arm Digging Force (ISO)

    29,580  kgf

  • Dimensions

    Overall Length

    5,482  mm

    Overall Width

    2,890  mm

    Overall Height

    3,980  mm

    Tail Swing Radius

    3,800  mm

    Tumbler Distance

    4,475  mm

    Ground Clearance

    1,422  mm

  • Operating Range

    Boom Length

    7,060  mm

    Arm Length

    3,380  mm

    Max. Digging Reach

    11,990  mm

    Max. Digging Depth

    7,545  mm

    Max. Digging Height

    11,015  mm

    Max. Dumping Height

    7,895  mm

    Min. Swing Radius

    4,875  mm
