Excavators

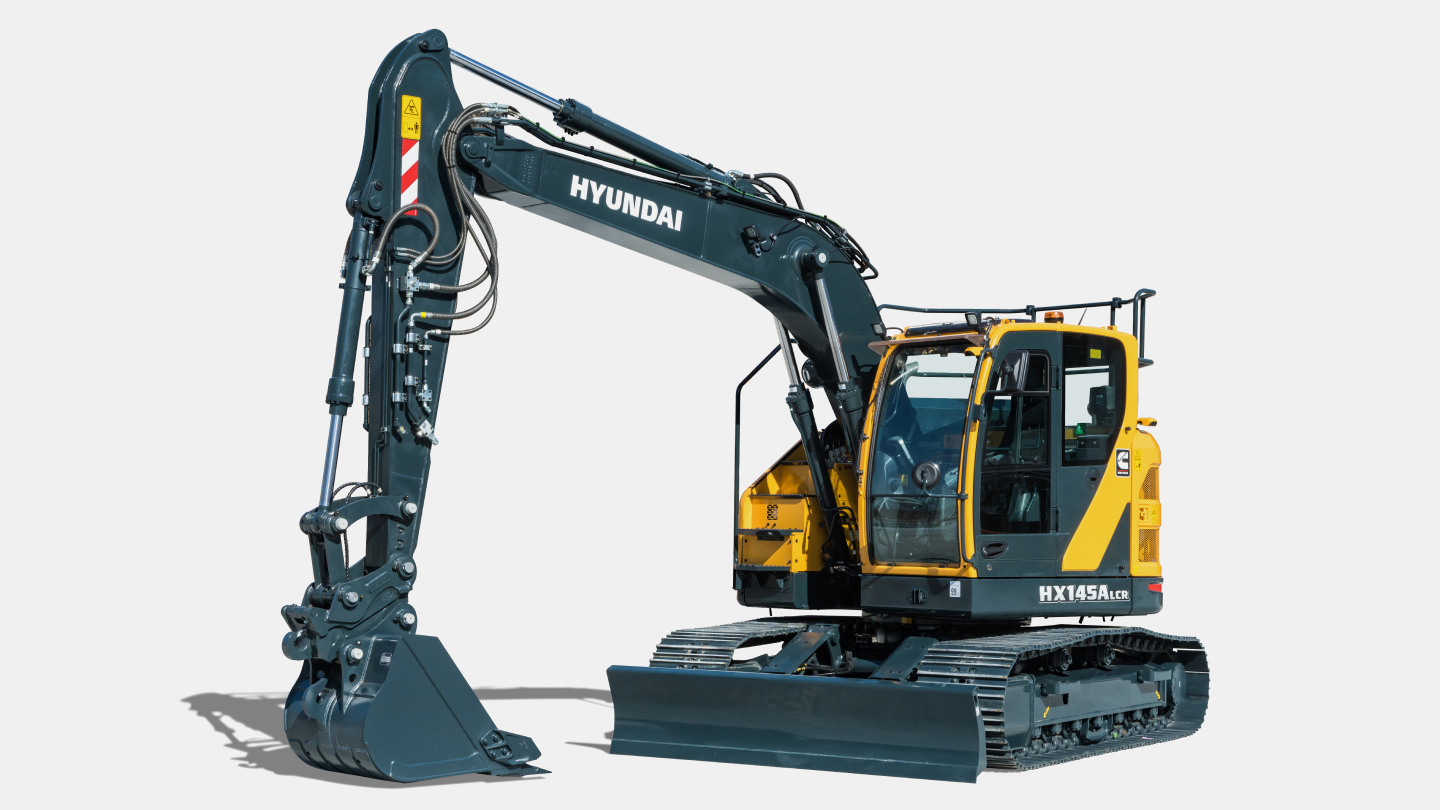

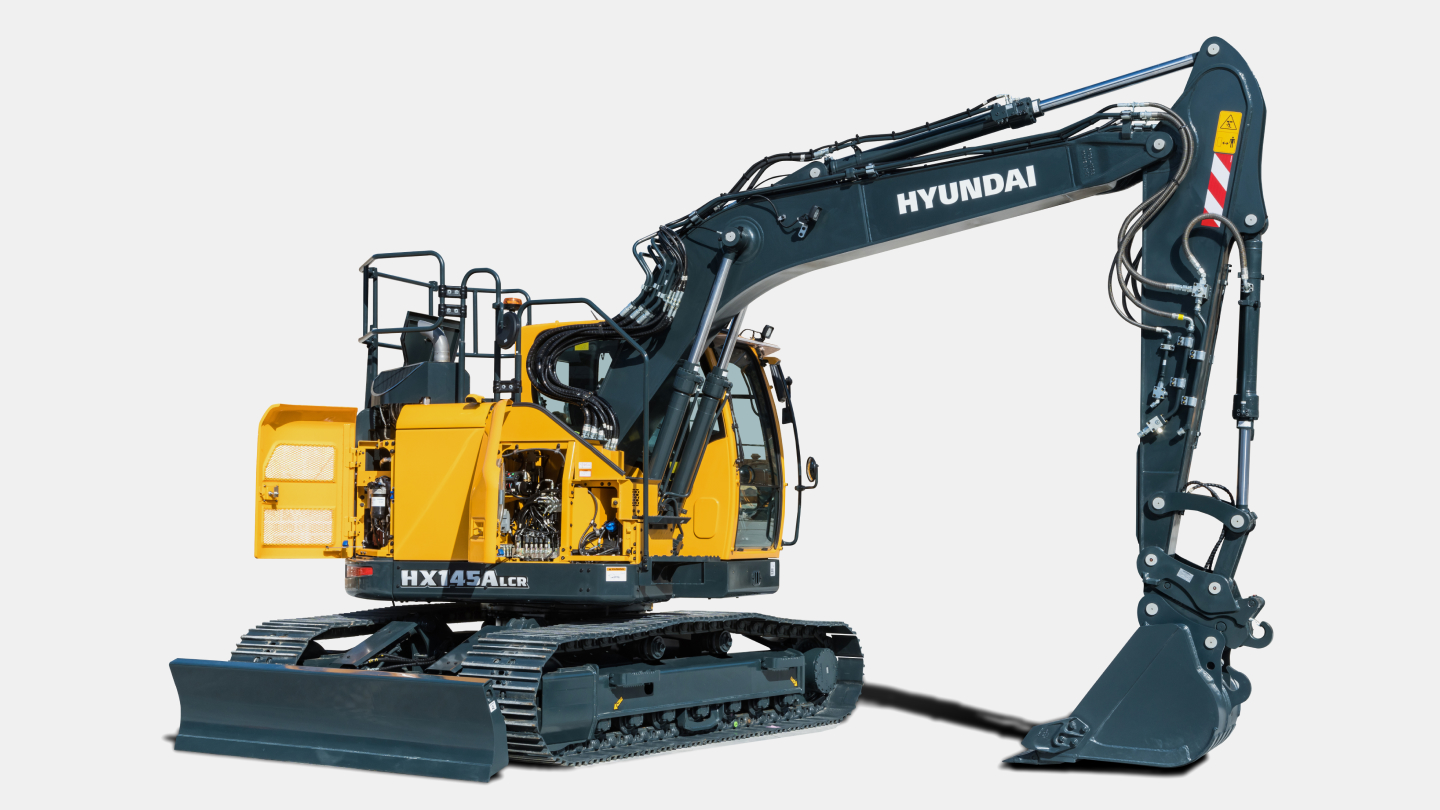

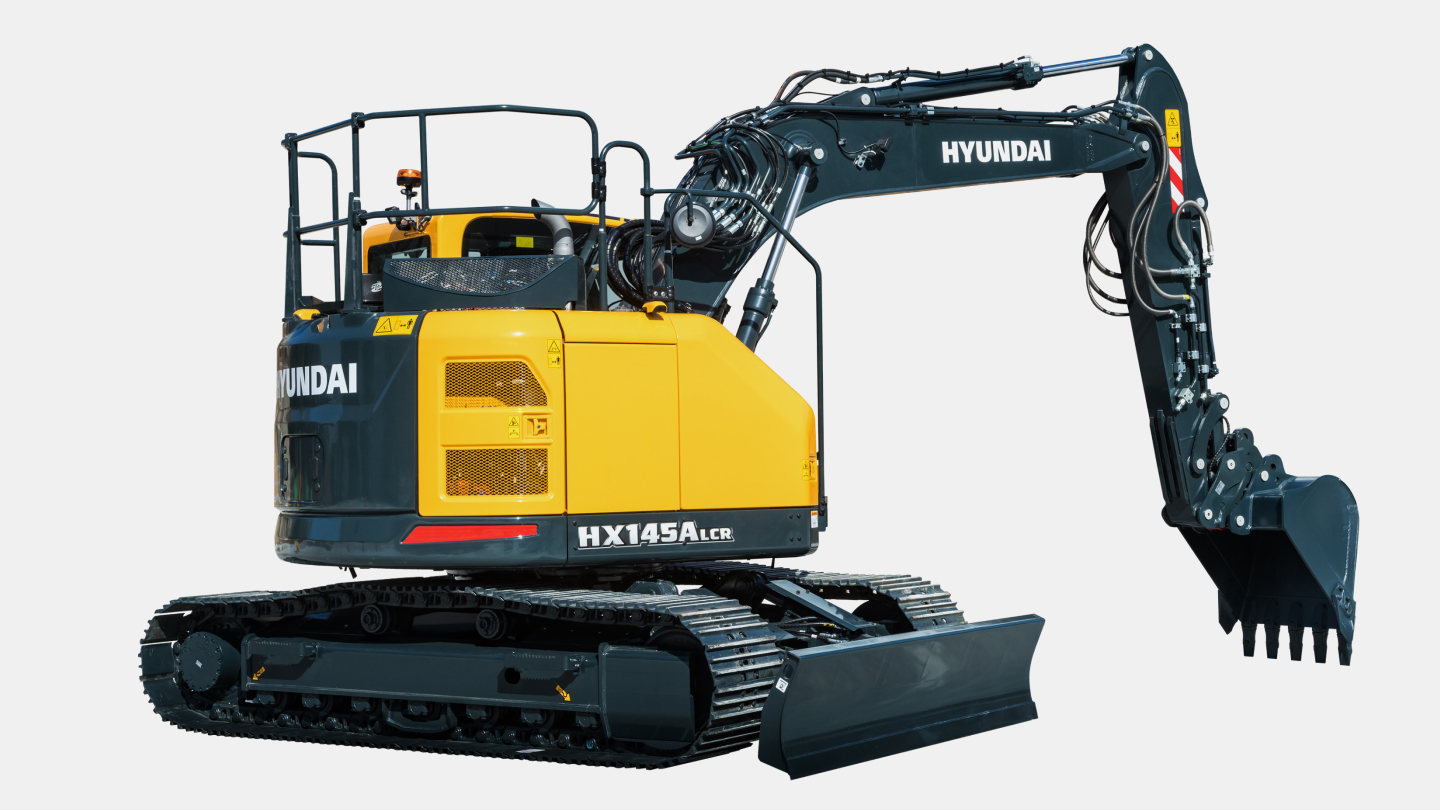

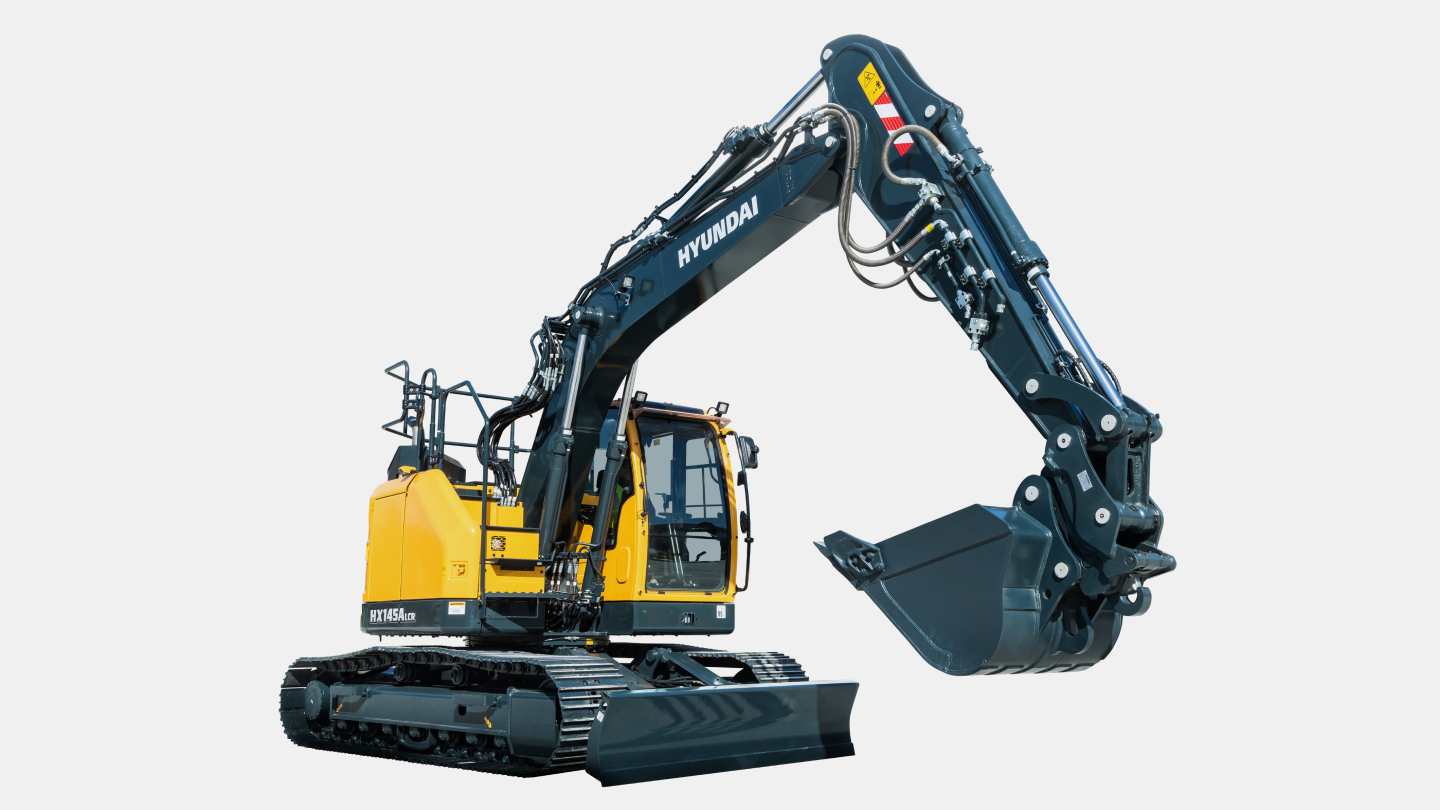

HX145A LCR
-
Type
Medium Excavators
-
Operating Weight
15.43 ton
-
Emission
STAGE V
-
Rated Power
134 hp / 2,200 rpm
- Catalog
Specifications
-
General
Type
Medium Excavators
Operating Weight
15.43 ton
Bucket Capacity
0.77 m³0.50 ~ 0.77m³
-
Engine
Emission
STAGE V
Engine model
CUMMINS / F3.8
Rated Power
134 hp / 2,200 rpm
Max. Torque
56.1 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2 × 127 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
210 ℓ
Hydraulic Tank
96 ℓ
DEF/ ADBLUE Tank
27 ℓ
-
Performance
Swing Speed
11.4 rpm
Travel Speed
5.6 km/h
Max. Traction Force
12,672 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
10,497 kgf[11,400]kgf
Arm Digging Force (ISO)
6,665 kgf[7,240]kgf
-
Dimensions
Overall Length
7,400 mm
Overall Width
2,590 mm
Overall Height
2,925 mm
Tail Swing Radius
1,530 mm
Tumbler Distance
3,090 mm
Ground Clearance
423 mm
-
Operating Range
Boom Length
4,600 mm
Arm Length
2,500 mm
Max. Digging Reach
8,300 mm
Max. Digging Depth
5,440 mm
Max. Digging Height
9,370 mm
Max. Dumping Height
6,880 mm
Min. Swing Radius
2,050 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
