Excavators

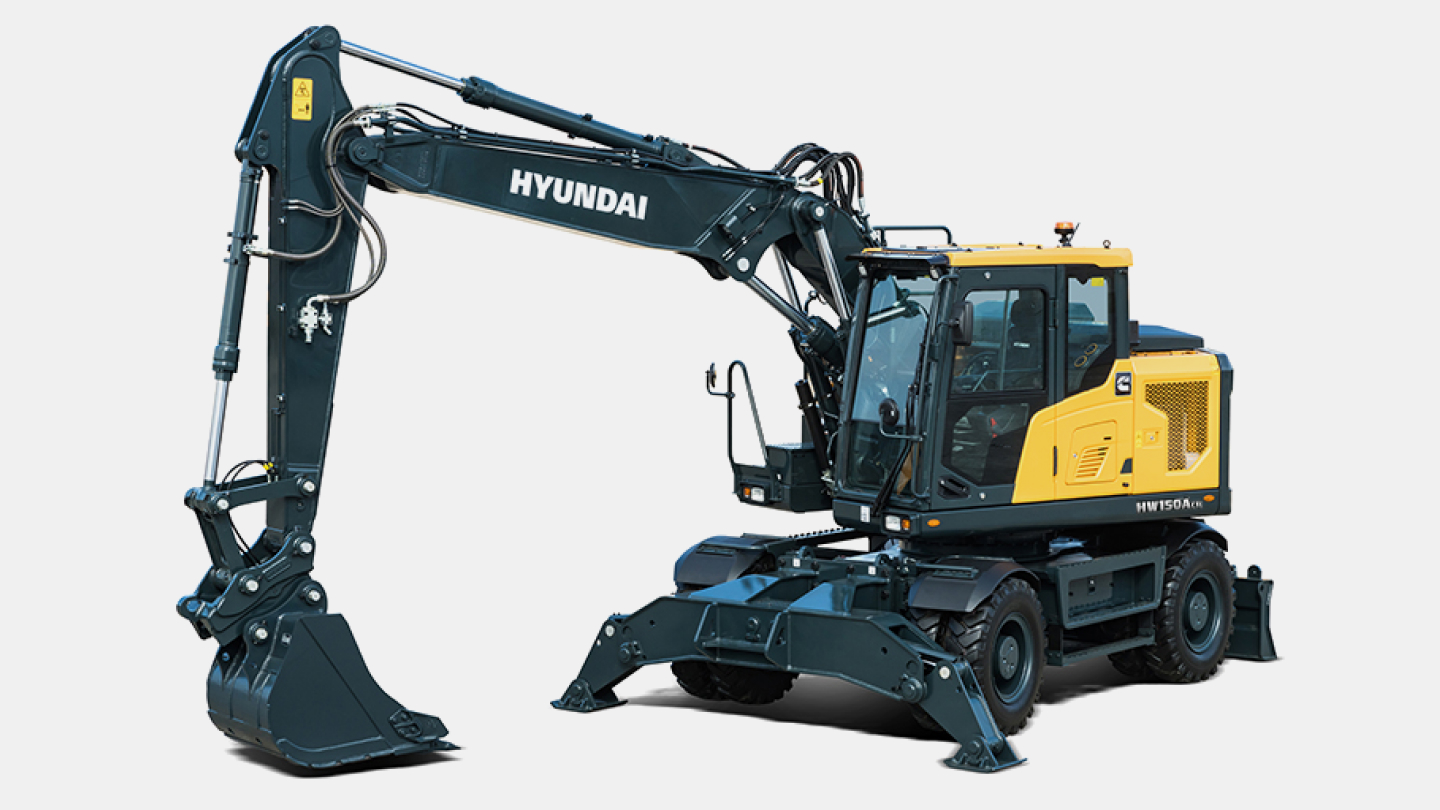

HW150A CR
-
Type
Wheel Excavators
-
Operating Weight
17.17 ton
-
Emission
STAGE V
-
Rated Power
173 hp / 2,200 rpm
- Catalog
Specifications
-
General
Type
Wheel Excavators
Operating Weight
17.17 ton
Bucket Capacity
0.71 m³
-
Engine
Emission
STAGE V
Engine model
CUMMINS / B4.5
Rated Power
173 hp / 2,200 rpm
Max. Torque
79.54 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
260 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
200 ℓ
Hydraulic Tank
103 ℓ
DEF/ ADBLUE Tank
48 ℓ
-
Performance
Swing Speed
9.3 rpm
Travel Speed
35 km/h
Max. Traction Force
9,234 kgf
Max. Gradeability
30 deg
Bucket Digging Force (ISO)
10,494 kgf
Arm Digging Force (ISO)
6763.7 kgf
-
Dimensions
Overall Length
7,830 mm
Overall Width
2,530 mm
Overall Height
2,990 mm
Tail Swing Radius
1,800 mm
Ground Clearance
370 mm
-
Operating Range
Boom Length
4,600 mm
Arm Length
2,450 mm
Max. Digging Reach
8,370 mm
Max. Digging Depth
5,130 mm
Max. Digging Height
8,830 mm
Max. Dumping Height
6,380 mm
Min. Swing Radius
2,740 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
