Excavators

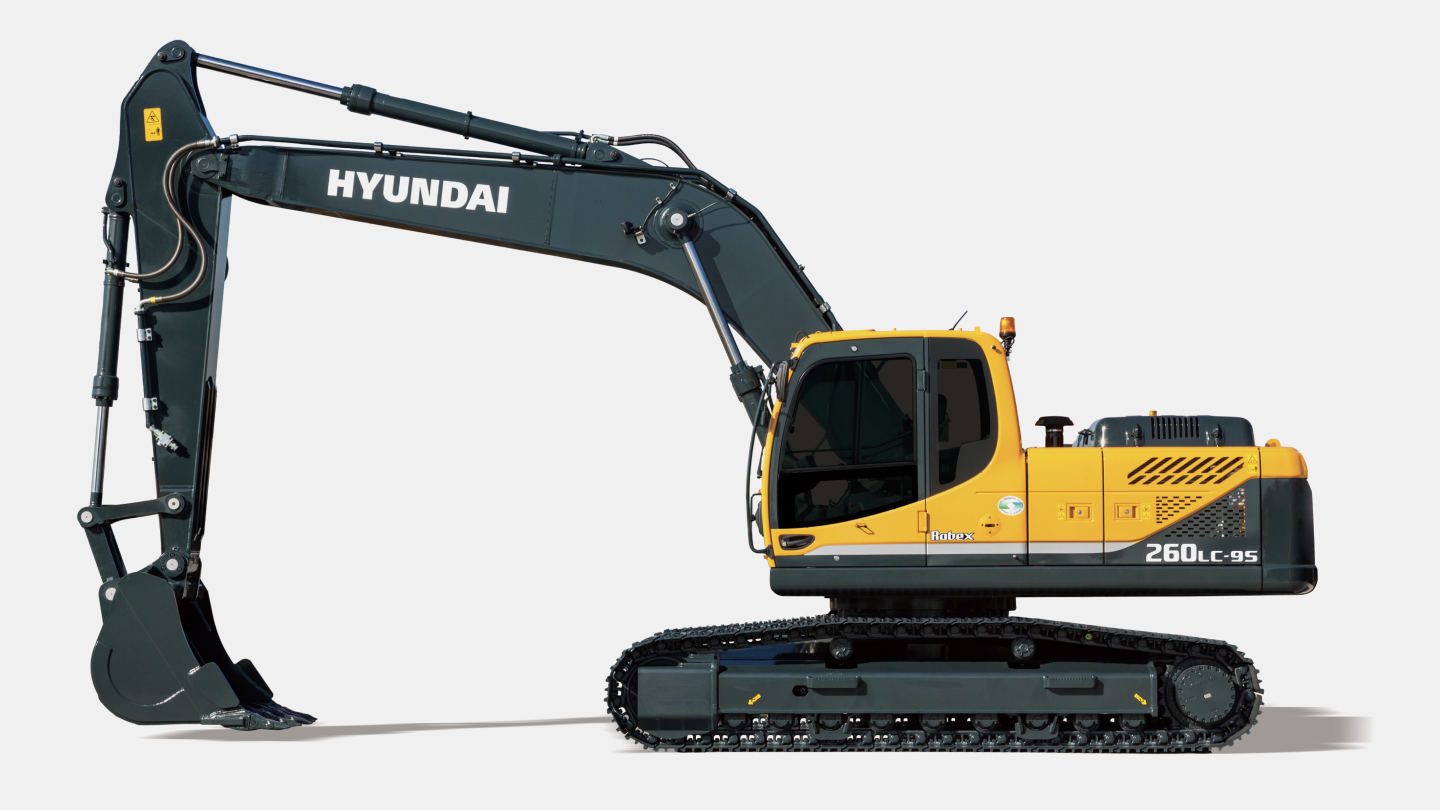

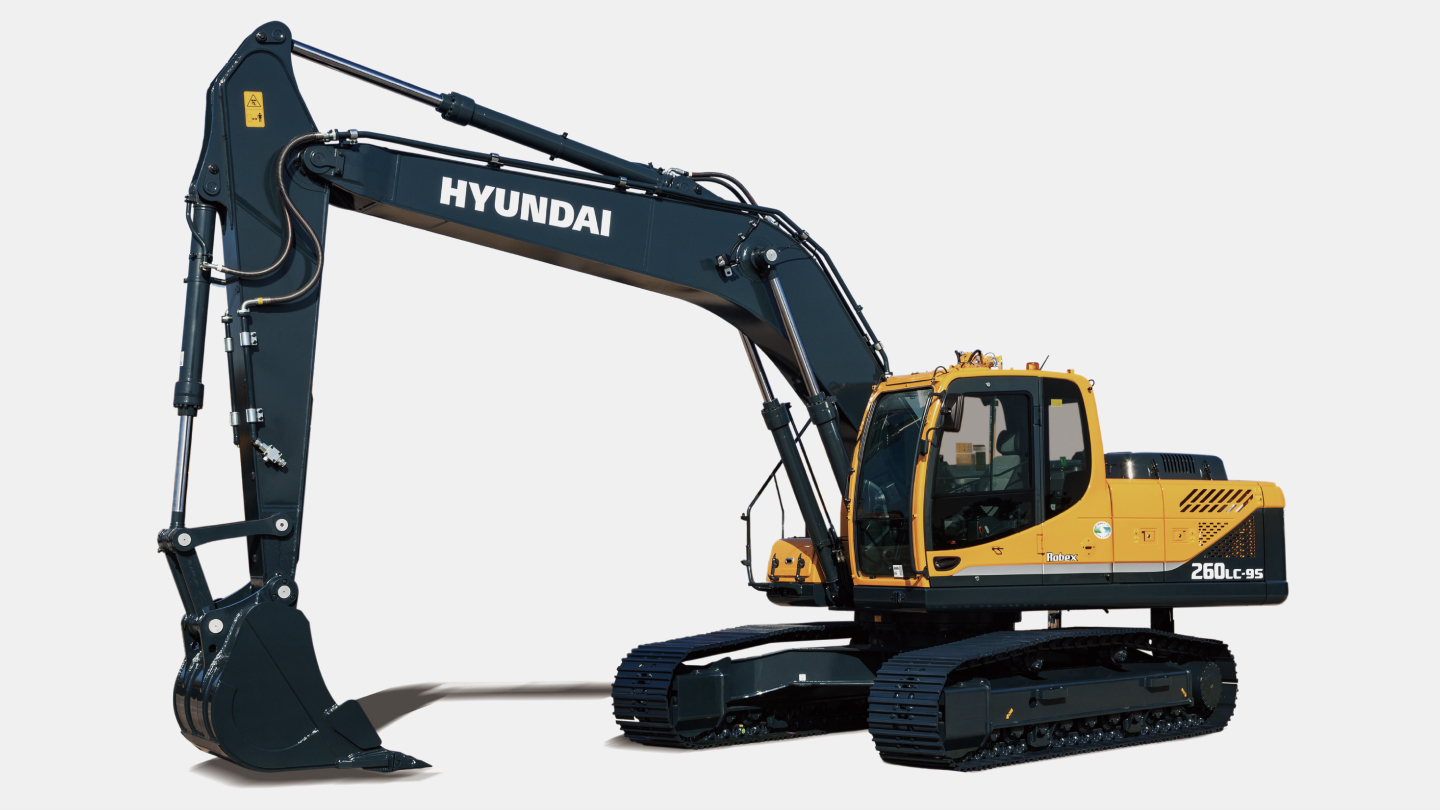

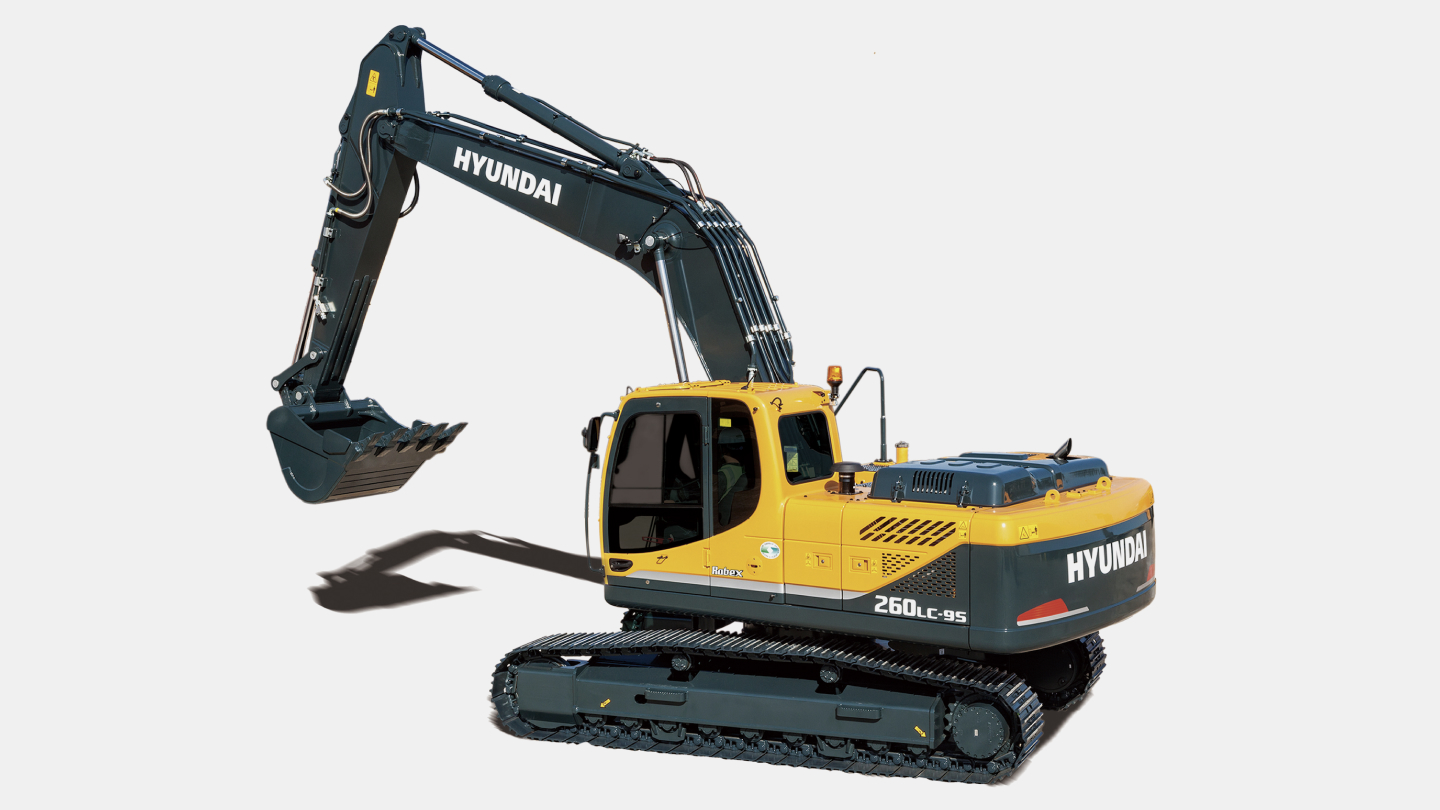

R260LC-9S
-
Type
Medium Excavators
-
Operating Weight
25.2 ton
-
Emission
TIER 2
-
Rated Power
178 hp / 2,000 rpm
- Catalog
Specifications
-
General
Type
Medium Excavators
Operating Weight
25.2 ton
Bucket Capacity
1.08 m³
-
Engine
Emission
TIER 2
Engine model
HYUNDAI HM5.9
Rated Power
178 hp / 2,000 rpm
Max. Torque
72.2 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x228 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
400 ℓ
Hydraulic Tank
165 ℓ
-
Performance
Swing Speed
12.5 rpm
Travel Speed
5.8 km/h
Max. Traction Force
21,600 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
19,762 kgf
Arm Digging Force (ISO)
13,134 kgf
-
Dimensions
Overall Length
9,920 mm
Overall Width
3,180 mm
Overall Height
3,220 mm
Tail Swing Radius
2,975 mm
Tumbler Distance
3,830 mm
Ground Clearance
765 mm
-
Operating Range
Boom Length
5,850 mm
Arm Length
3,050 mm
Max. Digging Reach
10,360 mm
Max. Digging Depth
7,000 mm
Max. Digging Height
9,670 mm
Max. Dumping Height
6,630 mm
Min. Swing Radius
3,980 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
