Excavators

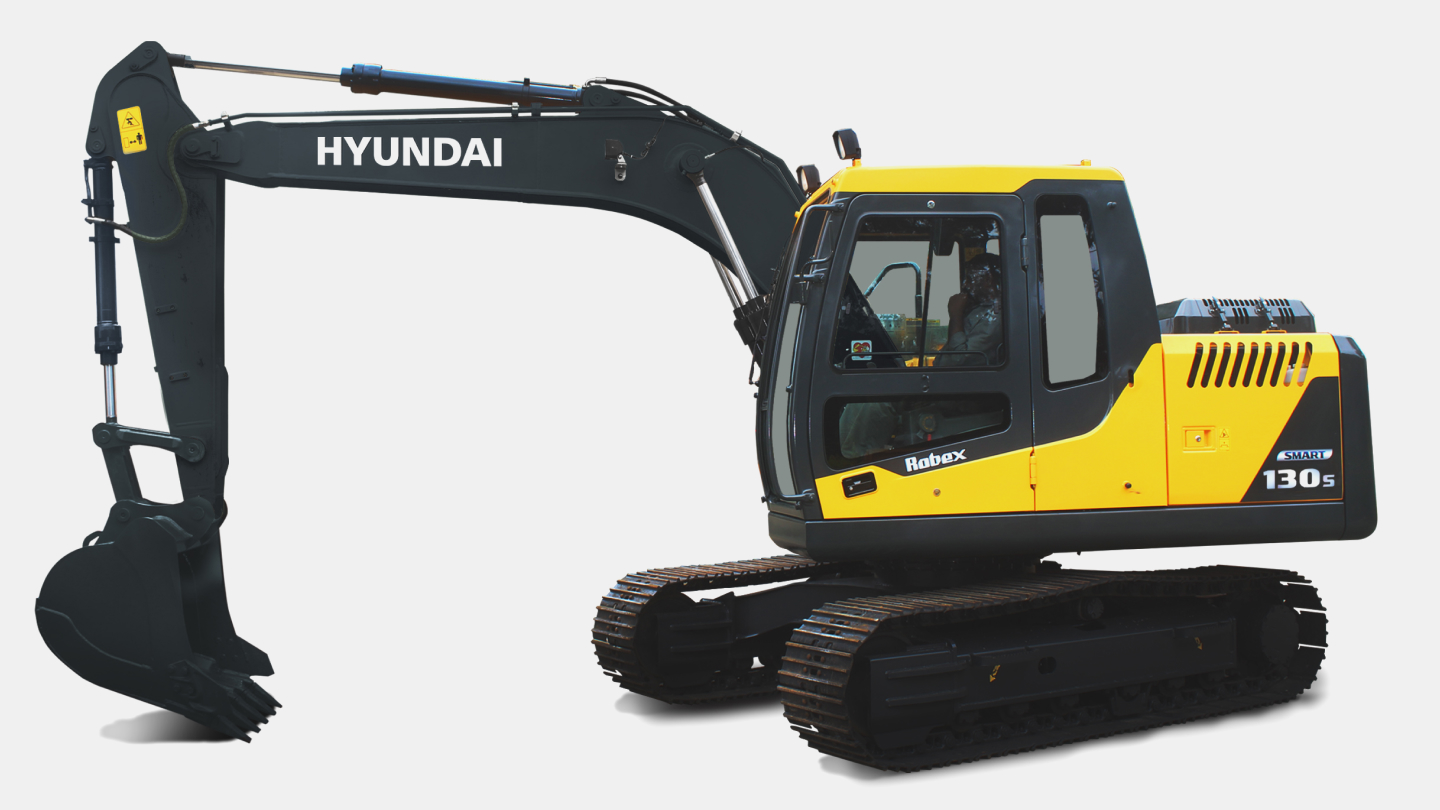

R130S
-
Type
Medium Excavators
-
Operating Weight
12.1 ton
-
Emission
N/A
-
Rated Power
94 hp / 1,950 rpm
- Catalog
Specifications
-
General
Type
Medium Excavators
Operating Weight
12.1 ton
Bucket Capacity
0.65 m³0.45 / 0.65 m³
-
Engine
Emission
N/A
Engine model
HYUNDAI HM4.2
Rated Power
94 hp / 1,950 rpm
Max. Torque
36.5 kgf·m / 1,550 rpm
-
Hydraulic System
Main Pumps Rated Flow
2 x 112 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
250 ℓ
-
Performance
Swing Speed
12 rpm
Max. Traction Force
10,400 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
9,200 kgf
Arm Digging Force (ISO)
5,920 kgf
-
Dimensions
Overall Length
7,270 mm
Overall Width
2,490 mm
Overall Height
2,720 mm
Tail Swing Radius
2,130 mm
Tumbler Distance
2,610 mm
Ground Clearance
440 mm
-
Operating Range
Boom Length
4,300 mm
Arm Length
2,260 mm
Max. Digging Reach
7,740 mm
Max. Digging Depth
5,090 mm
Max. Digging Height
8,070 mm
Max. Dumping Height
5,710 mm
Min. Swing Radius
2,380 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
