Excavators

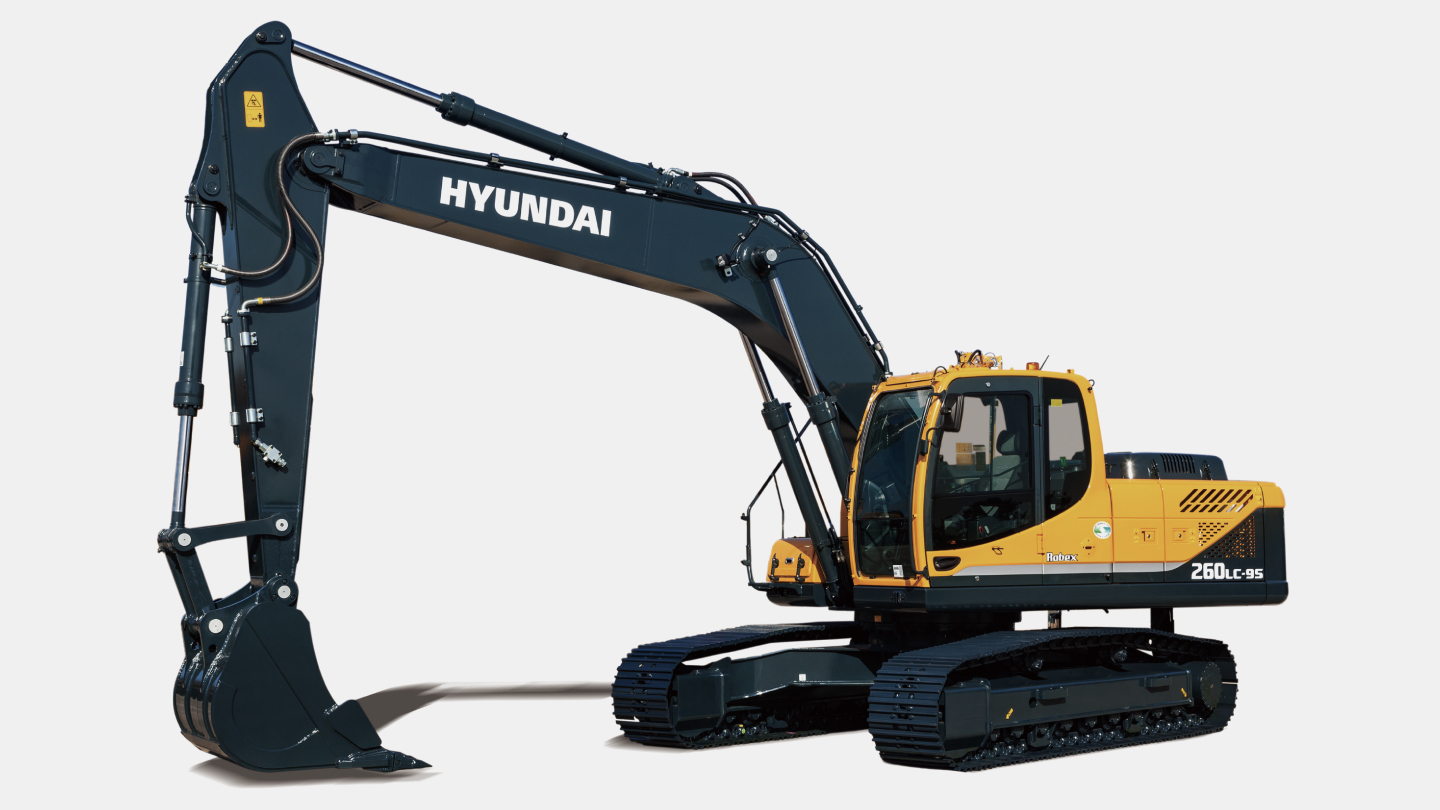

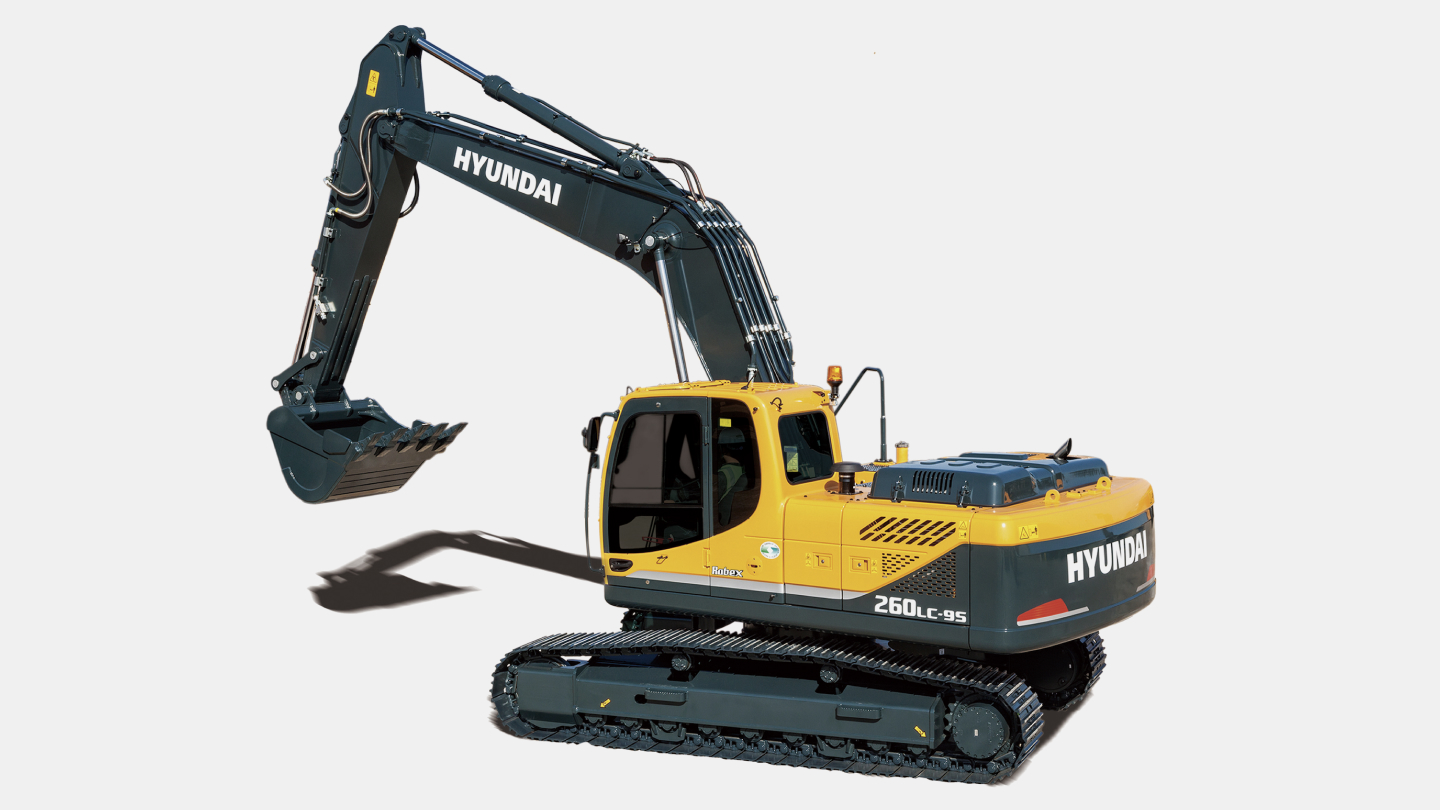

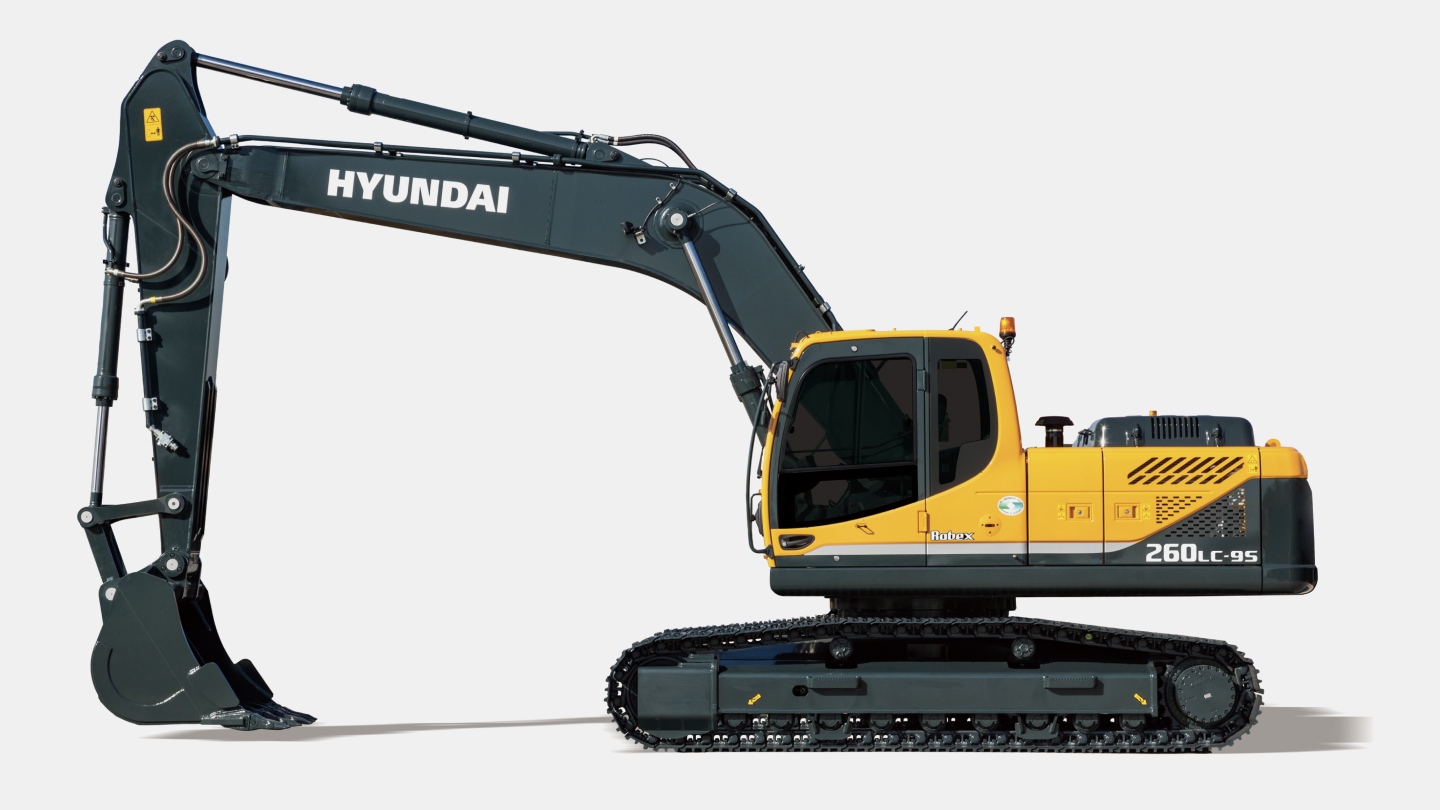

R260LC-9S (CIS)
-
Type
Medium Excavators
-
Operating Weight
25.2 ton
-
Emission
TIER 2
-
Rated Power
158 hp / 2,000 rpm
- Catalog
Specifications
-
General
Type
Medium Excavators
Operating Weight
25.2 ton
Bucket Capacity
1.08 m³
-
Engine
Emission
TIER 2
Engine model
HYUNDAI HM5.9
Rated Power
158 hp / 2,000 rpm
Max. Torque
72.2 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2 X 228 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
400.0 ℓ
Hydraulic Tank
165.0 ℓ
DEF/ ADBLUE Tank
-
-
Performance
Swing Speed
12.5 rpm
Travel Speed
5.8 km/h
Max. Traction Force
21,600 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
178.5 kgf
Arm Digging Force (ISO)
139.3 kgf
-
Dimensions
Overall Length
10,050 mm
Overall Width
3,200 mm
Overall Height
3,530 mm
Tail Swing Radius
2,975 mm
Tumbler Distance
3,835 mm
Ground Clearance
765 mm
-
Operating Range
Boom Length
5,850 mm
Arm Length
2,100 mm
Max. Digging Reach
9,550 mm
Max. Digging Depth
605 mm
Max. Digging Height
9,450 mm
Max. Dumping Height
6,360 mm
Min. Swing Radius
4,420 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
