Excavators

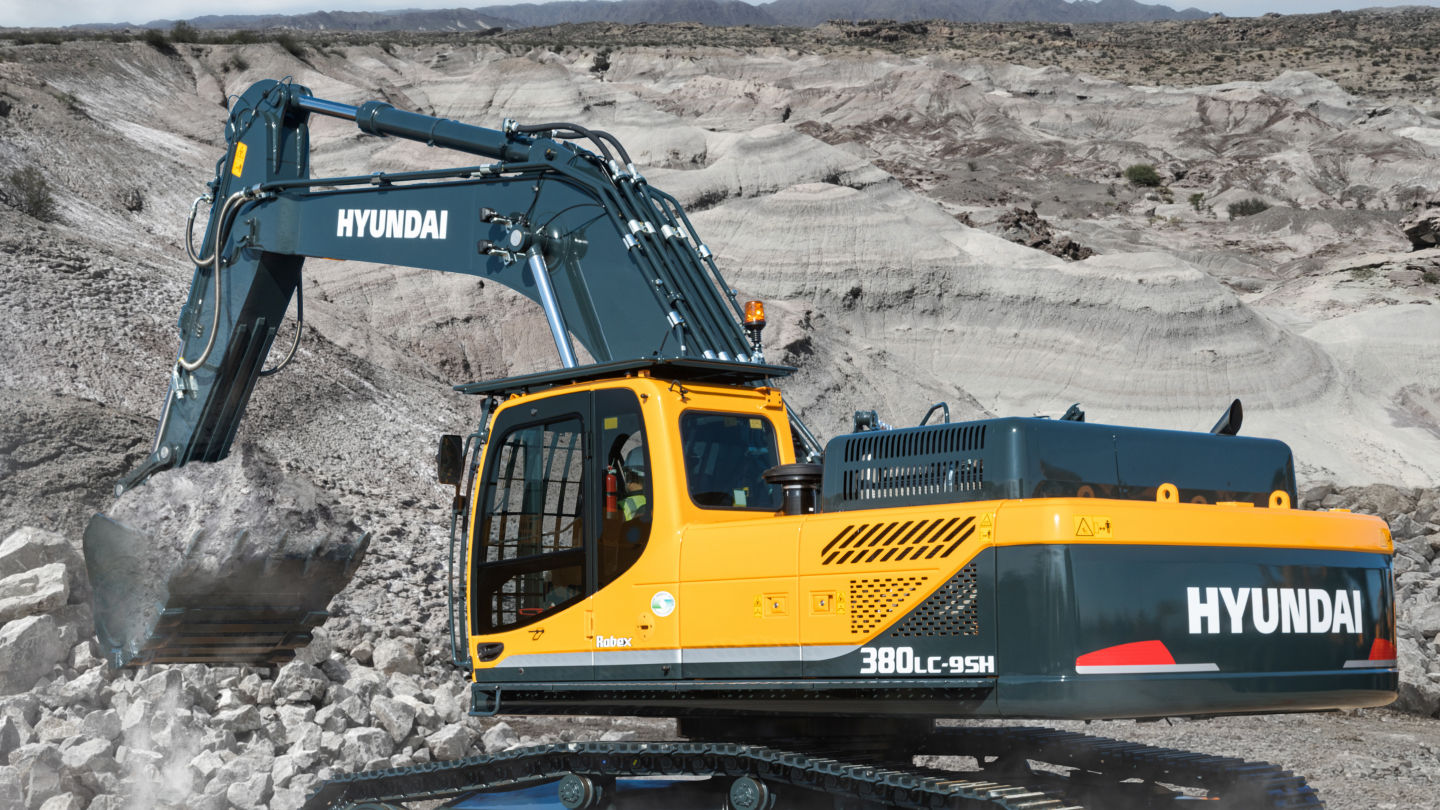

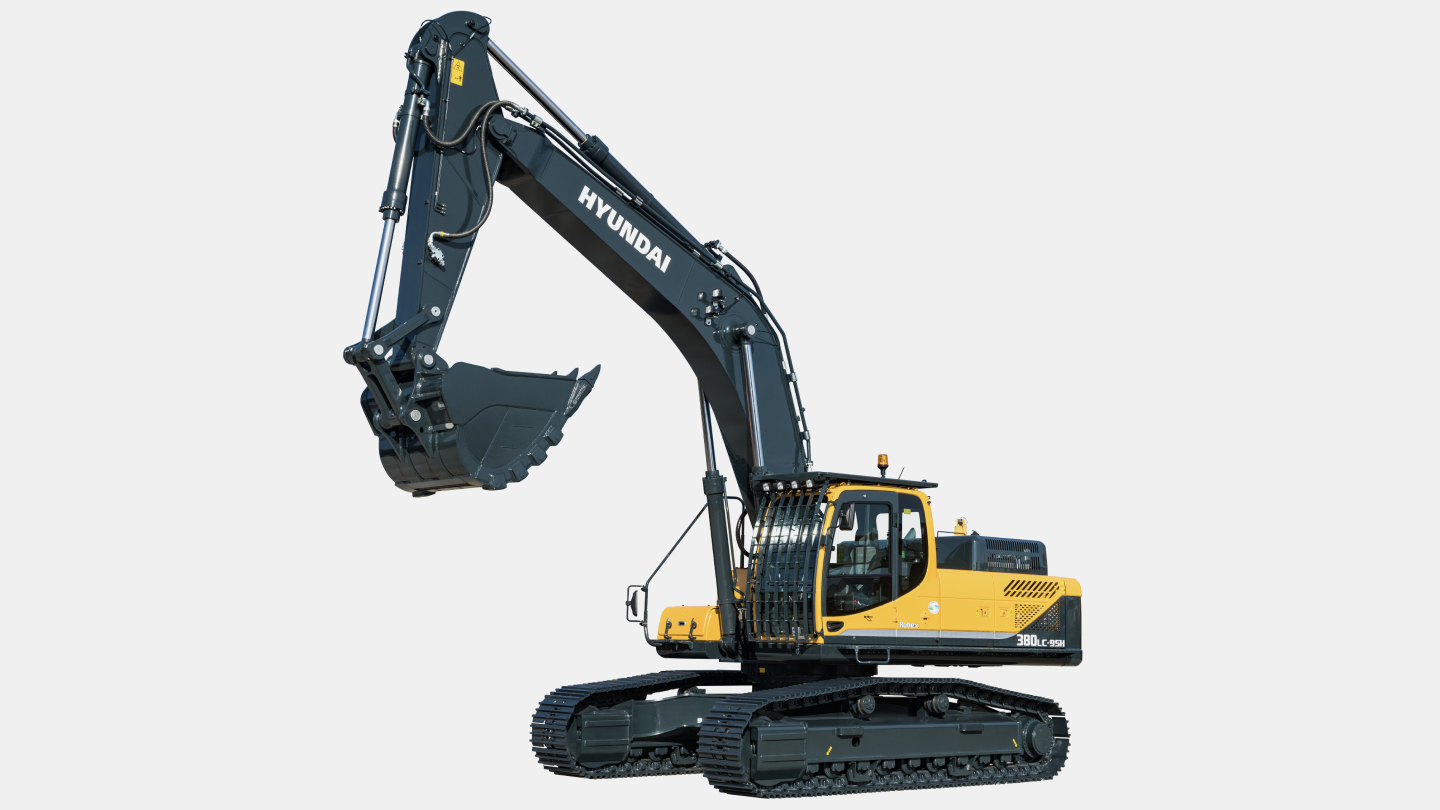

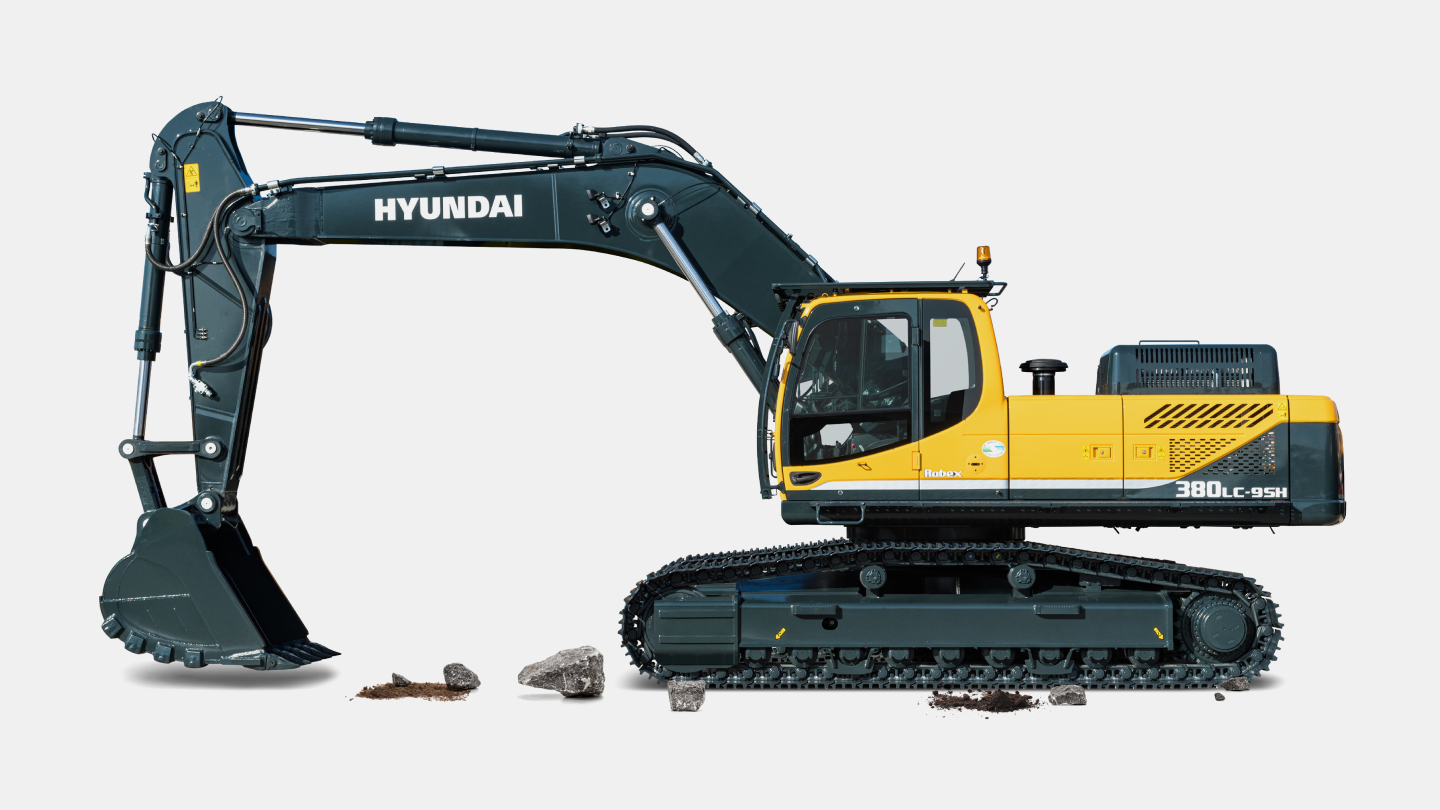

R380LC-9SH
-
Type
Large Excavators
-
Operating Weight
38.45 ton
-
Emission
TIER 2
-
Rated Power
276 hp / 1,900 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
38.45 ton
Bucket Capacity
1.62 m³
-
Engine
Emission
TIER 2
Engine model
HYUNDAI D6AC-C
Rated Power
276 hp / 1,900 rpm
Max. Torque
120 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x280 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
550 ℓ
Hydraulic Tank
210 ℓ
-
Performance
Swing Speed
10 rpm
Travel Speed
5 km/h
Max. Traction Force
32,000 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
25,420 kgf
Arm Digging Force (ISO)
17,450 kgf
-
Dimensions
Overall Length
11,120 mm
Overall Width
3,340 mm
Overall Height
3,450 mm
Tail Swing Radius
3,425 mm
Tumbler Distance
4,340 mm
Ground Clearance
550 mm
-
Operating Range
Boom Length
6,500 mm
Arm Length
3,200 mm
Max. Digging Reach
11,250 mm
Max. Digging Depth
7,520 mm
Max. Digging Height
10,570 mm
Max. Dumping Height
7,410 mm
Min. Swing Radius
4,450 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
