Excavators

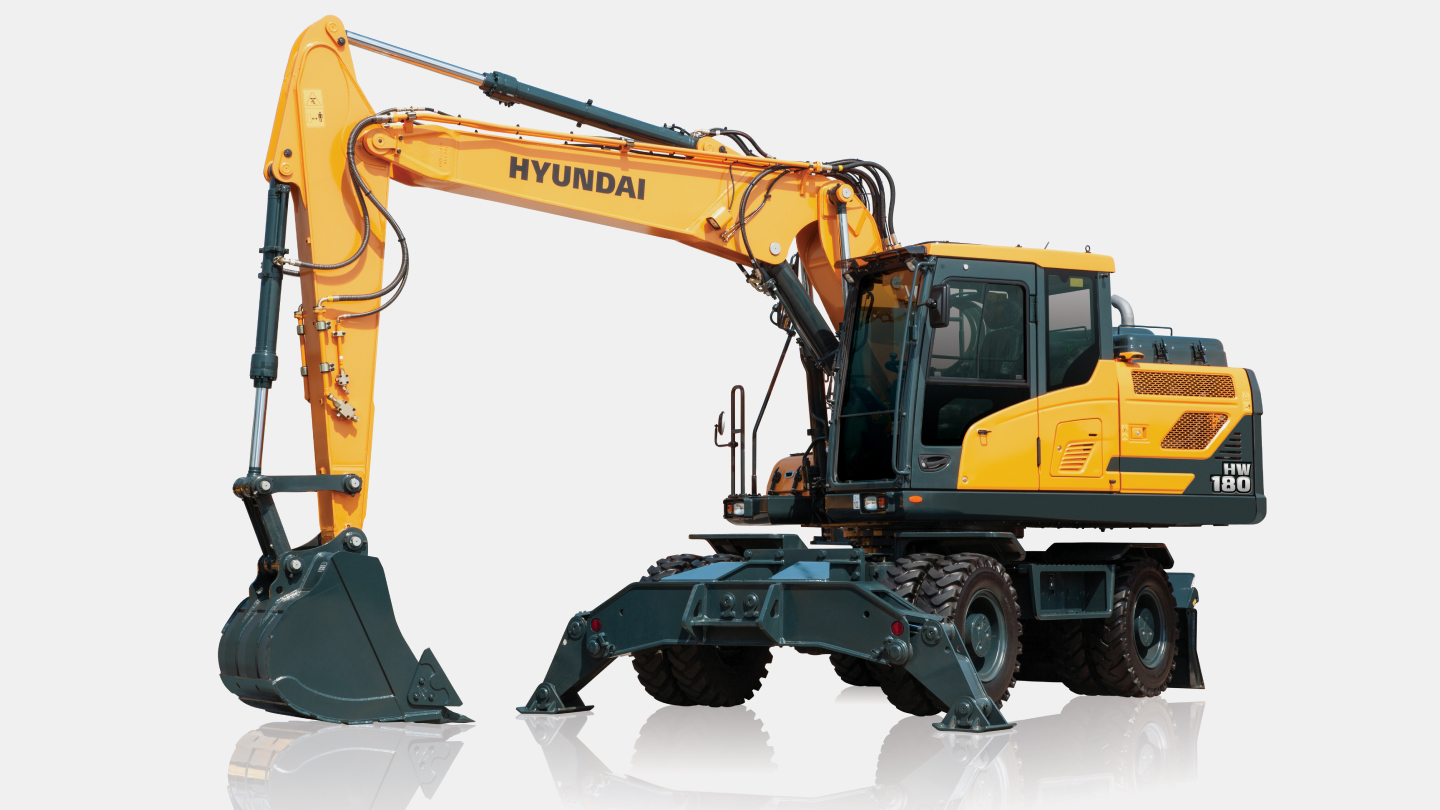

HW180
-
Type
Wheel Excavators
-
Operating Weight
17.8 ton
-
Emission
TIER 4
-
Rated Power
180 hp / 1,800 rpm
- Catalog
Specifications
-
General
Type
Wheel Excavators
Operating Weight
17.8 ton
Bucket Capacity
0.76 m³
-
Engine
Emission
TIER 4
Engine model
CUMMINS QSB 6.7
Rated Power
180 hp / 1,800 rpm
Max. Torque
85.7 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x172 ℓ/min
Implement Circuit
350 kgf/cm²[380]kgf/c㎡
-
Tank Capacity
Fuel Tank
290 ℓ
Hydraulic Tank
125 ℓ
DEF/ ADBLUE Tank
27 ℓ
-
Performance
Swing Speed
9.3 rpm
Travel Speed
35 km/h
Max. Traction Force
10,320 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
12,550 kgf
Arm Digging Force (ISO)
7,650 kgf
-
Dimensions
Overall Length
8,760 mm
Overall Width
2,530 mm
Overall Height
3,540 mm
-
Operating Range
Boom Length
5,200 mm
Arm Length
2,600 mm
Max. Digging Reach
9,200 mm
Max. Digging Depth
5,900 mm
Max. Digging Height
9,300 mm
Max. Dumping Height
6,660 mm
Min. Swing Radius
3,230 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
