Excavators

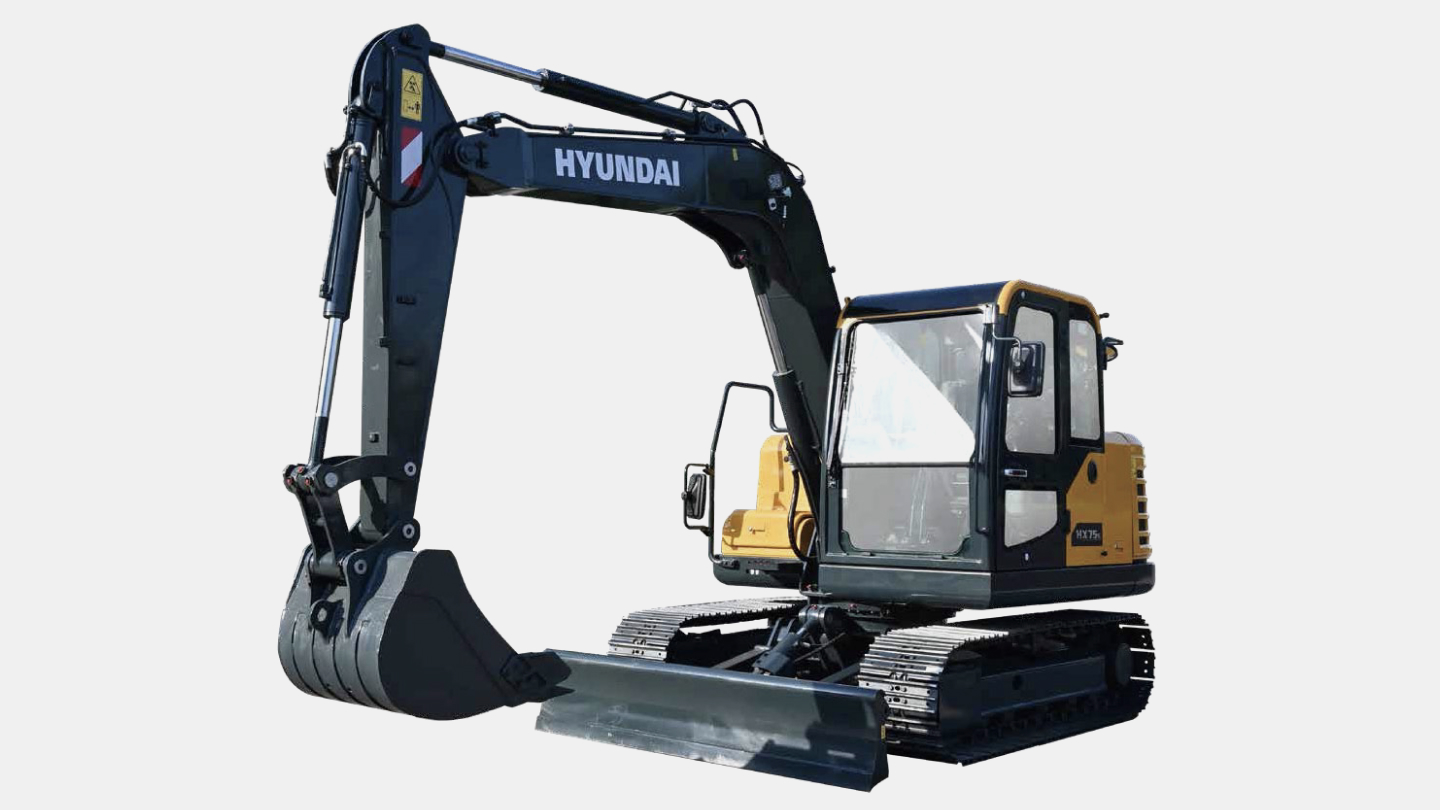

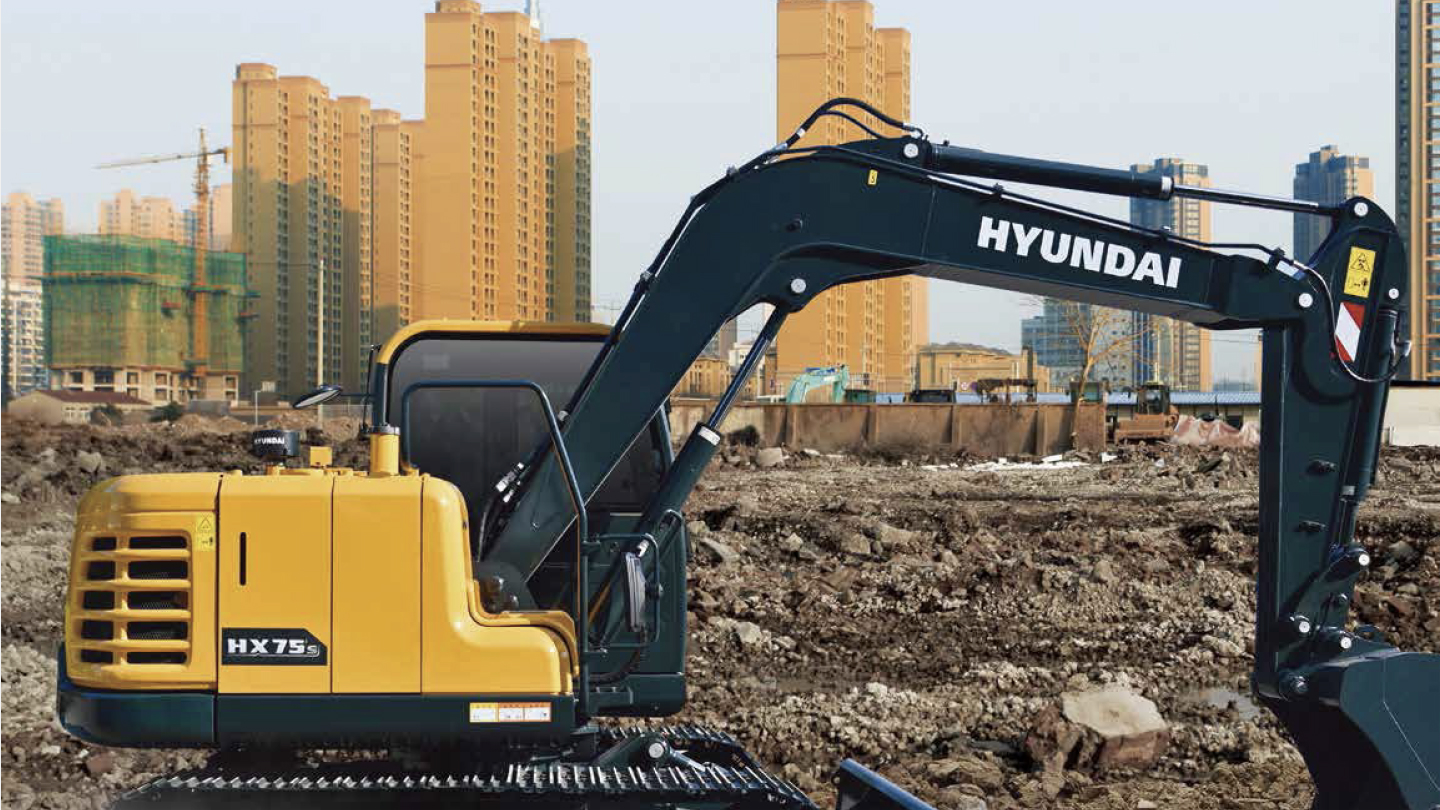

HX75S
-
Type
Compact Excavators
-
Operating Weight
7.42 ton
-
Emission
N/A
-
Rated Power
59.5 hp / 2,100 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
7.42 ton
Bucket Capacity
0.32 m³
-
Engine
Emission
N/A
Engine model
4TNV98-Z
Rated Power
59.5 hp / 2,100 rpm
Max. Torque
24.2 kgf·m / 1,575 rpm
-
Hydraulic System
Main Pumps Rated Flow
158 ℓ/min
Implement Circuit
280 kgf/cm²
-
Tank Capacity
Fuel Tank
140 ℓ
Hydraulic Tank
75 ℓ
-
Performance
Swing Speed
10.9 rpm
Travel Speed
2.4 km/h
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
5,700 kgf
Arm Digging Force (ISO)
4,477 kgf
-
Dimensions
Overall Length
6,080 mm
Overall Width
2,260 mm
Overall Height
2,690 mm
Tail Swing Radius
1,750 mm
-
Operating Range
Boom Length
3,700 mm
Arm Length
1,670 mm
Max. Digging Reach
6,335 mm
Max. Digging Depth
4,015 mm
Max. Digging Height
7,175 mm
Max. Dumping Height
5,080 mm
Min. Swing Radius
1,750 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
