Excavators

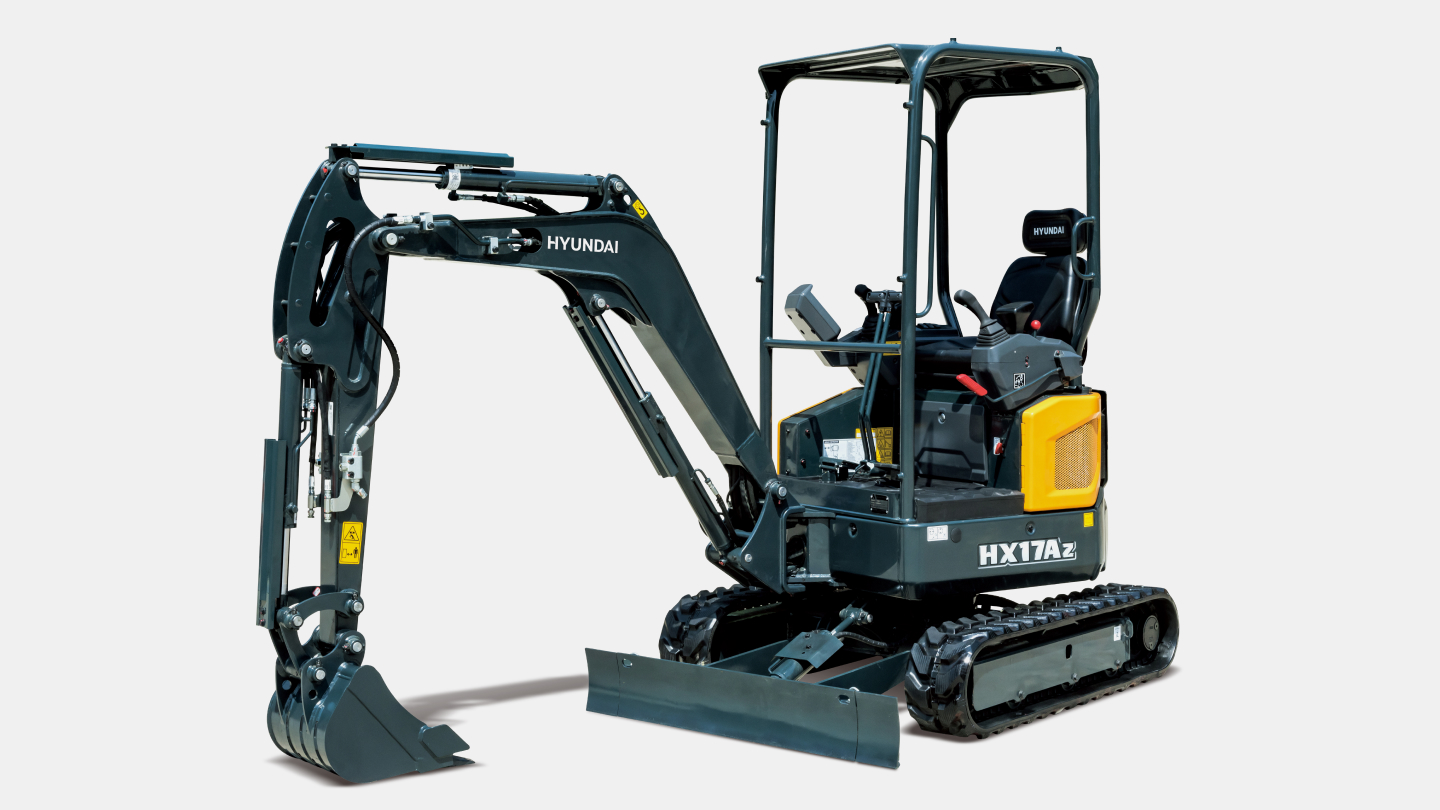

HX17AZ
-
Type
Compact Excavators
-
Operating Weight
1.850 ton
-
Emission
STAGE V
-
Rated Power
16.7 hp / 2,400 rpm
- English Catalog French Catalog
3D View
This 3D image is for illustrative purposes only and may not represent the actual product.
Specifications
-
General
Type
Compact Excavators
Operating Weight
1.850 ton
Bucket Capacity
0.04 m³
-
Engine
Emission
STAGE V
Engine model
D902
Rated Power
16.7 hp / 2,400 rpm
Max. Torque
5.5677 kgf·m / - rpm
-
Hydraulic System
Main Pumps Rated Flow
2 x 17.3(4.5) + 10.4(2.7) ℓ/min
-
Tank Capacity
-
Performance
Swing Speed
9.2 rpm
Travel Speed
4.1 km/h
Max. Traction Force
1,420 kgf
Bucket Digging Force (ISO)
1,664 kgf
Arm Digging Force (ISO)
933 kgf
-
Dimensions
Overall Length
3,531 mm
Overall Width
994~1290 mm
Overall Height
2,320 mm
Ground Clearance
150 mm
-
Operating Range
Boom Length
1.75 mm
Arm Length
1.03 mm
Max. Digging Reach
3,910 mm
Max. Digging Depth
2,240 mm
Max. Digging Height
3,730 mm
Max. Dumping Height
2,670 mm
Min. Swing Radius
1,580 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
